EU-Hiboost
Antenna omnidirezionale per interni
Antenna omnidirezionale per interni
- Leggero e facile da installare
- Progettato per uso interno
- Progettazione di livello carrier
L'antenna omnidirezionale per interni è progettata per diffondere il segnale potenziato all'interno e supporta i sistemi 2G/3G/4G e WLAN per GSM, DCS, UMTS, LTE.
Condividere

Extend Your Coverage

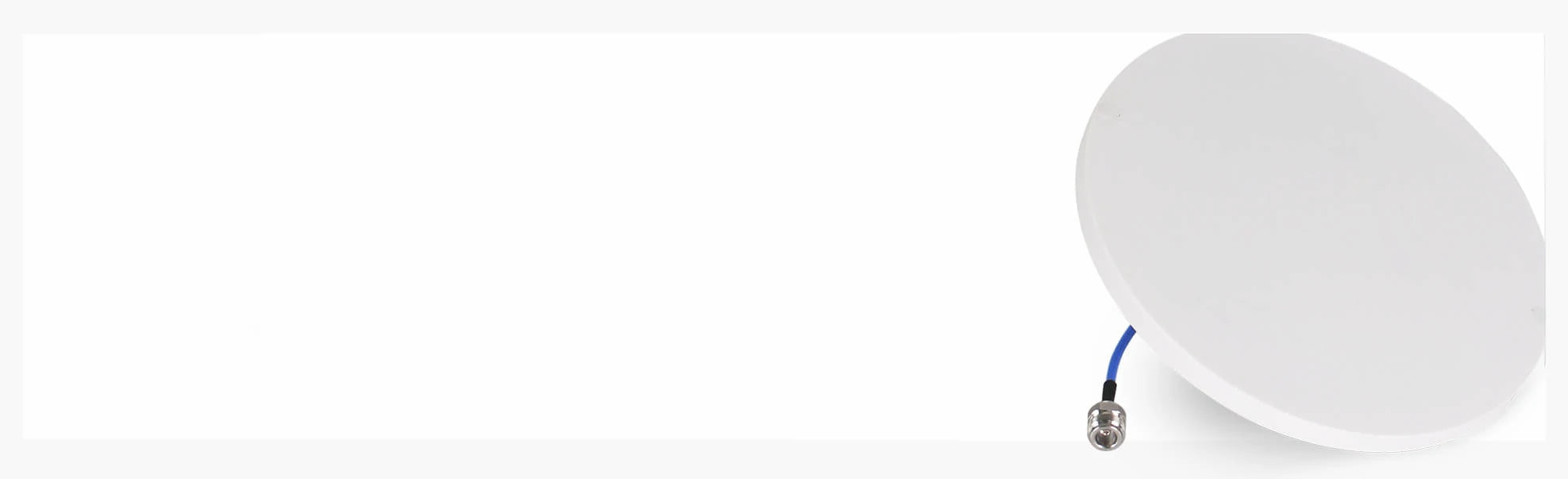

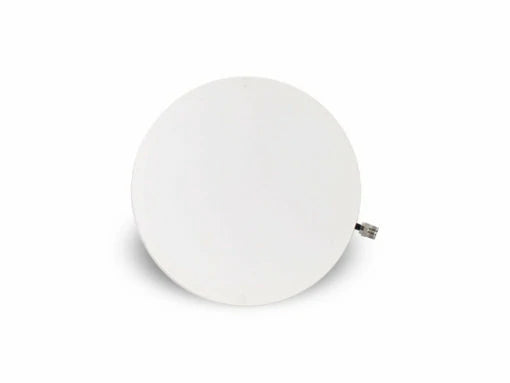

This full band dome antenna is used to spread the amplified 2G/ 3G/ 4G signal throughout the indoor area. It can also support 5G frequencies.
The antenna is mounted on the ceiling and gets perfectly blended into any interior, so that you won’t even notice it. Since the antenna distributes cell phone signal with a 360 degree beam width, it should be fixed approximately in the middle of the desired place to get optimal coverage.
This omni antenna is compatible with all HiBoost cell phone signal boosters.

Antenna Key Features
- Coverage 698~960/1710~2700MHz Broad band
- Low return loss, stable performance
- Supplied with mounting clamp
- PIM<-140dBc @ 2×2 W
Tech Specs
- Frequency Range 698-806/806-960/1710-2700 MHz
- Gain 2.2±0.5/3.5±0.5/4.5±1.0 dBi
- Polarization Horizontal
- VSWR ≤ 1.5
- Input Impedance 50Ω
- PIM, 3rd Order, 2 x 2 W -140dBc
- Maximum Power 50 W
- Connection Type N-Female
- Weight 0.3 KG
- Dimension Φ220*18 mm
- Lighting Protection DC Ground
- Mounting Kit Ceiling, via hole (standard)
- Color White
- Operational Temperature -55~60℃
- Operation Humidity < 95%
