EU-Hiboost

Ciao10-5S

Ciao10-5S

Reti:EGSM 900, DCS 1800, 3G 2100, 4G LTE 800 e 2600
Copertura:Fino a 300 metri quadrati
Guadagno massimo:60 dB

  • Adatto per una piccola casa o ufficio
  • Leggero ed elegante
  • Approvato CE RED

    Il ripetitore di segnale mobile Hi10-5S è una soluzione efficiente per la scarsa ricezione in piccole abitazioni o uffici fino a 300 metri quadrati. Basta con le chiamate interrotte e le basse velocità di trasmissione dati, resta sempre connesso!
Visualizza dettagli completi

Stay Always Connected

Your struggle with poor reception is over! Hi10-5S mobile signal amplifier is a perfect signal solution for a small home or office.

Supporting 5 frequency bands at a time, the device delivers faster data speeds, endless streaming and clearer calls. It’s also compatible with all mobile operators in the EU and UK.

* Mind that in order to receive maximum signal inside your home/office, you should pick up at least 2-3 bars outside it. The repeater coverage area also depends on design features of your building.

Set-Up And Monitoring Via The Hiboost App

HiBoost is powered by a free HiBoost App, Signal Supervisor. Now you can control your device directly from your phone or tablet at any time from anywhere and benefit from much easier and more efficient installation.

  • Go through all installation steps with a comprehensive guide and find the best position for the outdoor antenna with a professional signal meter tool
  • Keep informed on booster performance status thanks to push notifications
  • Receive assistance online from competent tech experts

Download Signal Supervisor App From Google Play And App Store.

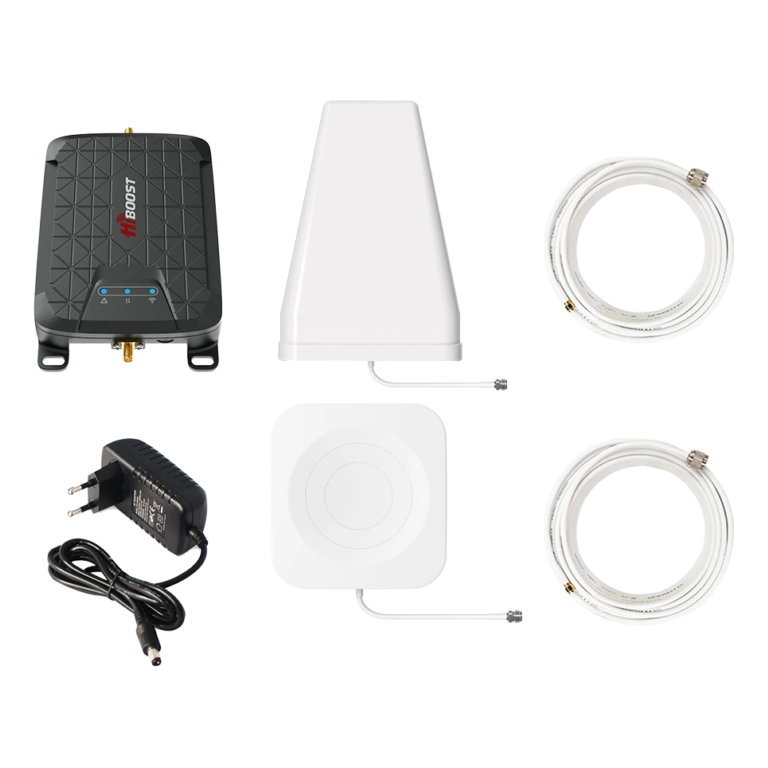

What Standard Kit Includes

HiBoost repeaters go in a full kit ready for installation. Hi10-5S model’s standard kit includes:

  • Mobile signal booster
  • Outdoor directional antenna
  • Indoor panel antenna
  • Two 30 ft (9.14m) low-loss HiBoost200 cables
  • 12V/ 3A, AC/DC power supply

You can add an extra indoor antenna to the kit to expand the coverage. However,  mind that it’s crucially important to have strong signal reception outside your house to make it work.

Powerful Network Protection

All HiBoost signal repeaters feature smart AGC function that guarantees smart auto setup according to the level of outdoor signal reception and protection of your operator’s network.
Automatic Gain Control (AGC)

The booster optimizes its performance according to the outdoor signal strength in your area. If the signal is too strong, the power of signal amplification automatically gets down. This completely avoids interference with your operator’s network and saves the booster from overload.

Self-Oscillation Detection

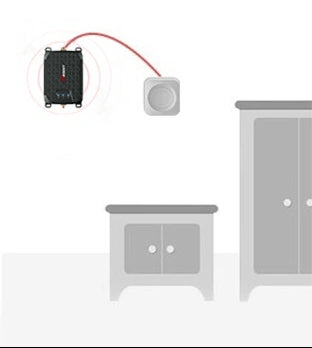

Self-oscillation can occur when the booster and antenna are installed too close to each other. The booster automatically detects the problem and reduces booster gain to fix the problem.

Officially Certified Product

HiBoost products have passed a series of rigorous tests before release. They are compliant with the international and EU health and safety regulations (CE RED 2014/53/EU, RoHS, ISO 9001:2023)

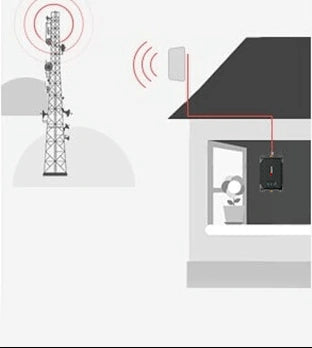

How It Works

1. The outdoor antenna picks up the signal from the nearest cell tower and sends it to the booster.

2. The booster amplifies or literally repeats the signal and transmits it to the indoor antenna.

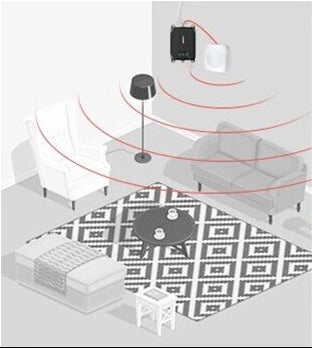

3. The indoor antenna spreads the enhanced the signal throughout the desired area.

4.This is the moment! Your mobile phone receives a strong signal and you enjoy seamless calls and data!

Tech Specs

  • Working Bands 800, 900, 1800, 2100, 2600 MHz
  • UL Frequency Range 832-862 / 880-915 / 1710-1785 / 1920-1980 / 2500-2570
  • DL Frequency Range 791-821 / 925-960 / 1805-1880 / 2110-2170 / 2620-2690
  • Supported Standards LTE800,EGSM,DCS,WCDMA,LTE2600
  • Maximum Gain Uplink 55 dB, Downlink 60 dB
  • Max. Output Power Uplink 16 dB, Downlink 10 dB
  • MGC (Step Attenuation) ≥ 31 db/ 1 db step
  • Intelligent AGC ALC ≥42dB ISO ≥42dB
  • Gain Flatness Typical≤5dB (p-p)
  • Noise Figure @ Max. System Gain Typical≤5dB
  • V.S.W.R Typical≤2
  • Group Delay ≤1μs
  • Frequency Stability ≤0.01ppm
  • Power Supply 5V/3A, AC/DC
  • Power Consumption ≤16W
  • Impedance 50 ohm
  • I/O port SMA-Female
  • Dimensions 153 mm×246 mm×36 mm/ 6 in×9.7 in ×1.4 inch
  • Booster Weight ≤1.76 lbs/0.8 KG
  • Booster Kit Weight 3 KG
  • Operating Temperature -10ºC~+55ºC
  • Storage Temperature -10ºC~+80ºC
  • Relative Humidity 5% – 95%
  • Barometric Pressure 55 kPa -106 kPa
  • Environment Condition IP40
