EU-Hiboost

2-Way Wilkinson Splitter

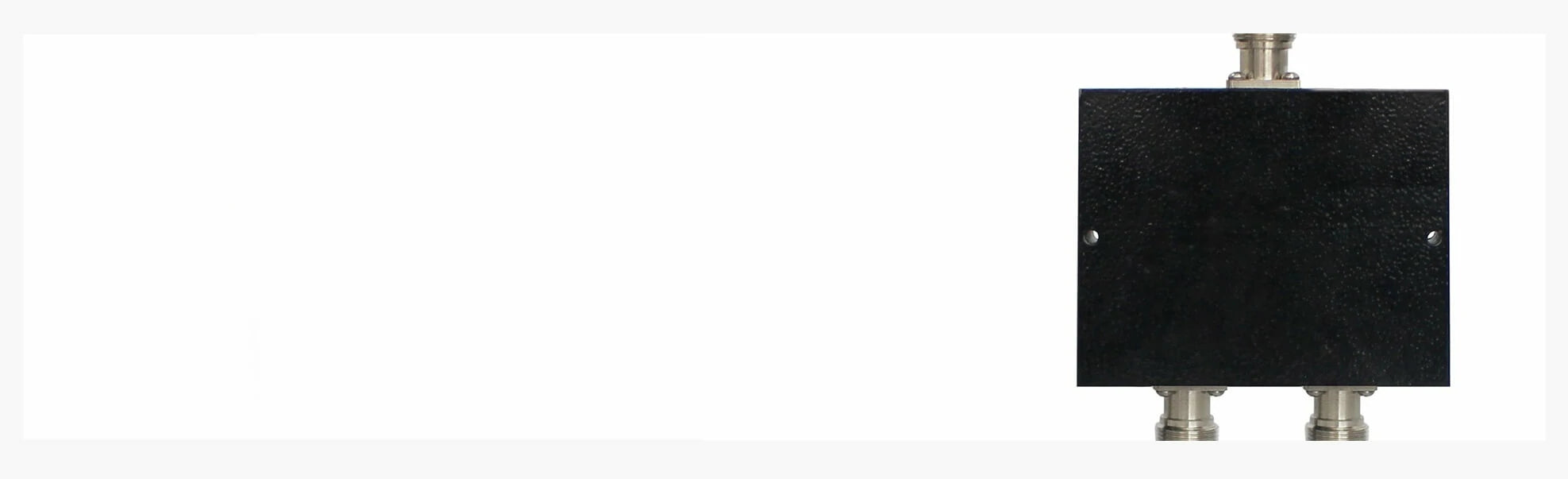

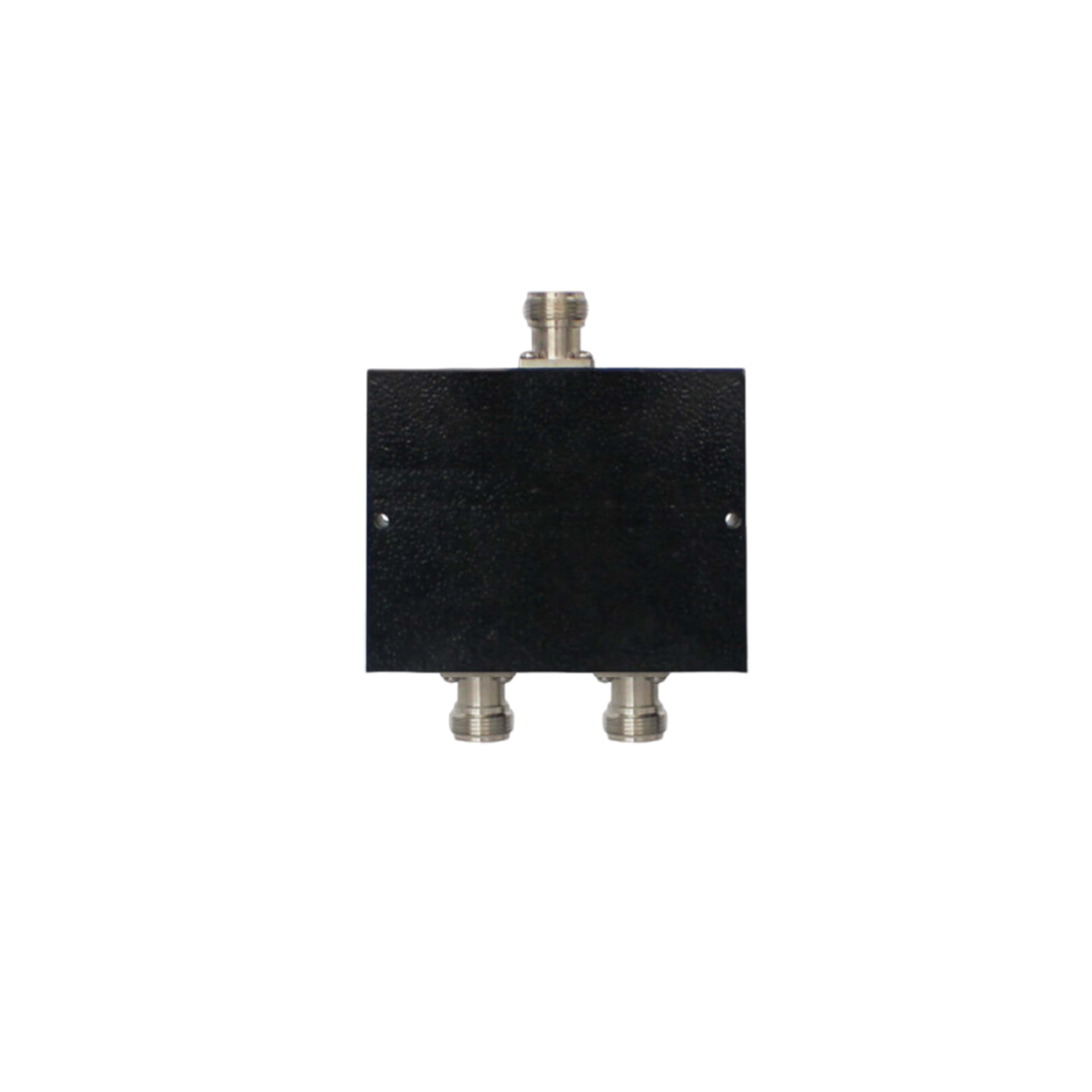

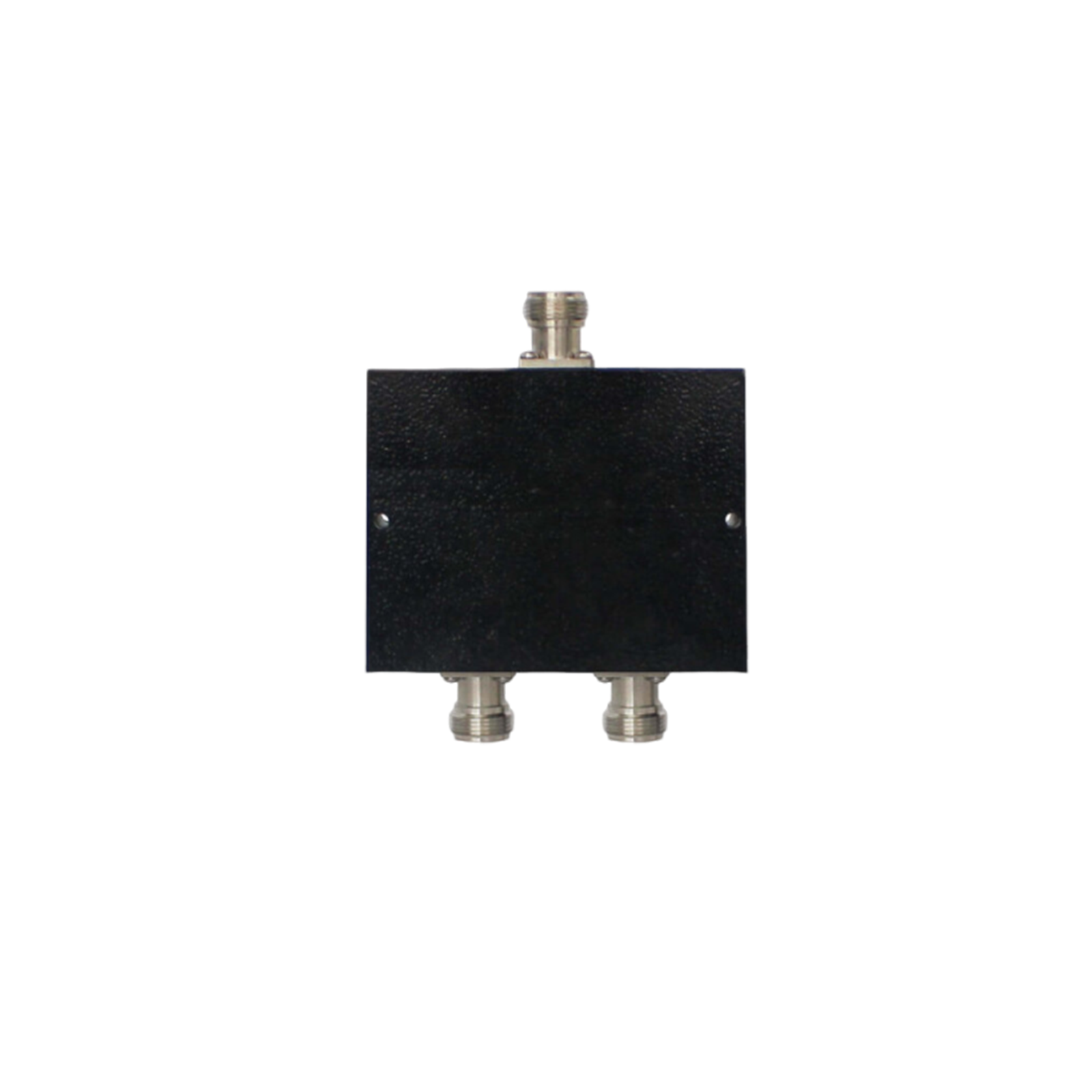

2-Way Wilkinson Splitter

  • 2-way splitter
  • Easy to install
  • Meets international standards

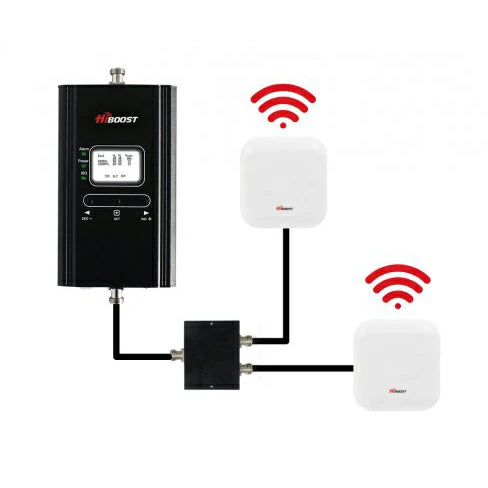

    This two-way wilkinson splitter allows 2 antennas to be used with a single mobile signal booster. Each indoor antenna has a loss of ⩽0.5 dB gain.
View full details

Add More Antennas

This two-way Wilkinson splitter allows 2 antennas to be used with a single mobile signal booster. Each indoor antenna has a loss of ⩽0.5 dB gain.

The splitter supports 2G, 3G and 4G at 698 to 2700 MHz frequency range.

The accessory is suitable for all HiBoost cell phone signal boosters.

Splitter Key Features

  • Full band 698-2700 MHz
  • Signal loss ⩽0.5 dB
  • Supports 2 antennas

Tech Specs

  • Frequency Range 698-2700 MHz
  • Insertion Loss ⩽ 0.5 dB
  • Input Impedance 50Ω
  • VSWR ≤ 1.3
  • Maximum Power 50 W
  • Connector Type N-Female
  • Weight 0.24 KG/0.53 lbs
  • Color Black
