EU-Hiboost

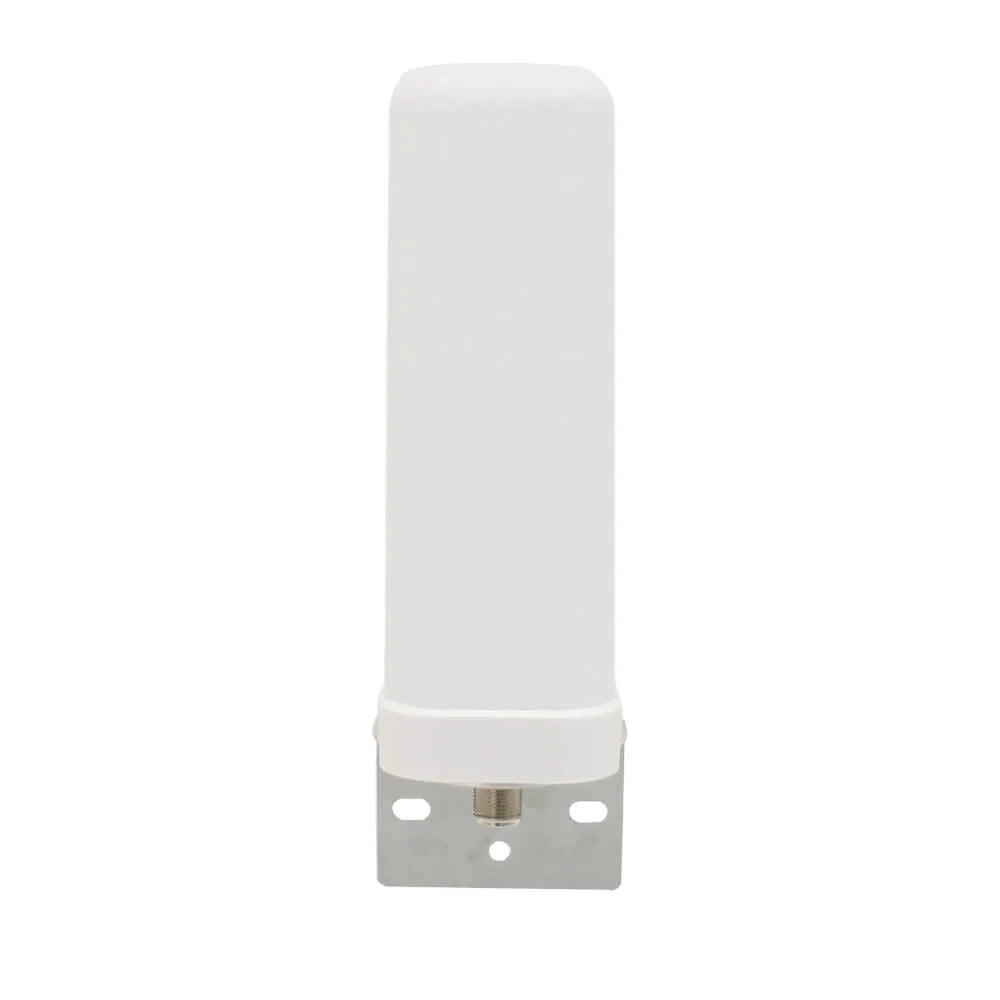

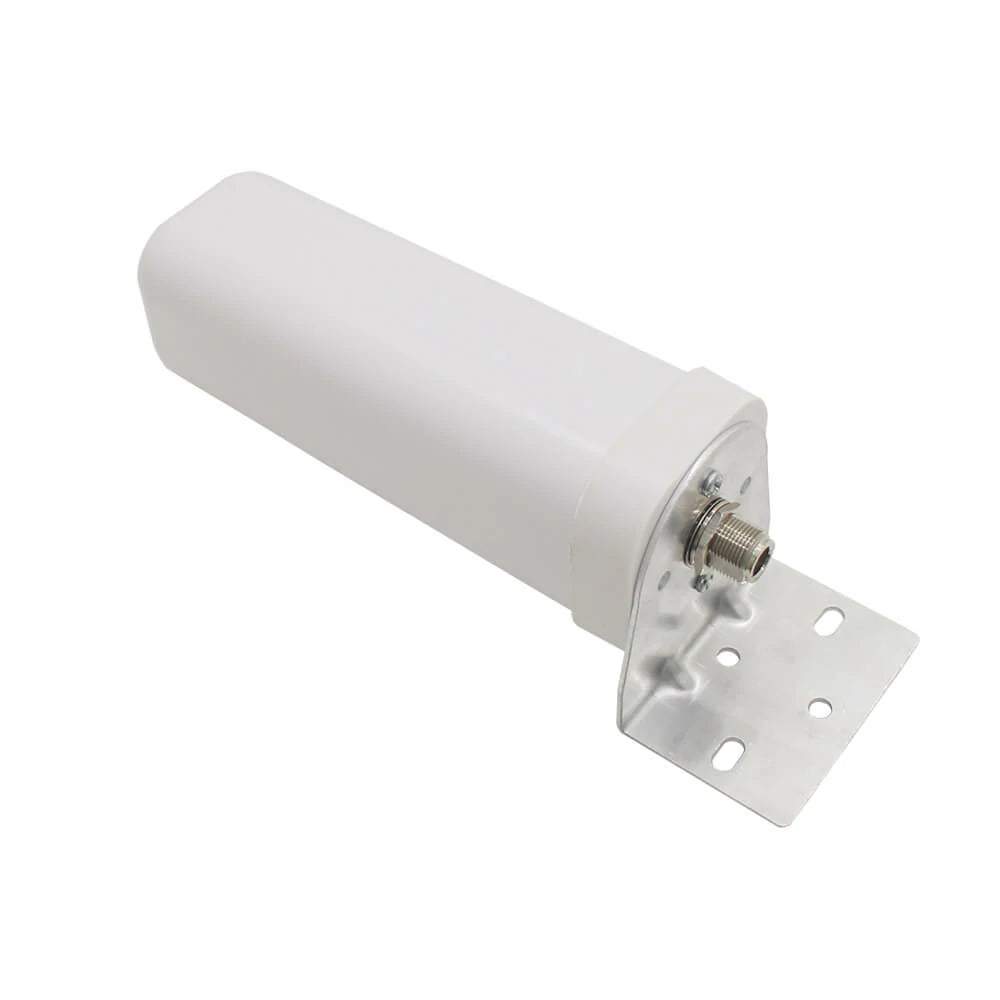

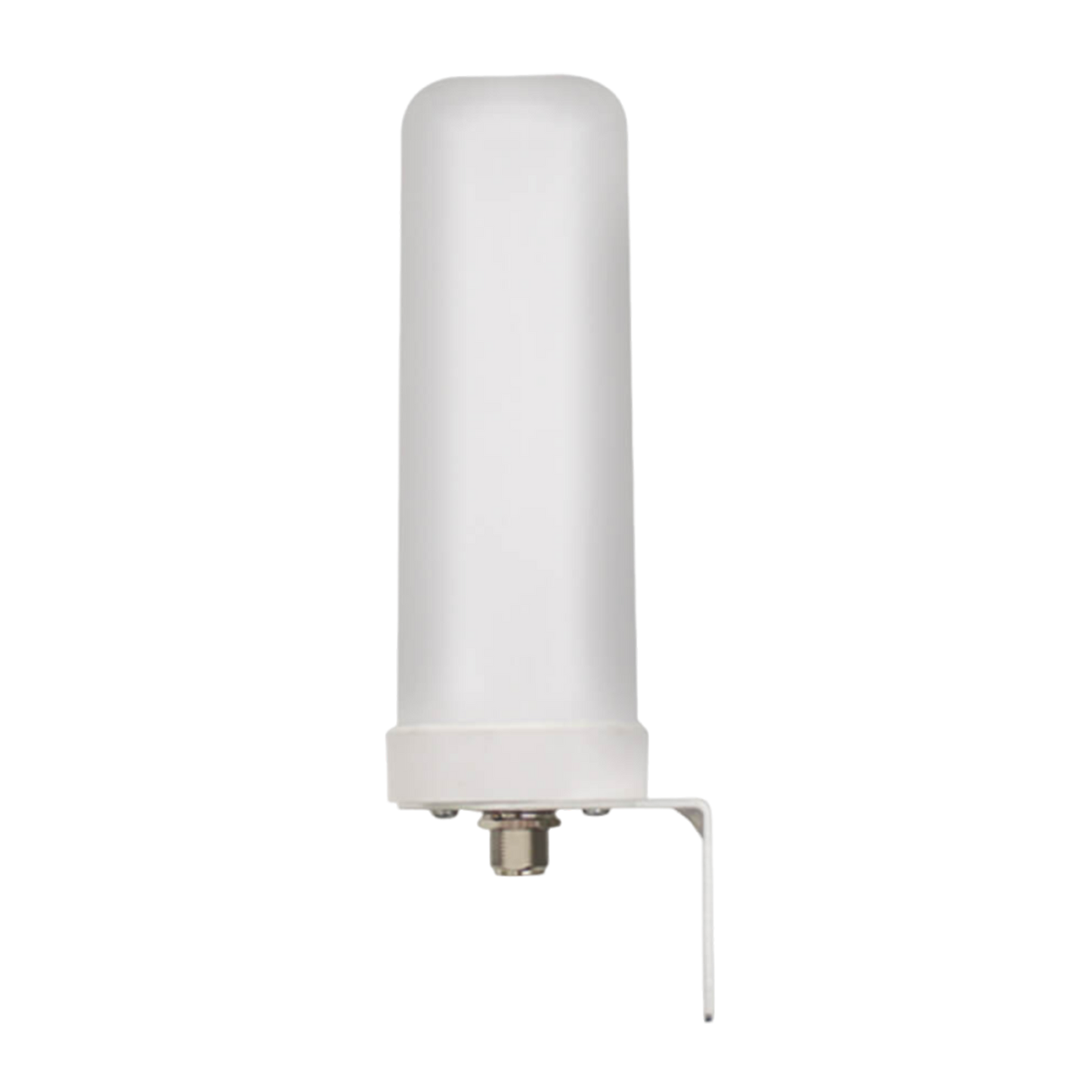

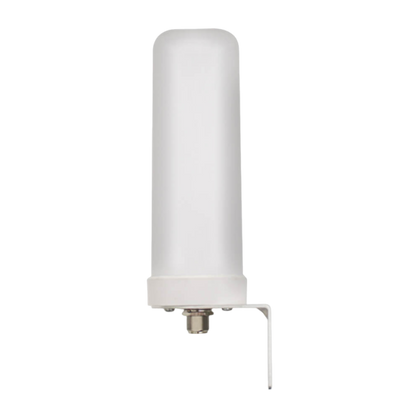

Outdoor Omni Antenna

Outdoor Omni Antenna

  • Weather resistant
  • Designed for outdoor use
  • Carrier grade design

    The outdoor omnidirectional antenna transmits and receives cell phone signal with 360 degree beam width from outdoors.
View full details

Pick up the Lowest Signal

This full band outdoor omni antenna is designed to receive signal from outdoors and supports 2G/3G/4G and WLAN systems for GSM, DCS, UMTS and LTE frequencies. The antenna transmits and picks up cell phone signal with a 360 degree beam width and does not need to be pointed towards a cell tower.

This omnidirectional antenna is compatible with all HiBoost cell phone signal boosters.

Antenna Key Features

  •  Full Band(698-2700MHz) Broadband
  •  Exquisite modern design
  •  Easy to install
  •  3/5dBi Gain

Tech Specs

  • Frequency Range 698-960/ 1710-2700 MHz
  • Gain 3 /5 dBi
  • Polarization Vertical
  • VSWR ≤ 1.8
  • Input Impedance 50Ω
  • Maximum Power 100 W
  • Connection Type N-Female
  • Weight 0.3 KG
  • Dimension Φ220*18 mm
  • Lighting Protection DC Ground
  • Color White
