EU-Hiboost

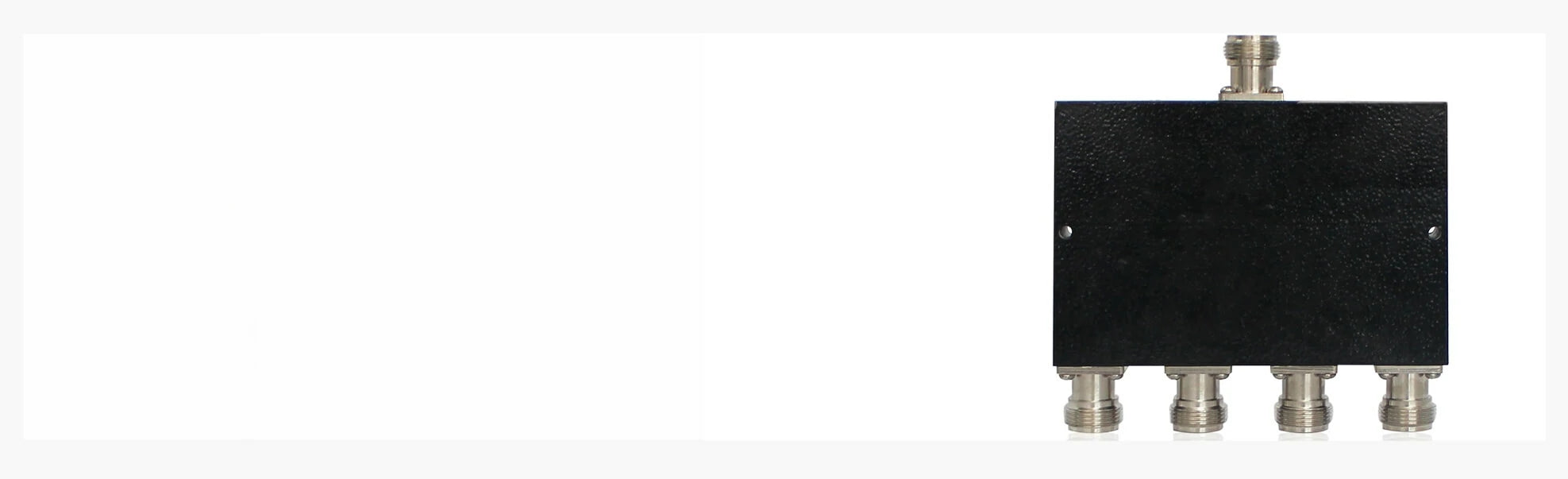

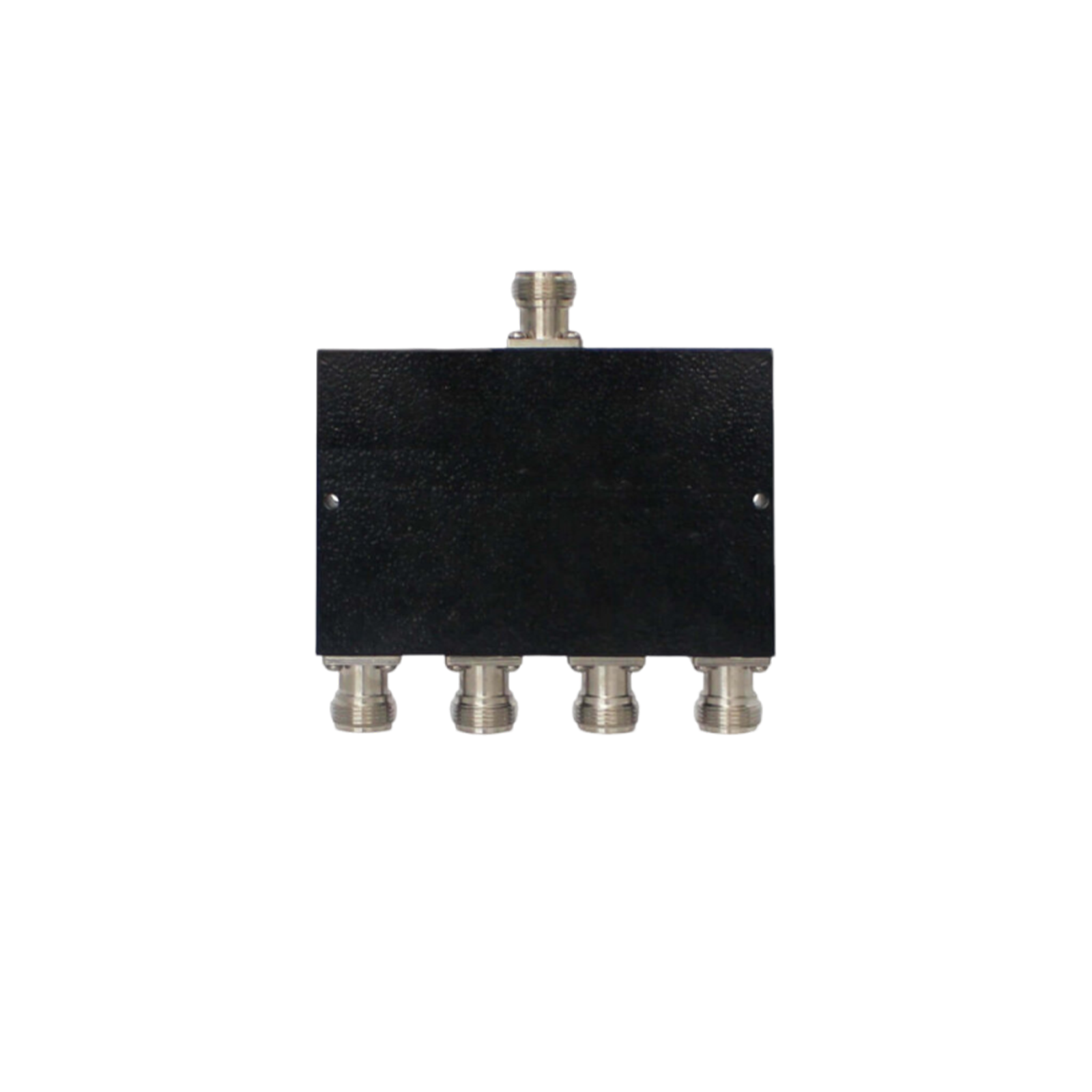

4-Way Wilkinson Splitter

4-Way Wilkinson Splitter

  • 4-way splitter
  • Easy to install
  • Carrier grade design

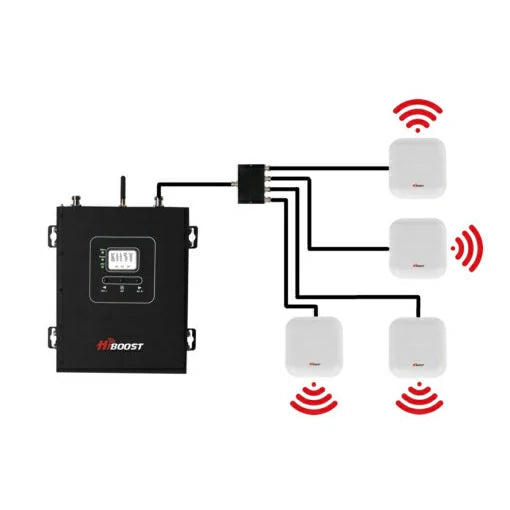

    This four-way wilkinson splitter allows 4 antennas to be used with a single mobile phone signal booster. Each indoor antenna has a loss of ⩽0.5 dB gain.
View full details

Add More Antennas

This four-way Wilkinson splitter allows 4 antennas to be used with a single booster for coverage expansion. Mind that each indoor antenna has a loss of ⩽0.5 dB gain.

The splitter supports 2G, 3G and 4G at 698 to 2700 MHz frequency range.

The accessory is suitable for all HiBoost mobile phone signal boosters.

Splitter Key Features

  •  Full band 698-2700 MHz
  •  Signal loss ⩽0.5 dB
  •  Supports 4 antennas
  •  Recommended for high-power PRO Series HiBoost repeaaters

Tech Specs

  • Frequency Range 698-2700 MHz
  • Insertion Loss ⩽ 0.5 dB
  • Input Impedance 50Ω
  • VSWR ≤ 1.4
  • Maximum Power 50 W
  • Connector Type N-Female
  • Weight 0.38 KG/0.84 lbs
  • Color Black
