EU-Hiboost

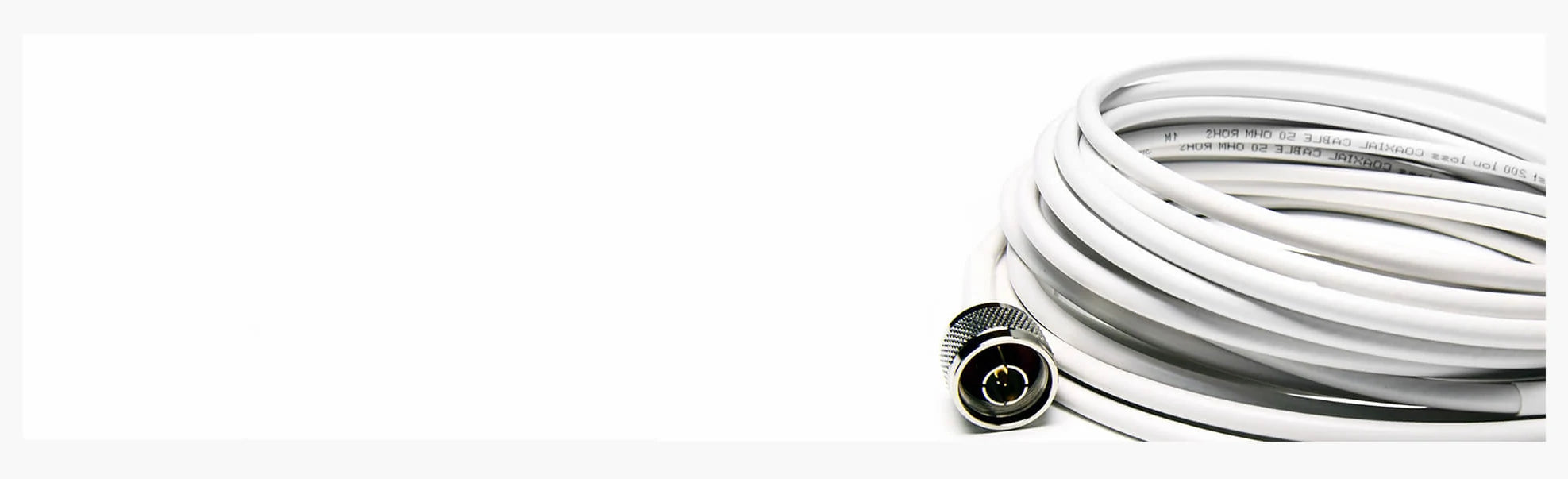

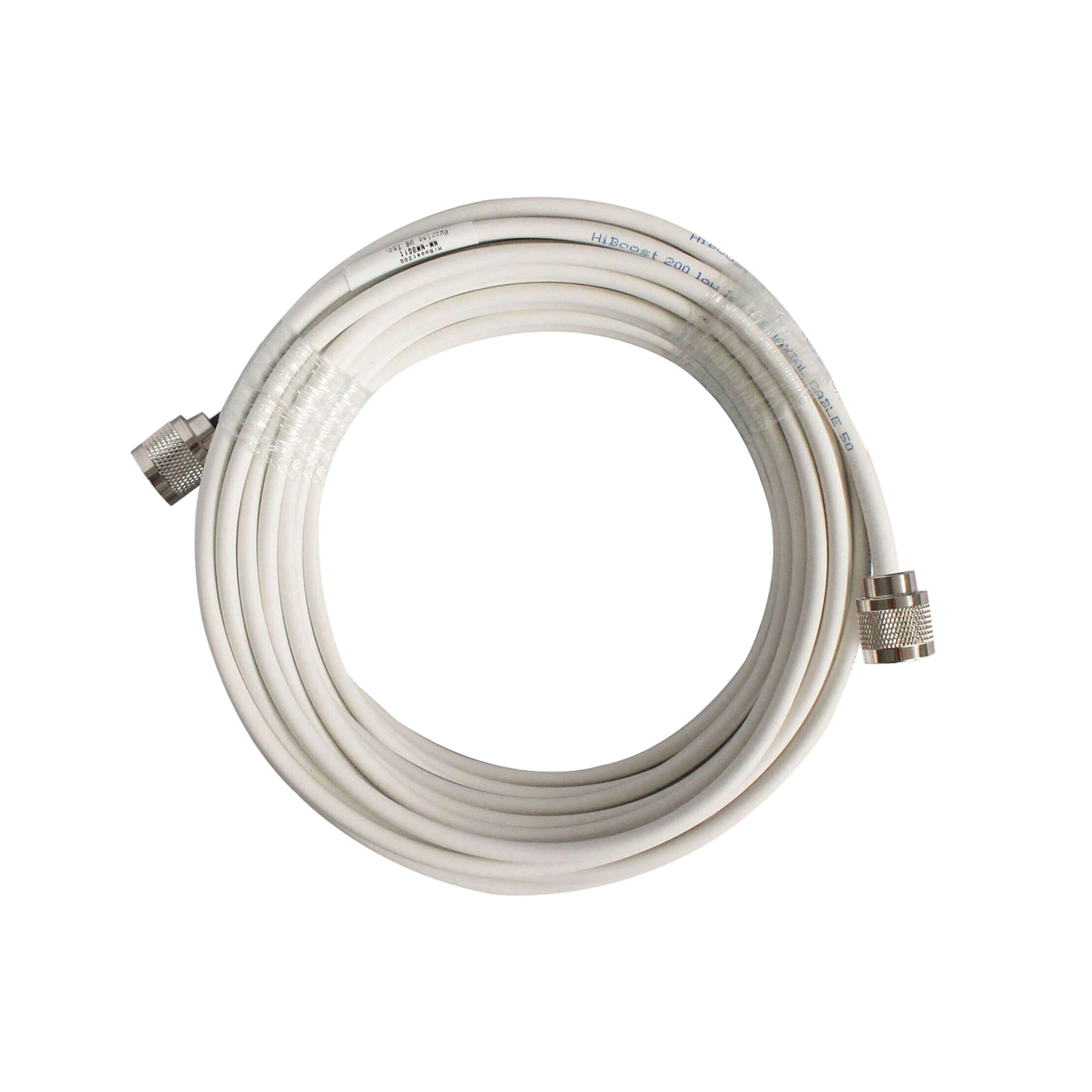

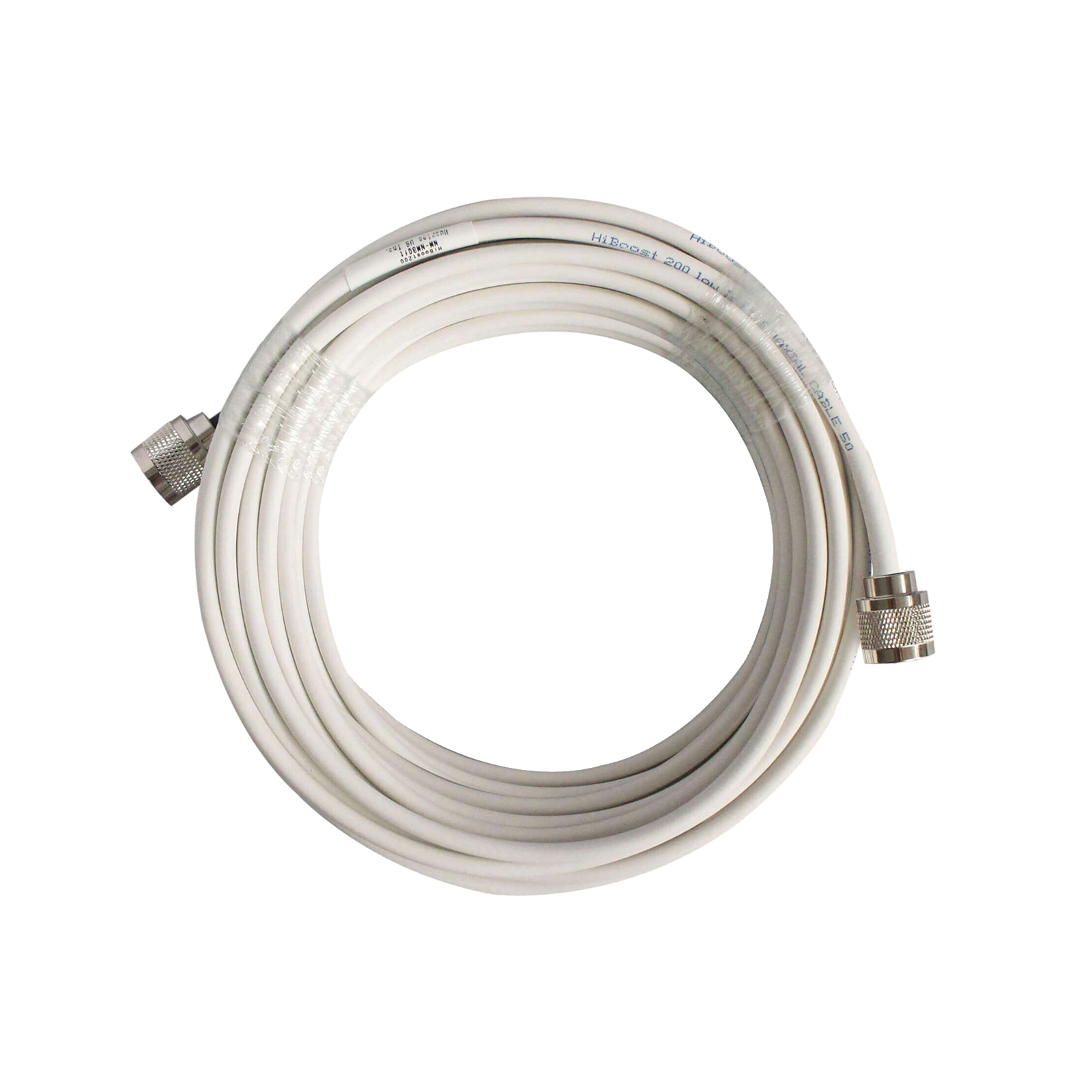

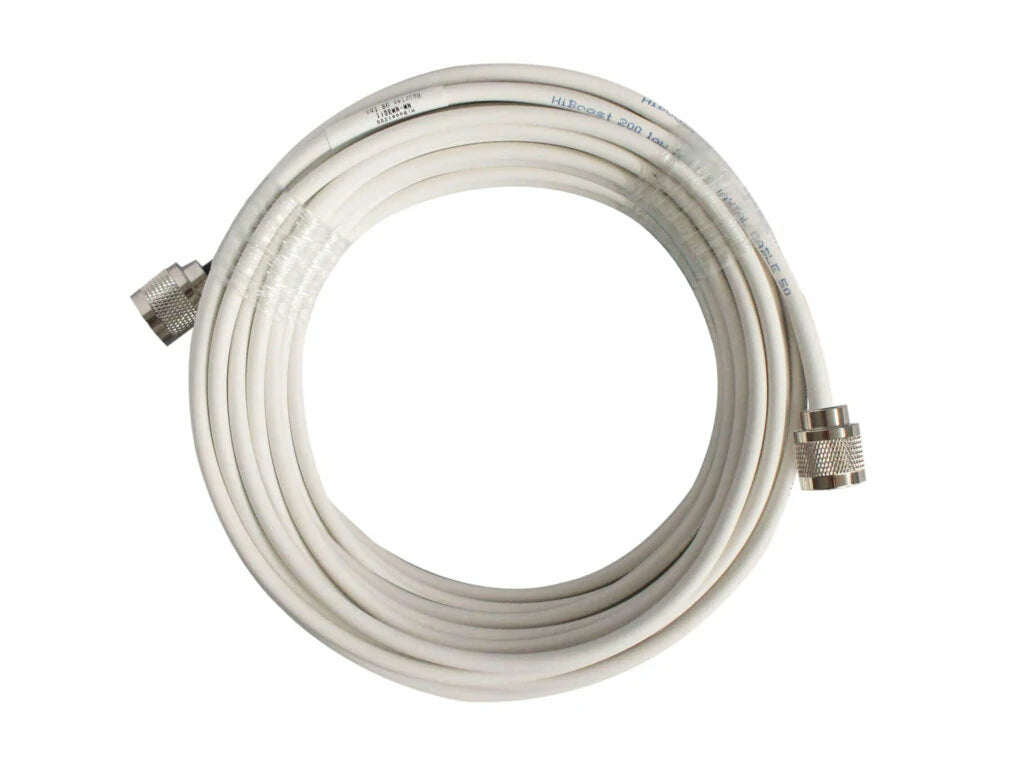

4.5m 3D-FB Coaxial Cable

4.5m 3D-FB Coaxial Cable

  • 4.5 m/ 15ft length
  • N-Male connectors
  • Frequency range 0-3 GHz

    15ft/4.5m 3D-FB is a low-loss cable with N-Male connectors on both ends compatible with all 50 ohm 2G, 3G and 4G signal amplifiers.
View full details

Maintain a Reliable System

50ft/15m HiBoost200 is a low-loss cable with standard carrier grade N-Male connectors on both ends. It is used to transmit radio frequency (RF) signal and is compatible with all 50 ohm amplifiers.

PLEASE NOTE: If you use a cable, which is longer than the one from your kit, mind that your booster can lose power and provide worse mobile signal amplification. Contact our Professional Tech Team before buying an additional cable.

Cable Key Features

  •  Low loss
  •  Light, flexible and weatherproof
  •  Low transmission delay
  •  Minimum attenuation

Tech Specs

  • Inner Conductor BC
  • Conduct Dia. 1.02+/-0.02mm
  • Min. Break Strength 450N
  • Insulation Foam P.E
  • Insulation Dia. 2.95+/-0.15mm
  • Color White
  • Centricity ≥85%
  • Adhesion 10 to 100N@25mm
  • Shielding AL/P-Foil(Bonded)
  • Foil overlap ≥120%
  • Outer conductor TC Wire Braid
  • Coverage 90+/-3%
  • Jacket FR-PVC
  • Outer Dia. 4.95 +/-0.15mm

Support

Data Downloads
Cable Specs
