EU-Hiboost

Hi20-6S-Plus

Hi20-6S-Plus

Networks : NR700(5G), LTE800(4G), EGSM 900, DCS 1800, WCDMA 2100(3G), LTE 2600(4G)
Coverage : up to 1500-4000 square meters
Max.Gain : 70 dB

  • Easy to install and monitor via HiBoost App
  • Carrier grade design
  • Fully CE RED Certified

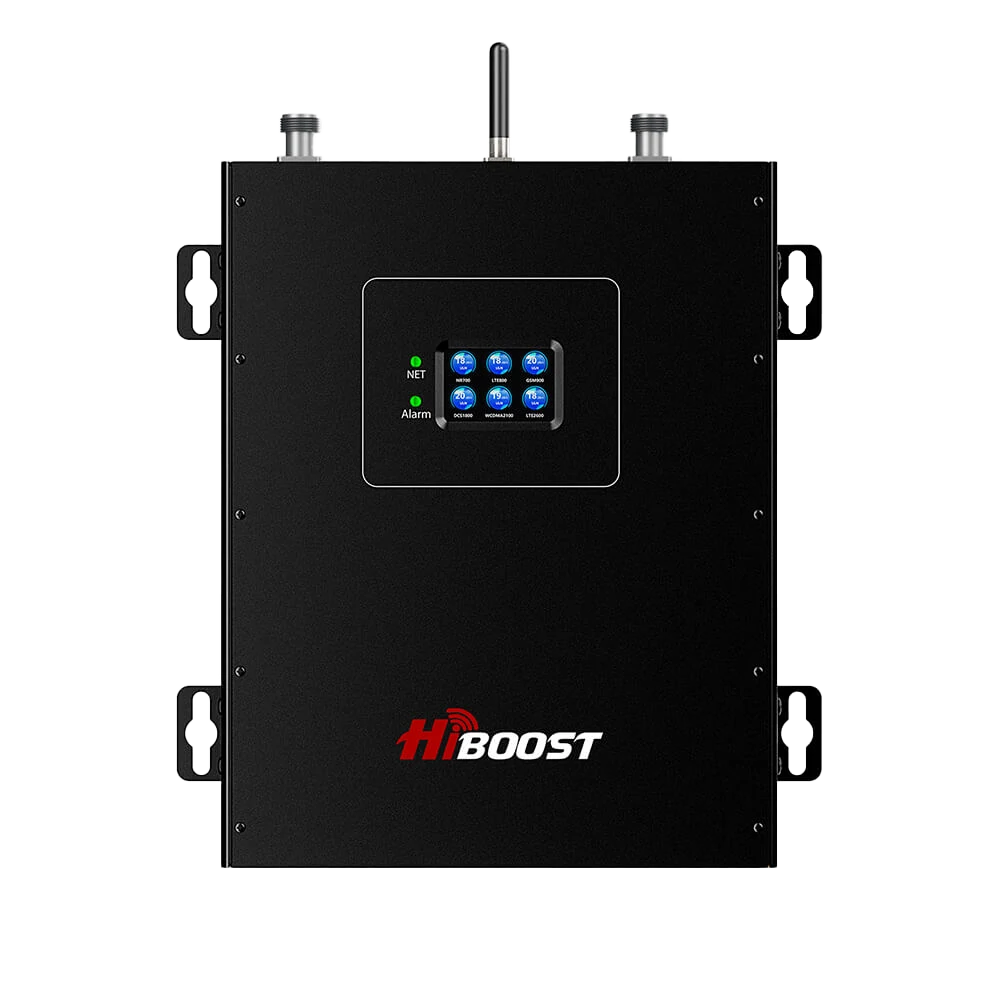

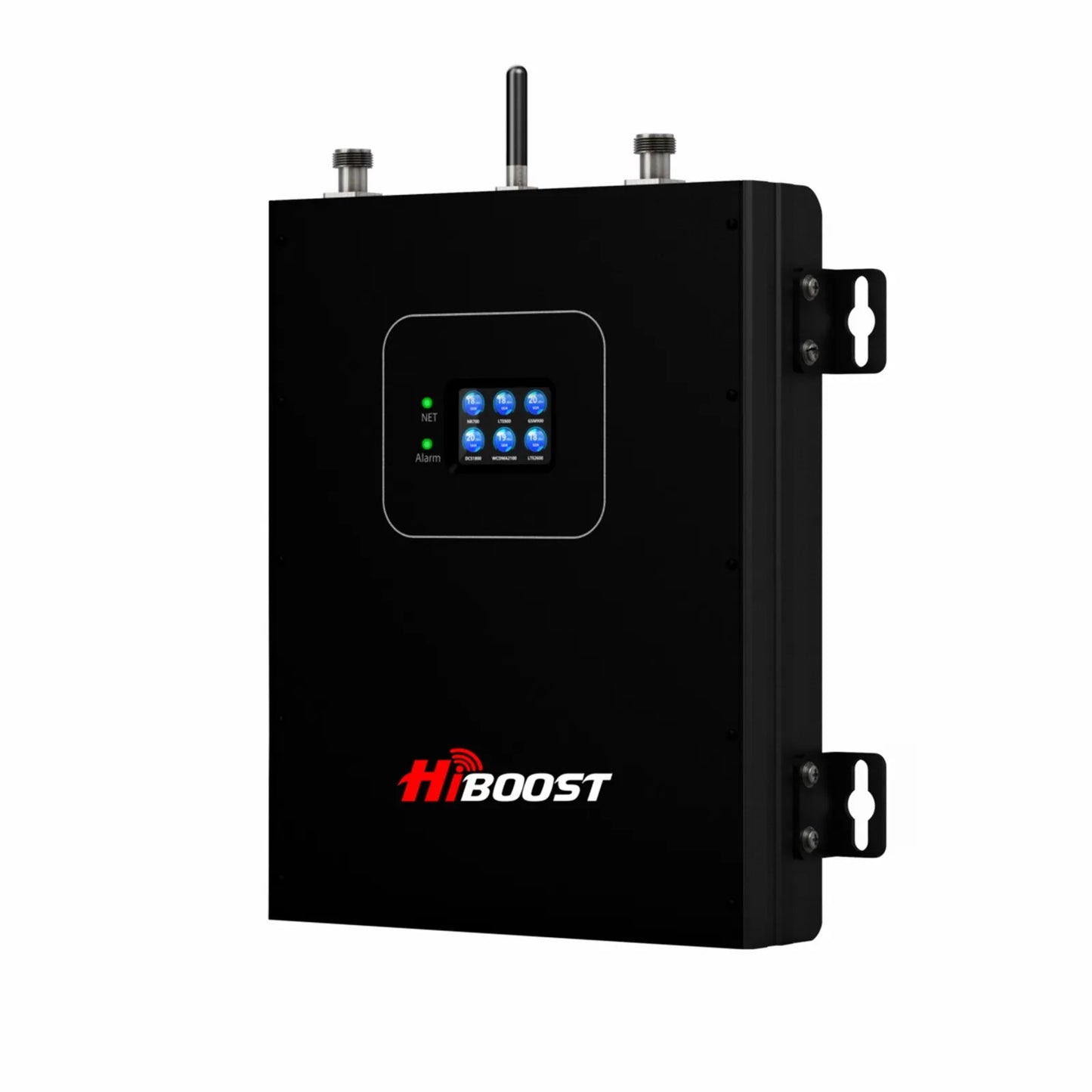

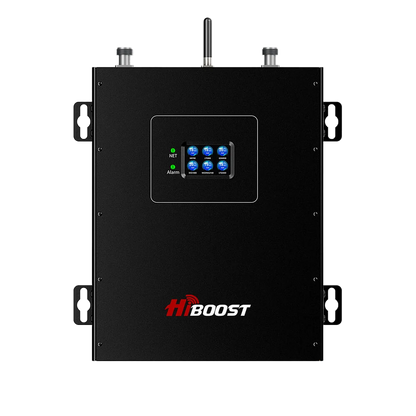

    The Hi20-6S-Plus mobile signal booster integrates the most powerful consumer boosting technology with remote monitoring via a free mobile app. Increase signal in any large area up to 4000 square meters!
View full details

Level up Your Signal Reception

HiBoost Hi20-6S-Plus is an innovative product to improve the signal reception for 2G/3G/4G/5G. The mobile signal booster is powerful enough to blast through even thickest walls and cover a large house, office building, supermarket, hospital, airport, etc.

Supporting 6 frequency bands at a time, the booster guarantees speed-up data transfer and high quality of calling at a time for any operator in EU country and UK.

*  Taking care of the outdoor signal reception and building design features, which is directly related to the level of signal reception inside your house/office.

Set-Up and Monitoring via the Hiboost App

HiBoost signal booster is powered by a free cloud-based HiBoost App, Signal Supervisor. Thanks to it you can control your device directly from your phone or tablet at anytime from anywhere and benefit from much easier and more efficient installation via an online guide.

  • Go through all intsallation steps via an app and find the best position for the outdoor antenna easily with a professional signal meter tool
  • Keep informed on booster performance status thanks to push notifications
  • Share your device with competent tech experts and receive assistance online

Download Signal Supervisor App from Google Play and App Store.

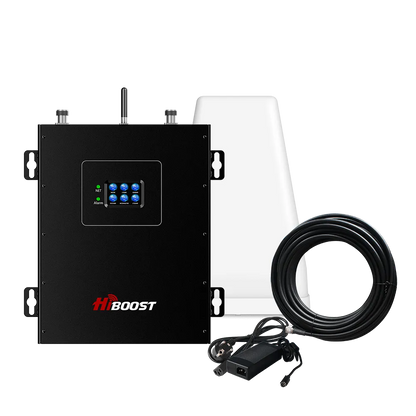

What Standard Kit Includes

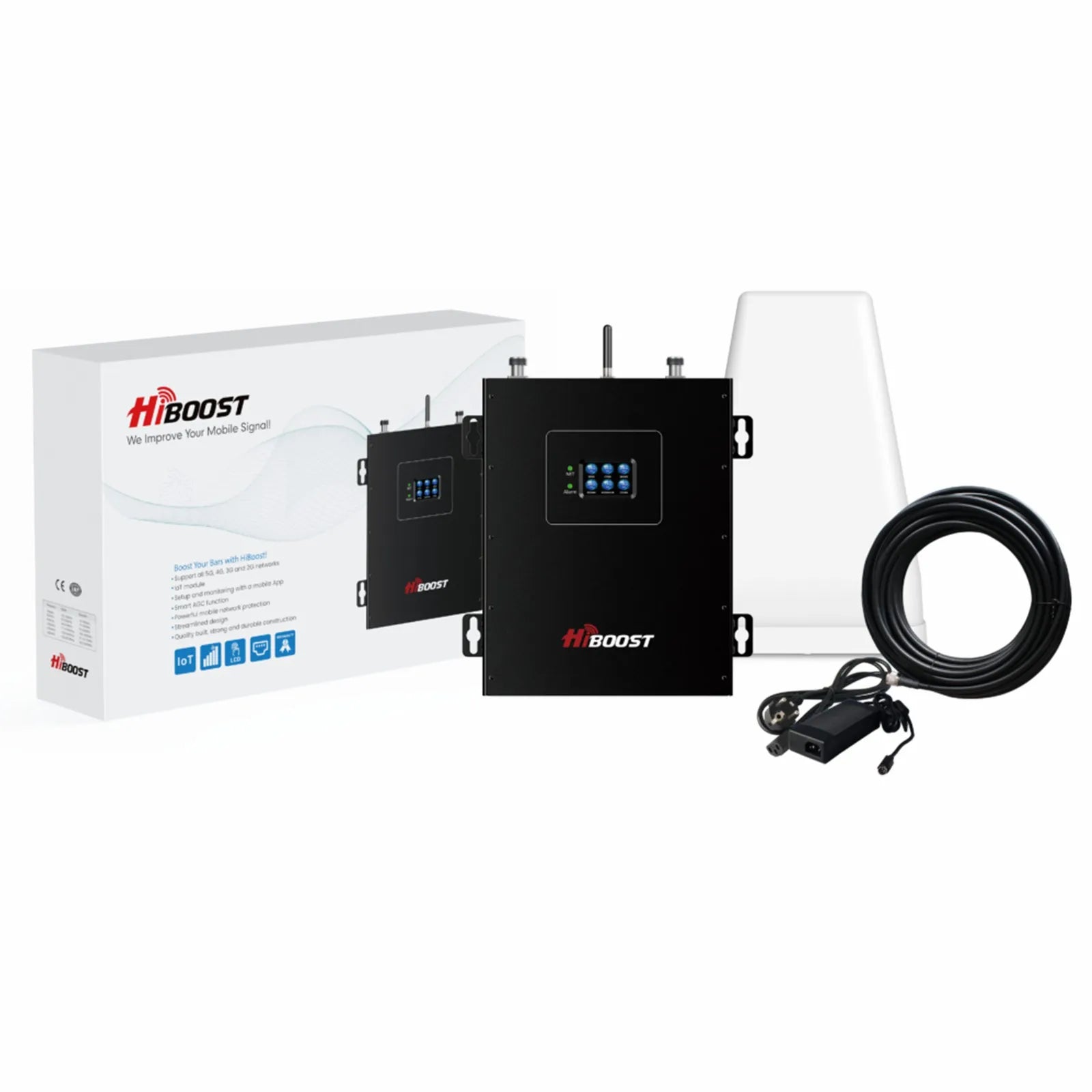

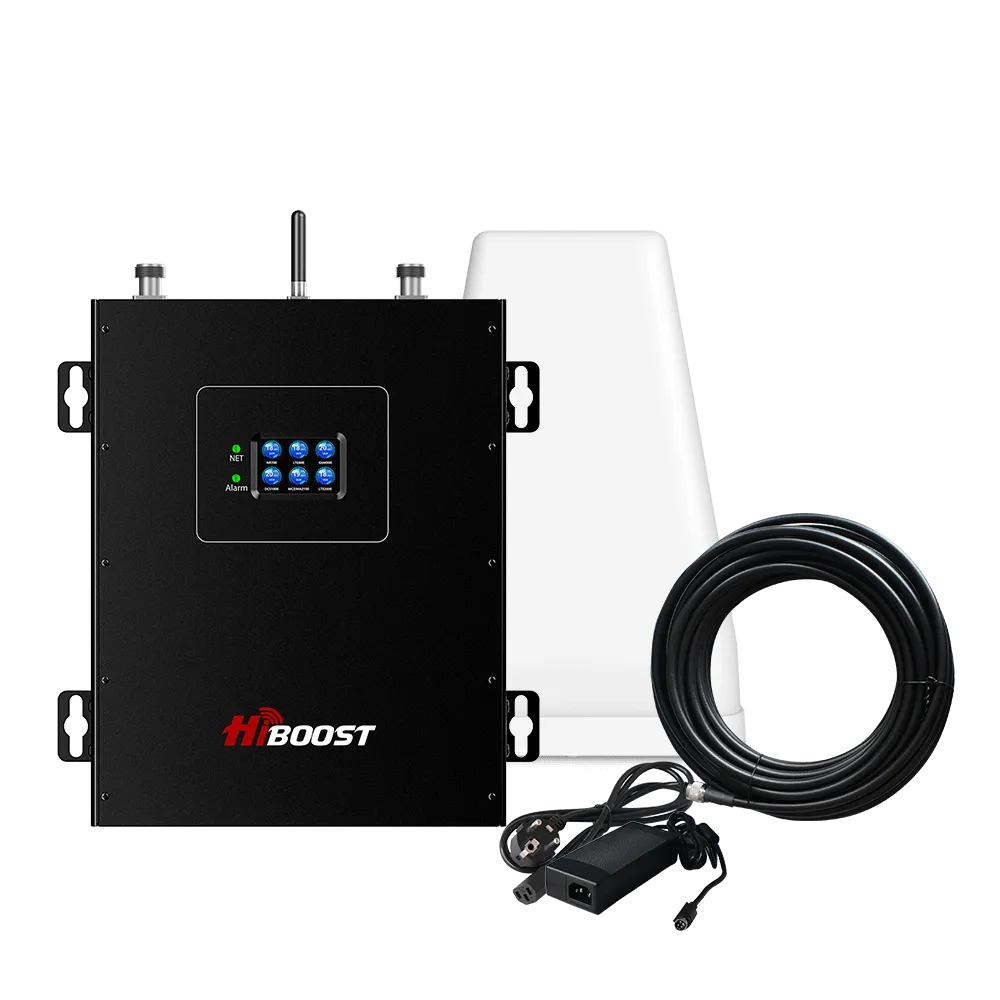

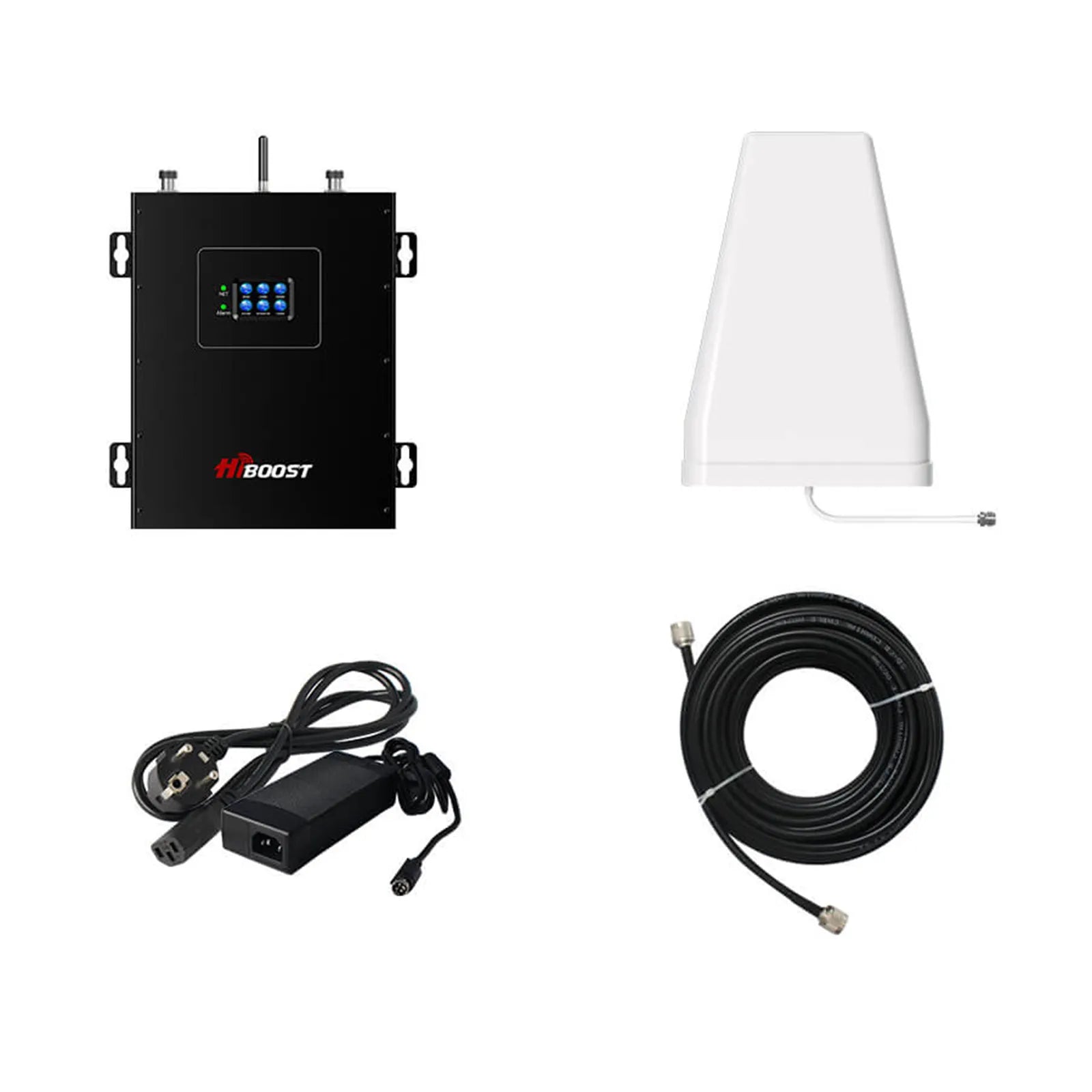

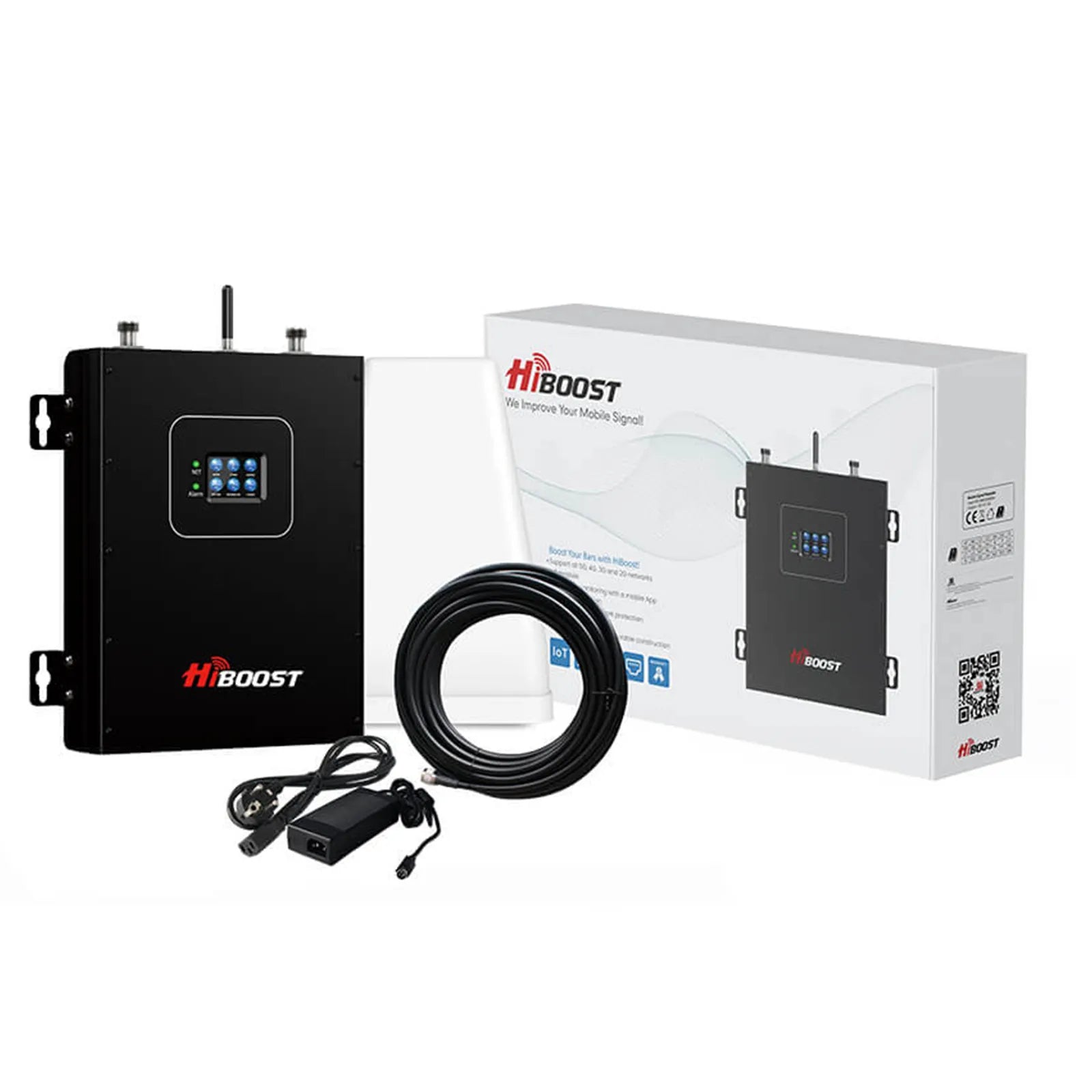

Every HiBoost solution comes in a kit with the necessary installation components. HiBoost Hi20-6S-Plus standard kit includes:

  1.  mobile signal booster
  2. outdoor directional antenna
  3. 50ft (15.2 m) HiBoost 300 cable
  4. 12V/ 7A, AC/DC power supply

Powerful Network Protection

No worries, all HiBoost signal repeaters are enabled with smart software that guarantees overall network protection even in the hardest signal reception conditions.
Automatic Gain Control (Agc)

The booster optimizes its performance according to the outdoor signal strength in your area. If the signal is too strong, the power of signal amplification automatically gets down. This completely avoids the interference with your operator’s network and saves the booster from overload.

Self-Oscillation Detection

Self-oscillation can occur when the booster and antenna are installed too close to each other. The booster automatically detects the problem and reduces booster gain to fix the problem.

Fully Certified Product

Quality proved by the compliance with the international and EU health and safety regulations (CE RED 2014/53/EU, RoHS, ISO 9001:2023)

How It Works

1. The outdoor antenna picks up the signal from the nearest cell tower and sends it to the booster.

2. The booster amplifies or literally repeats the signal and transmits it to the indoor antenna.

3. The indoor antenna spreads the enhanced signal throughout the desired area.

4. This is the moment! Your mobile phone receives a strong signal and you enjoy seamless calls and data!

Extend Your Coverage

It’s easy to customize a boosting solution according to your needs. You can add up to 8 extra indoor panel or omni antennas (view Optional Kits) to this PRO series repeater and greatly increase its coverage up to 4000 sq.m.

Standard Kit + 1 Panel PRO/ Omni PRO Kit

Coverage up to 1500 sq.m.

Standard Kit +  2 Panel PRO/ Omni PRO Kits

Coverage up to 2000 sq.m.

Standard Kit + up to 8 Panel PRO/ Omni PRO Kits

Coverage up to 4000 sq.m

Tech Specs

  • Working Bands 700, 800, 900, 1800, 2100, 2600 MHz
  • UL Frequency Range 703-733 / 832-862 / 880-915 / 1710-1785 / 1920-1980 / 2500-2570
  • DL Frequency Range 758-788 / 791-821 / 925-960 / 1805-1880 / 2110-2170 / 2620-2690
  • Supported Standards NR700, EGSM, WCDMA, DCS, LTE800 and LTE2600
  • Maximum Gain 70 db
  • MGC (Step Attenuation) ≥ 31 db/ 1 db step
  • Intelligent AGC ALC ≥42dB ISO ≥42dB
  • Gain Flatness Typical≤5dB (p-p)
  • Noise Figure @ Max. System Gain Typical≤5dB
  • V.S.W.R Typical≤2
  • Group Delay ≤1μs
  • Frequency Stability ≤0.01ppm
  • Power Supply Input AC 100~264 V, 50/60 Hz, Output DC 12V/7A
  • Power Consumption ≤30W
  • Impedance 50 ohm
  • I/O port N-Female
  • Dimensions 220*310*55 mm/ 8.7*12.2*2.2 inch
  • Booster Weight 3.8 KG
  • Booster Kit Weight 5.63 KG
  • Operating Temperature -10ºC~+55ºC
  • Storage Temperature -10ºC~+80ºC
  • Relative Humidity 5% – 95%
  • Barometric Pressure 55 kPa -106 kPa
  • Environment Condition IP40
  • LCD Display Frequency, Gain, Output Power and Working Status
