EU-Hiboost

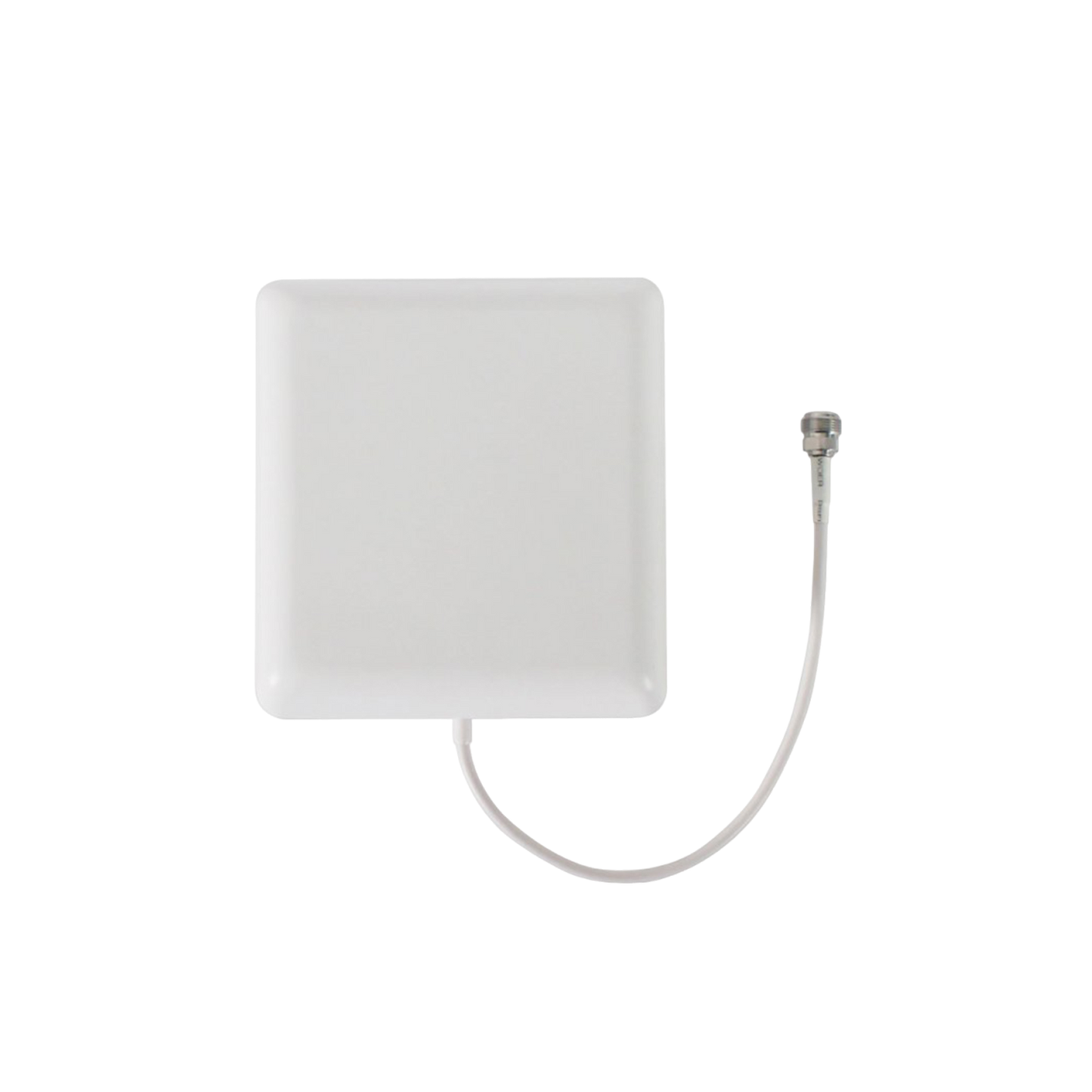

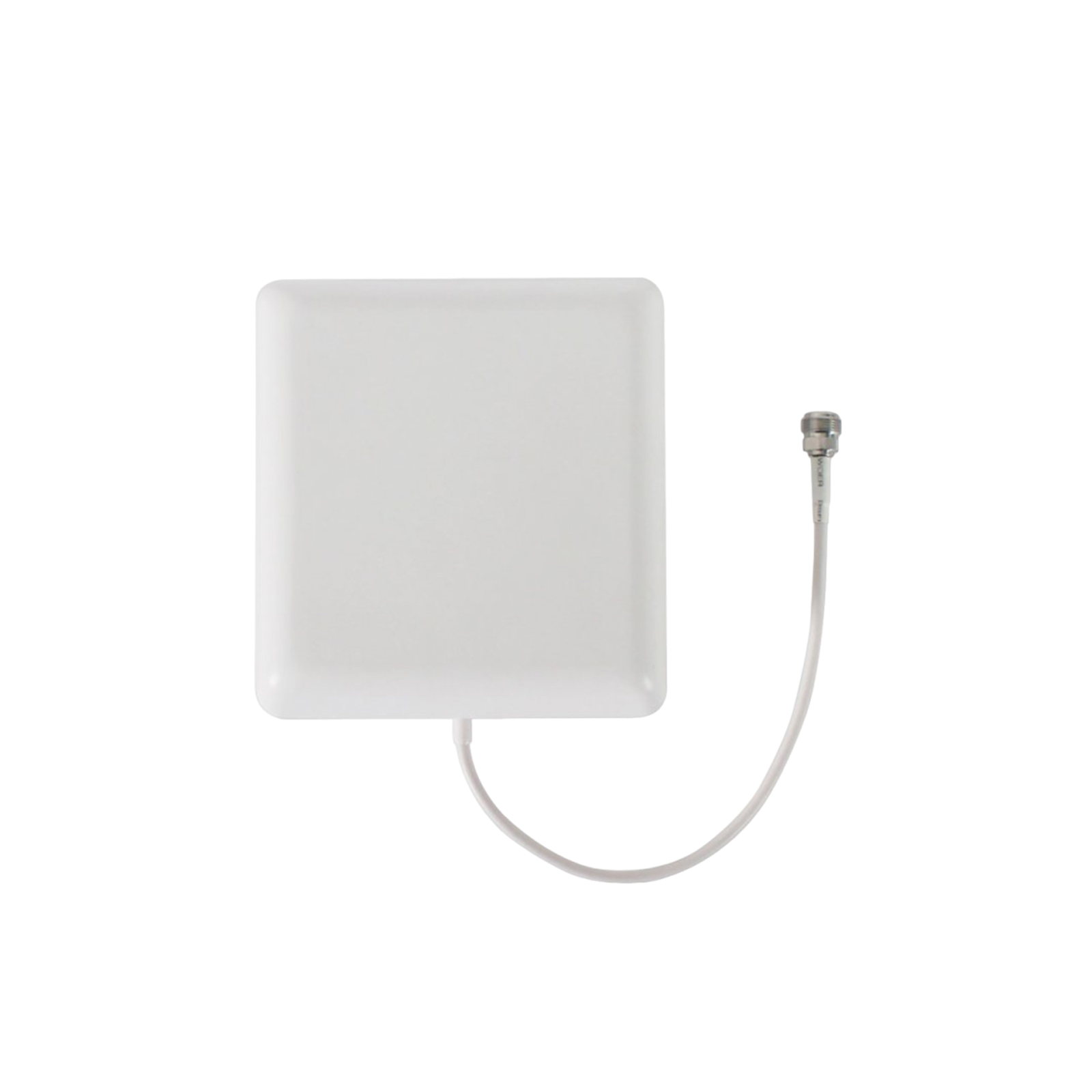

Outdoor Panel Antenna

Outdoor Panel Antenna

  • Carrier grade design
  • Easy to install & weatherproof
  • Designed for outdoor use

    Outdoor panel antenna is mounted outdoors to receive poor mobile signal from the nearest BTS and extend coverage inside your home or office.
View full details

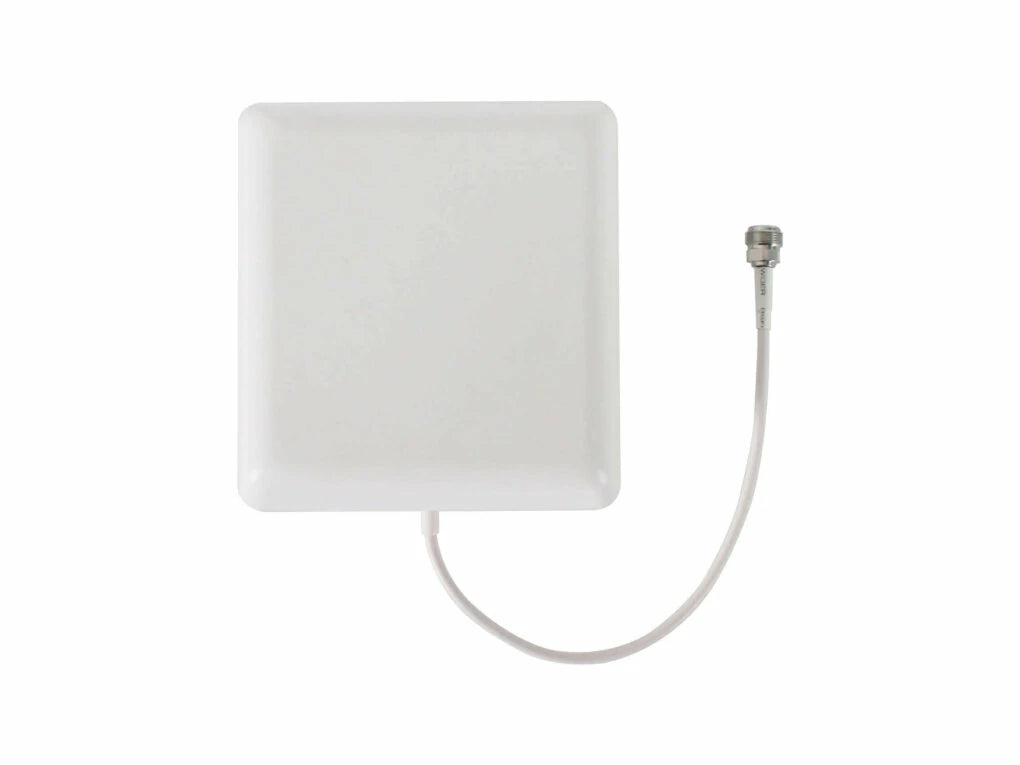

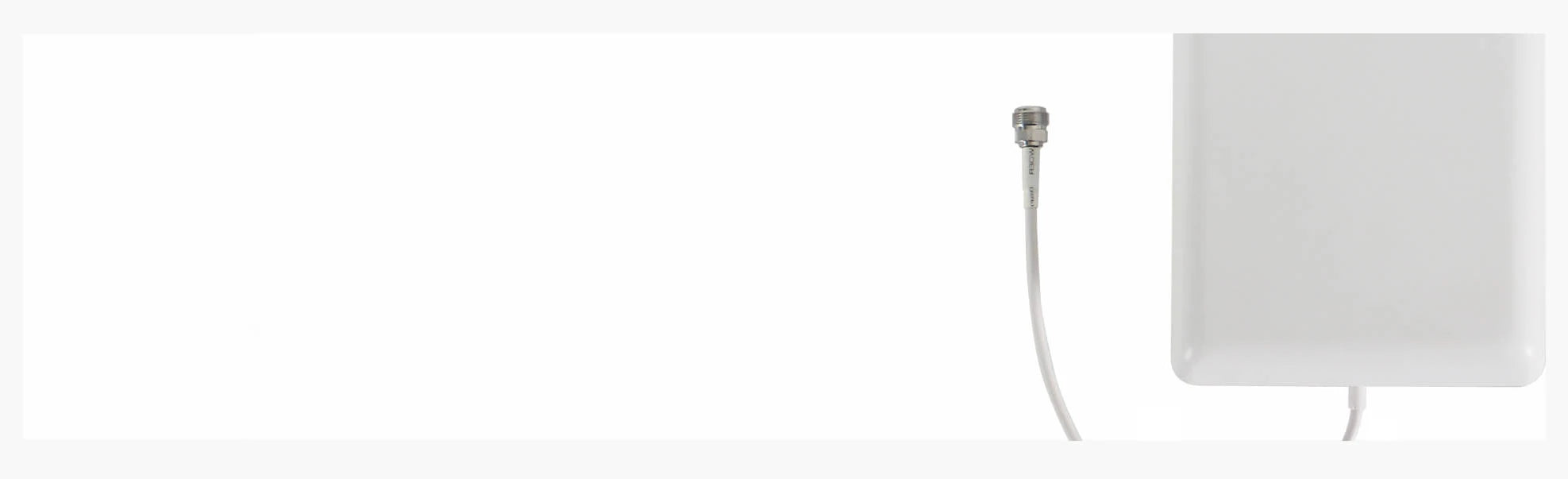

Pick up the Lowest Signal

It’s a high gain panel antenna mounted outdoors to receive poor mobile signal from BTSs. Since the antenna is directional and broadcasts signal only in one direction, it’s necessary to fix it towards the neaerst serving cell tower.

The accessory transmits 2G, 3G and 4G signals and supports all frequencies within 698-2700 MHz range.

The outdoor panel antenna is compatible with all HiBoost mobile signal boosters.

Antenna Key Features

  •  698~960/1710~2700MHz Broad band
  •  2G/3G/4G systems
  •  Sends signal in one direction
  •  6-8 dBi gain

Tech Specs

  • Frequency Range 698-806/806-960/1710-2700 MHz
  • Gain 6±1/7±1/8±1 dBi
  • Polarization Vertical
  • Horizontal Beamwidth 75±15° /60±15°
  • Vertical Beamwidth 70° /65°
  • VSWR ≤ 1.8
  • Input Impedance 50Ω
  • Maximum Input Power 50 W
  • Lighting Protection DC Ground
  • Connection Type N-Female
  • Weight 0.4 KG
  • Dimension 165*155*50 mm
  • Color White
