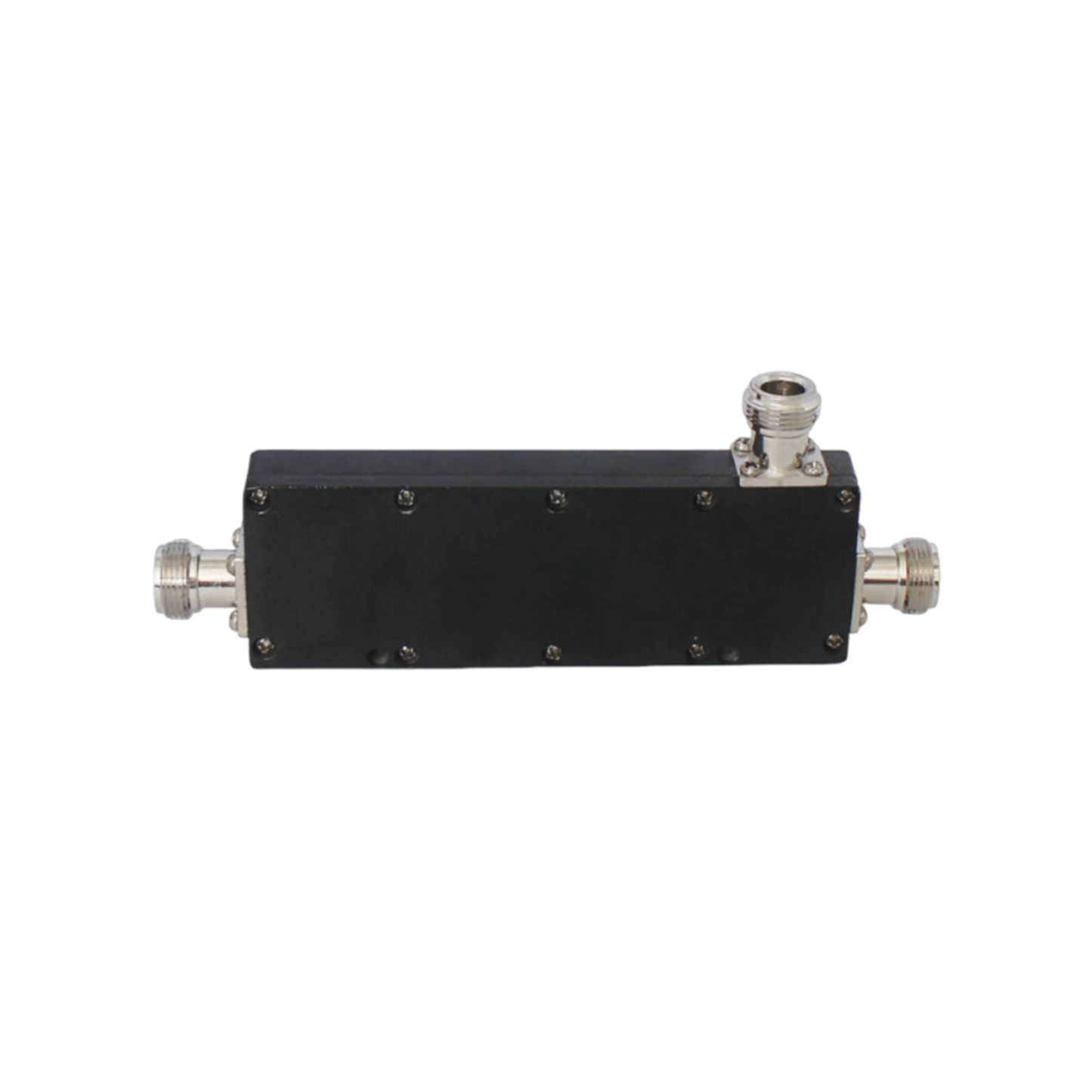

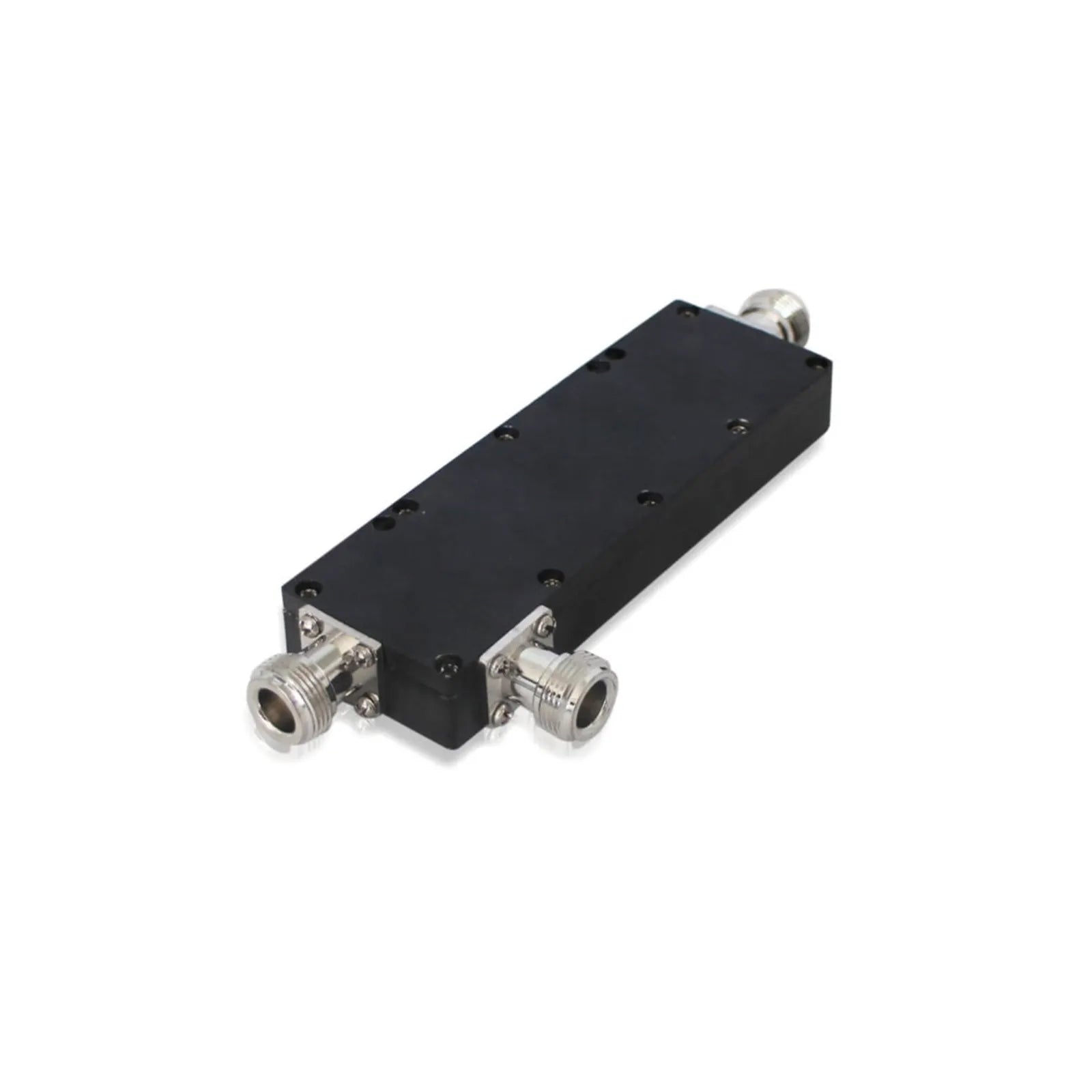

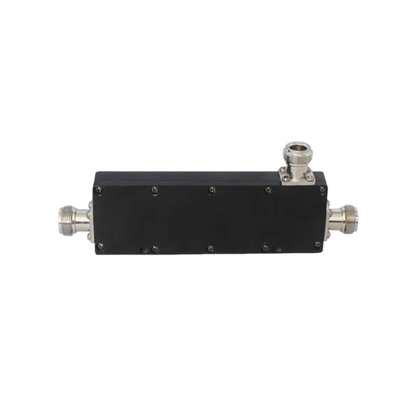

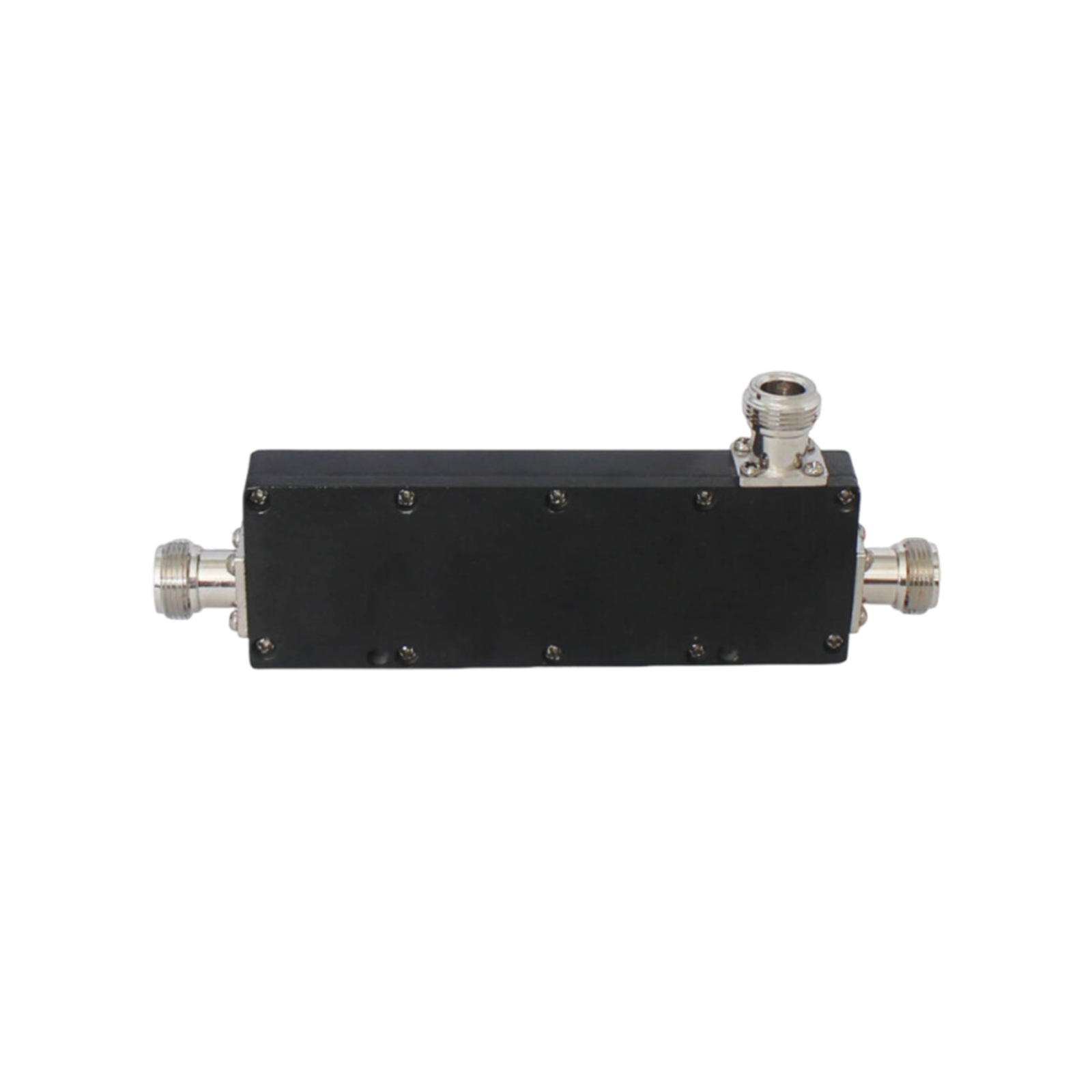

5dB Cavity Coupler

5dB Cavity Coupler

  • 5 dB gain
  • Easy to install
  • Meets international standards

    Coupler is used to focus more amplified signals to a specific area with a single repeater. This coupler is full band and covers GSM, DCS, UMTS and LTE
View full details

Expand Your Coverage

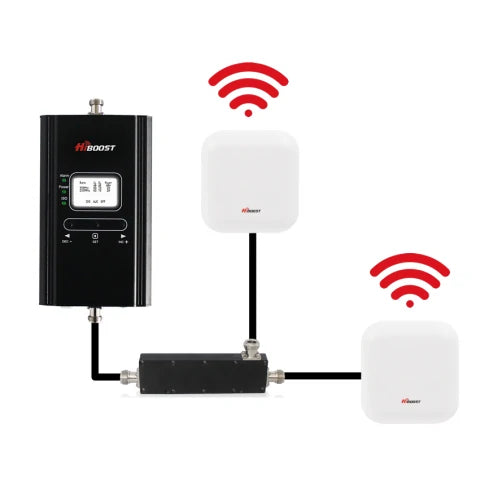

Cavity coupler is designed to focus more signal to a certain area. The accessory is to be used with 2 additional indoor antennas. The coupler is full band and supports GSM, DCS, UMTS and LTE networks from 698 to 2700 MHz.

The accessory is suitable for all HiBoost mobile signal amplifiers.

Coupler Key Features

  •  Full band 698-2700 MHz
  •  Gain 5 dB
  •  N-female connector type

Tech Specs

  • Frequency Range 698-2700 MHz
  • Coupling Loss 6dB – 1.7dB/ 10dB – 0.8 dB/ 15dB – 0.4dB/ 20dB – 0.3dB/ 30dB – 0.25dB
  • Isolation ≥20dB
  • Input Impedance 50Ω
  • VSWR ≤ 1.30
  • Power Capacity 200 W
  • Connector Type N-Female
  • Weight 0.3 KG
  • Color Black
  • Operating Temperature -35℃~+60℃
