EU-Hiboost

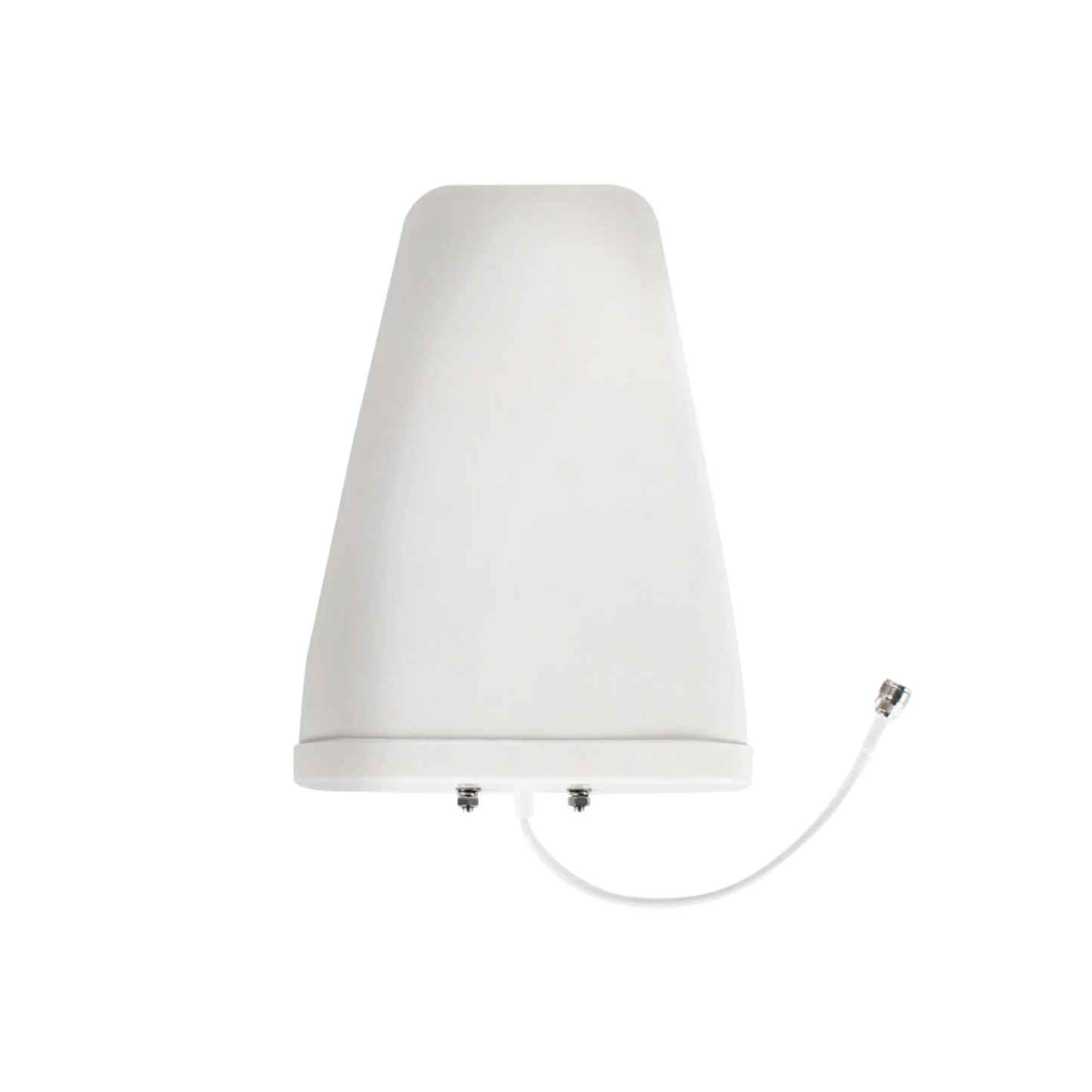

Outdoor Wide Band Directional Antenna

Outdoor Wide Band Directional Antenna

  • High gain

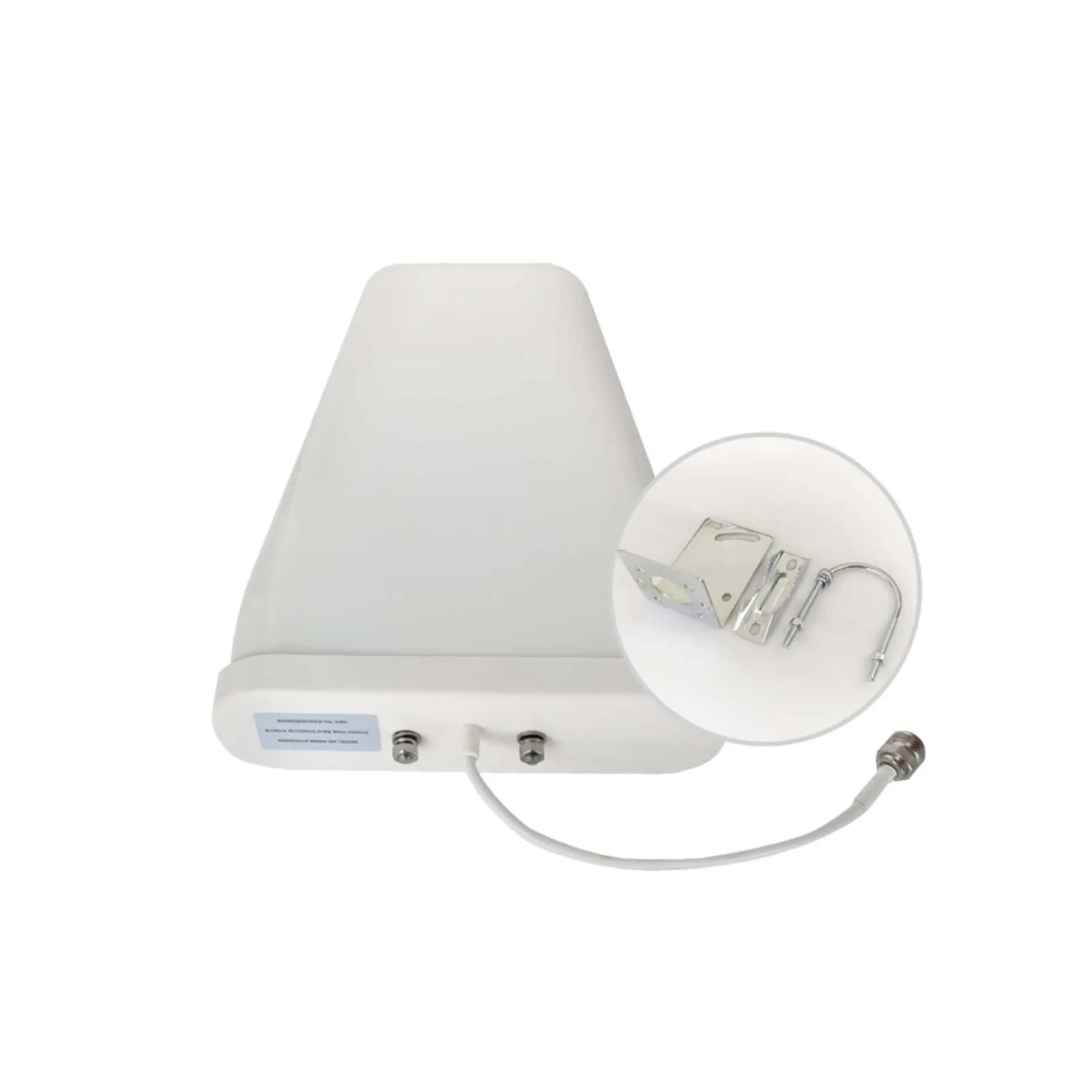

  • Goes with mountings
  • Carrier grade design

    Wide band directional antenna is a high gain outdoor antenna (10/11 dBi), able to pick the lowest signal from outside.
View full details

Pick up the Lowest Signal

Wide band directional antenna is a high gain outdoor antenna (10/11 dBi), able to receive even weakest signals from a cell tower and enlarge booster’s coverage area considerably.

You should point it towards the nearest mobile station to make it efficient at maximum. The antenna supports 2G, 3G, 4G networks and WLAN systems for GSM, DCS, UMTS and LTE.

This directional antenna is suitable for all HiBoost cell phone signal boosters.

Antenna Key Features

  •  698~960/1710-2700MHz Broad Band
  •  Low VSWR and return loss, stable performance
  •  Indoor and outdoor directional coverage
  •  Sealed with radome, strong protection ability
  •  Gain 10/ 11 dBi

Tech Specs

  • Frequency Range 698-960/ 1710-2700 MHz
  • Gain 10/ 11dBi
  • Polarization Vertical/ Horizontal
  • VSWR ≤1.8/≤1.5
  • Input Impedance 50Ω
  • Maximum Power 100 W
  • Connection Type N-Female
  • Weight 1 KG
  • Dimension 295*210*65mm
  • Lighting Protection DC Ground
  • Color White
