SMA-M To N-F Adaptor

Easy to install
Optimized dimensions
Carrier grade design

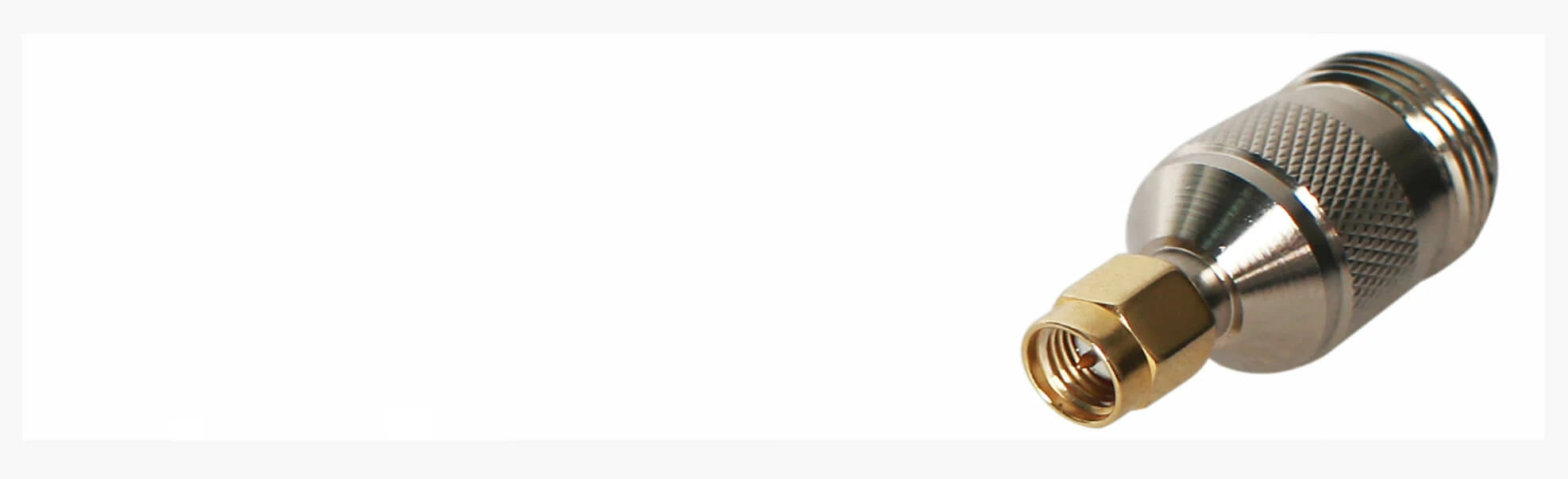

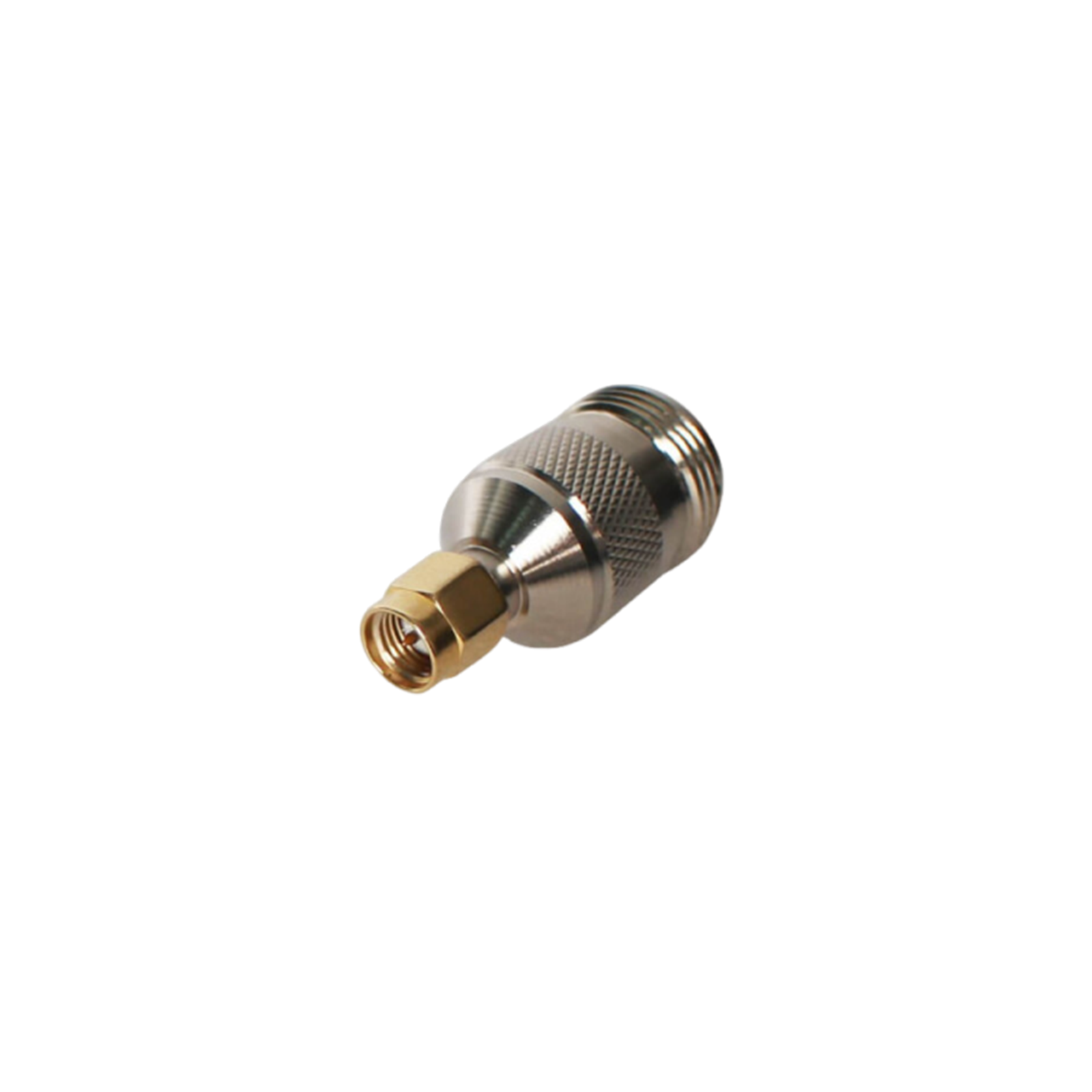

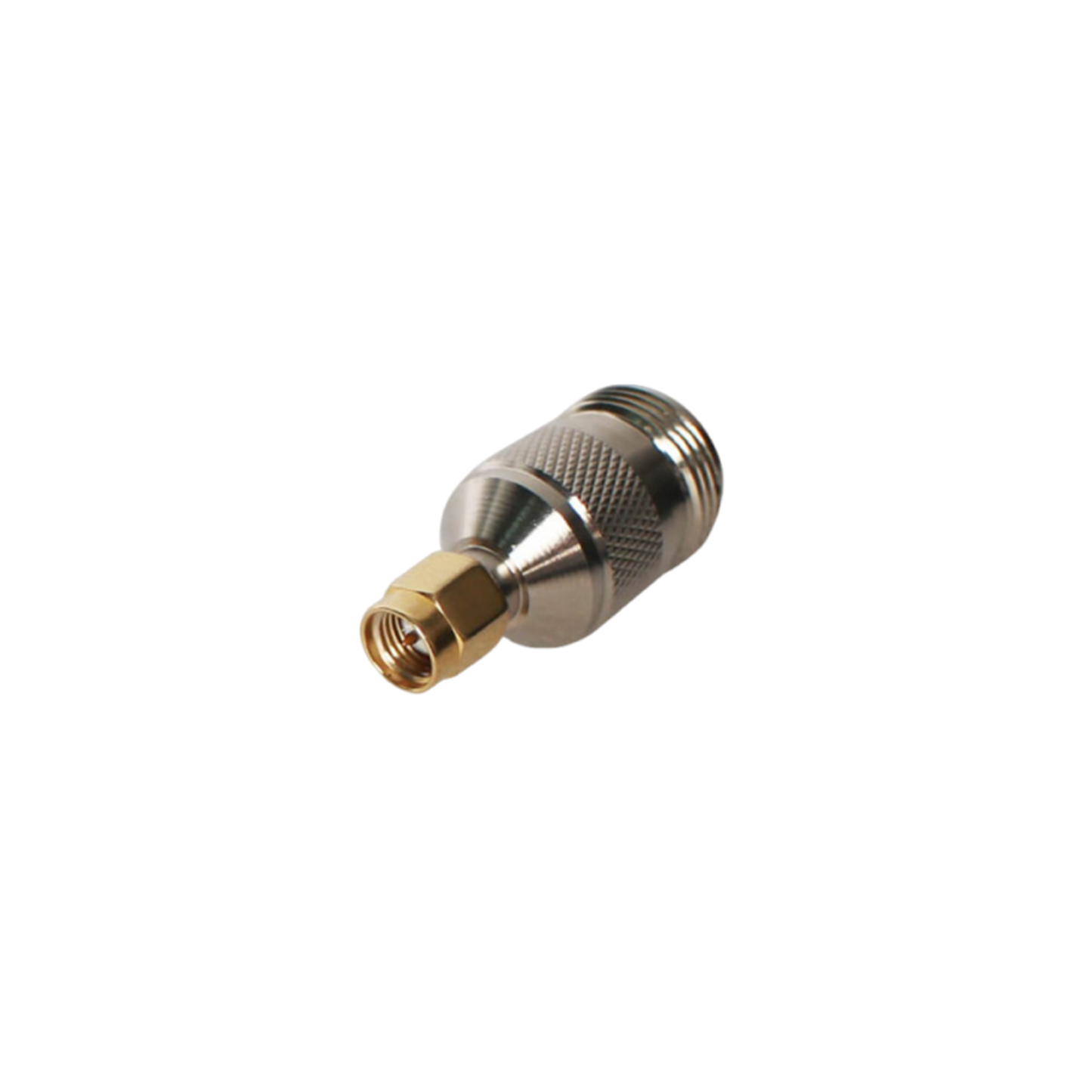

This SMA-M to N-F adaptor is designed to join SMA Female and N-Male connectors. It is suitable for HiBoost Hi13-17 3S, 3SL and 5S models.

View full details

Expand Coverage Easily

This SMA-M to N-F adaptor is designed to add two indoor antennas to a single mobile phone signal booster and double its coverage area without bothering with a splitter.

Mind that the adaptor is suitable for HiBoost Home&Office 3S, 3SL and 5S models (Hi13/17) only.

Escape Splitter Hassle

Normally, you will have to add a splitter and 1m coaxial cable to connect an extra indoor antenna to your boosting device.

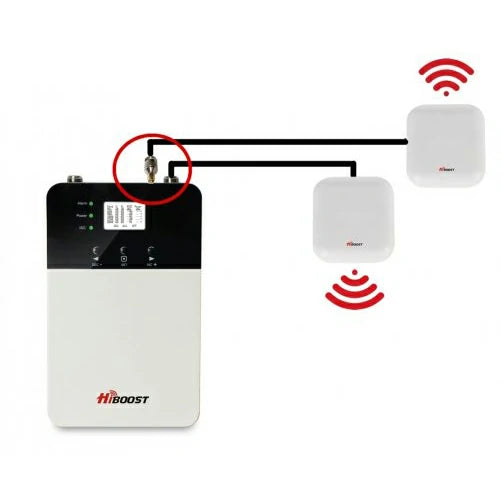

HiBoost Hi13/17 – 3S/3SL/5S models with an inbuilt indoor antenna have a special Inbuilt antenna port that can be used for connecting a second external indoor antenna. Just screw up an adaptor to this port and connect a cable from the antenna right to it.

Mind that an inbuilt indoor antenna inside the booster will get disabled.

Insert Hole Material Bronze
Housing Material Brass
Screw Sleeve Material Brass
Impedance 50Ω
Frequency Band DC-3GHz
Rated Operating Voltage 335V
Contact Resistance: Inner Conductor ≤ 3mΩ
Contact Resistance: Outer Conductor ≤ 2.5mΩ
Insulation Resistance ≥5000 MΩ
Weight 0.13 kg/ 0.29 lbs
Medium Withstand Voltage 1000V
Inner Conductor Separation Force N>0.57N
Mechanical Life >500 times (12 times per minute)
Connecting Nut Torque SMA recommended 0.68~1.13N. m
Material of Coaxial Cable RG187
Ambient Temperature -55~155°C
Relative Humidity 95% at +40°C
