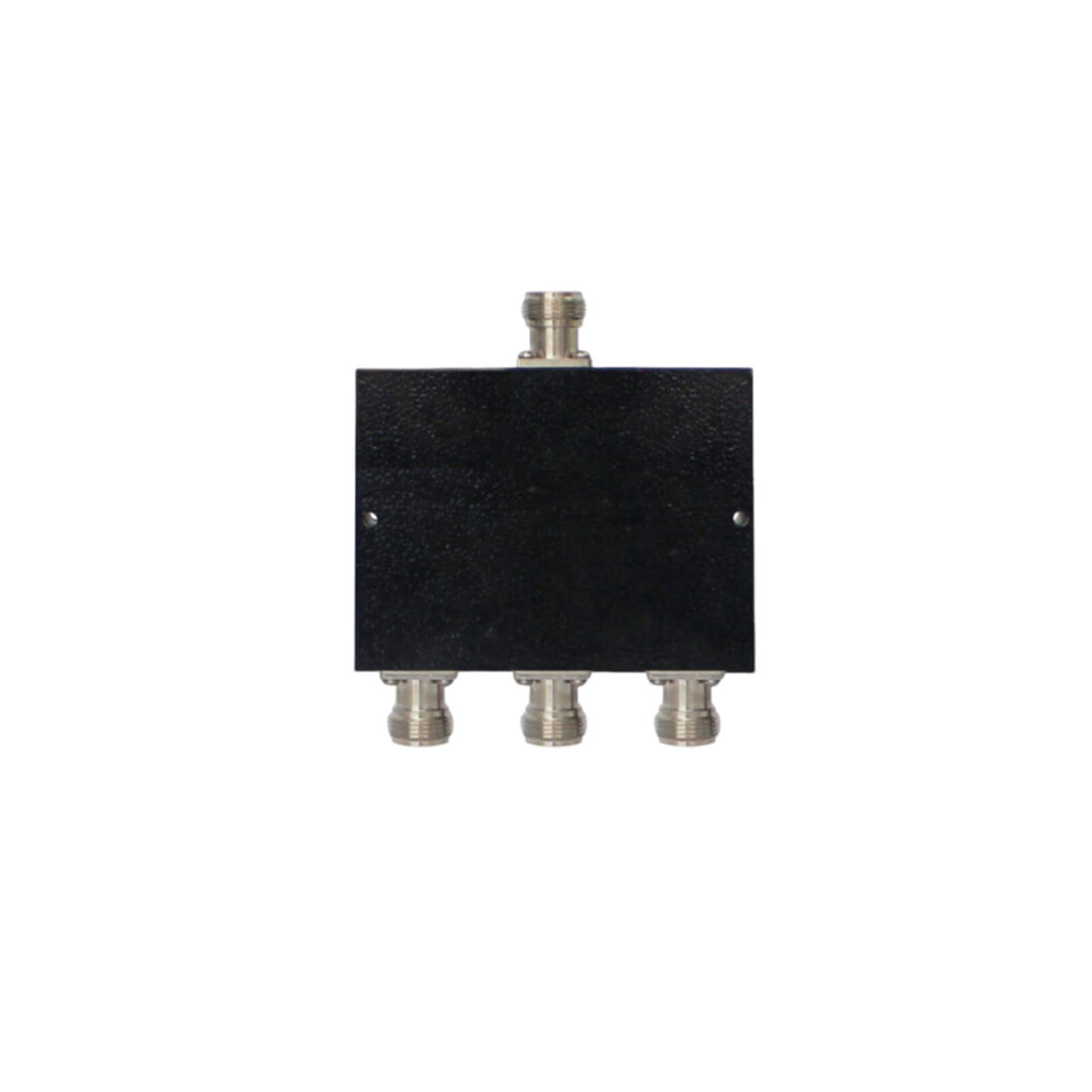

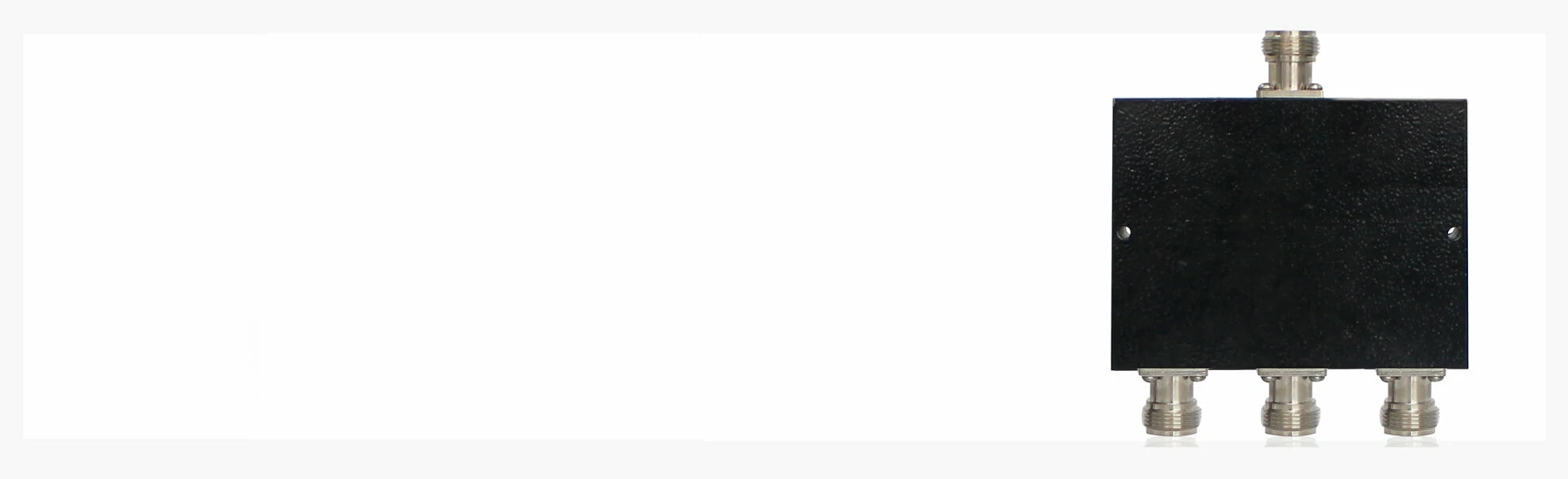

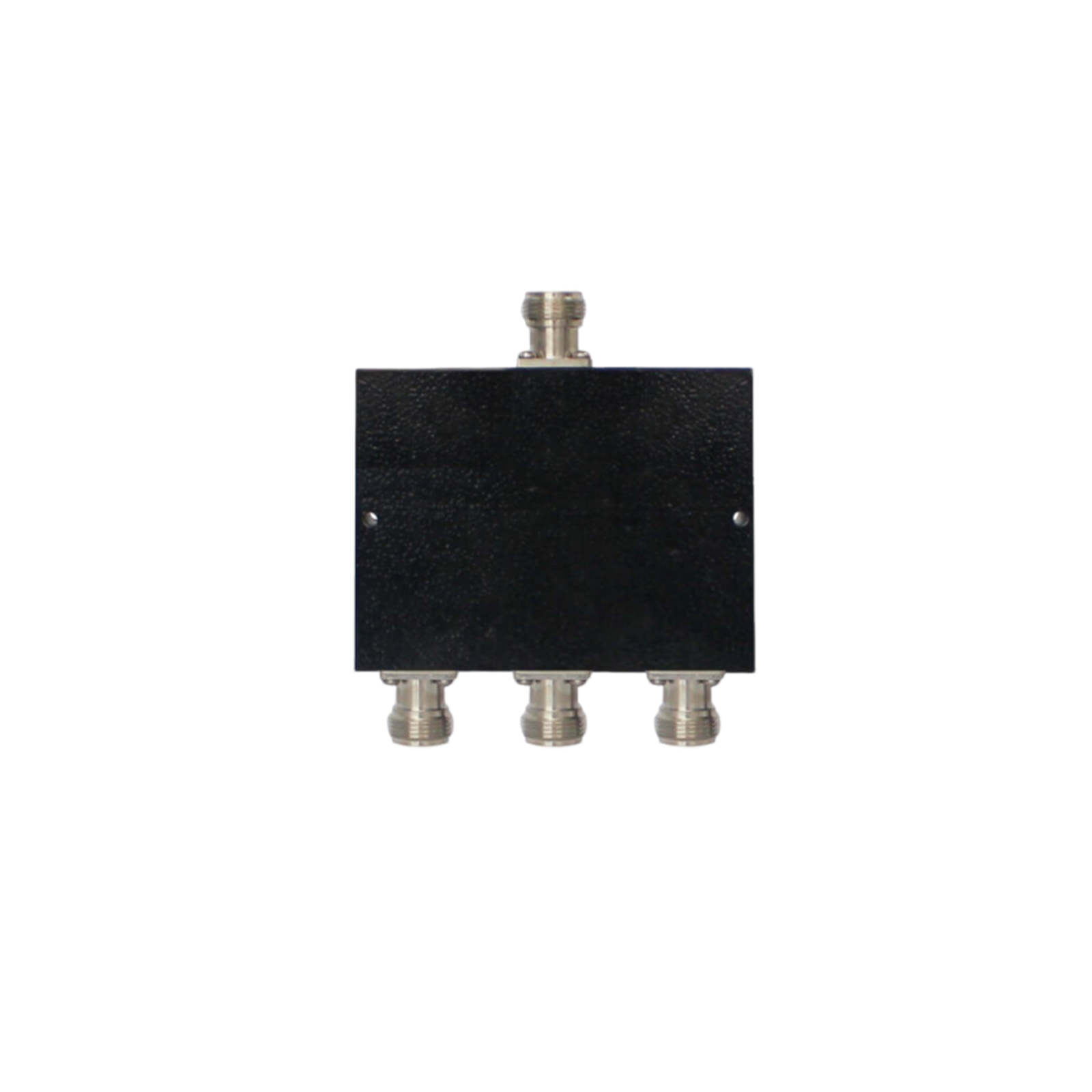

3-Way Wilkinson Splitter

3-Way Wilkinson Splitter

  • 3-way splitter
  • Easy to install
  • Meets international standards

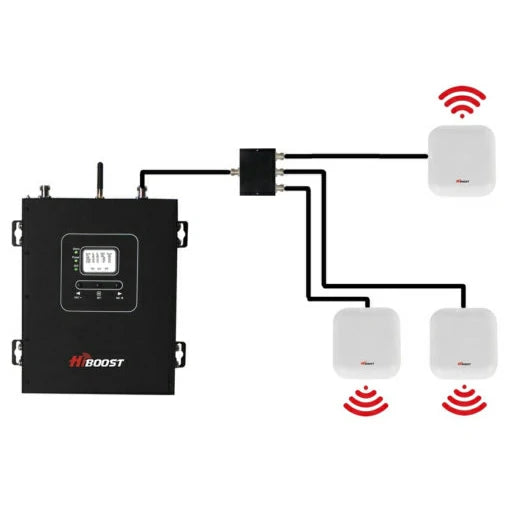

    This three-way wilkinson splitter allows 3 antennas to be used with a single mobile signal booster. Each indoor antenna has a loss of ⩽0.5 dB gain.
View full details

Add More Antennas

This three-way Wilkinson splitter allows 3 antennas to be used with a single mobile signal booster. Each indoor antenna has a loss of ⩽0.5 dB gain.

The splitter supports 2G, 3G and 4G at 698 to 2700 MHz frequency range.

The accessory is suitable for all HiBoost cell phone signal boosters.

Splitter Key Features

  •  Full band 698-2700 MHz
  •  Signal loss ⩽0.5 dB
  •  Supports 3 antennas

Tech Specs

  • Frequency Range 698-2700 MHz
  • Insertion Loss ⩽ 0.5 dB
  • Input Impedance 50Ω
  • VSWR ≤ 1.5
  • Maximum Power 50 W
  • Connector Type N-Female
  • Weight 0.36KG/0.79 lbs
  • Color Black
