EU-Hiboost

Hi20-3S

Hi20-3S

Networks : EGSM 900, DCS 1800, 3G 2100
Coverage : up to 1500 - 4000 square meters
Max.Gain : 70 dB

  • Easy to install and monitor via HiBoost App
  • Carrier grade design
  • Fully CE RED Certified

    The Hi20-3S mobile booster integrates the most powerful consumer boosting technology with remote monitoring via a free app. Increase your signal and level up the connection quality!
View full details

Level up Your Signal Reception

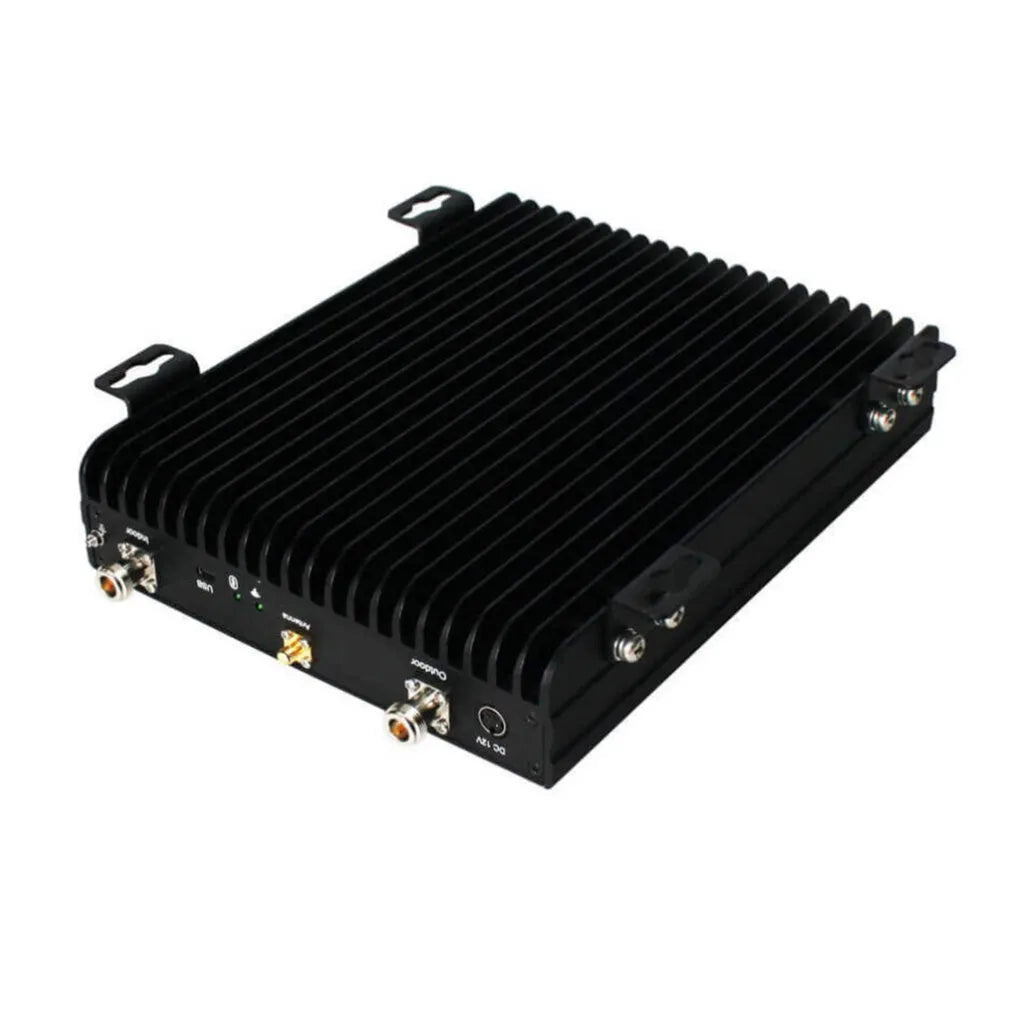

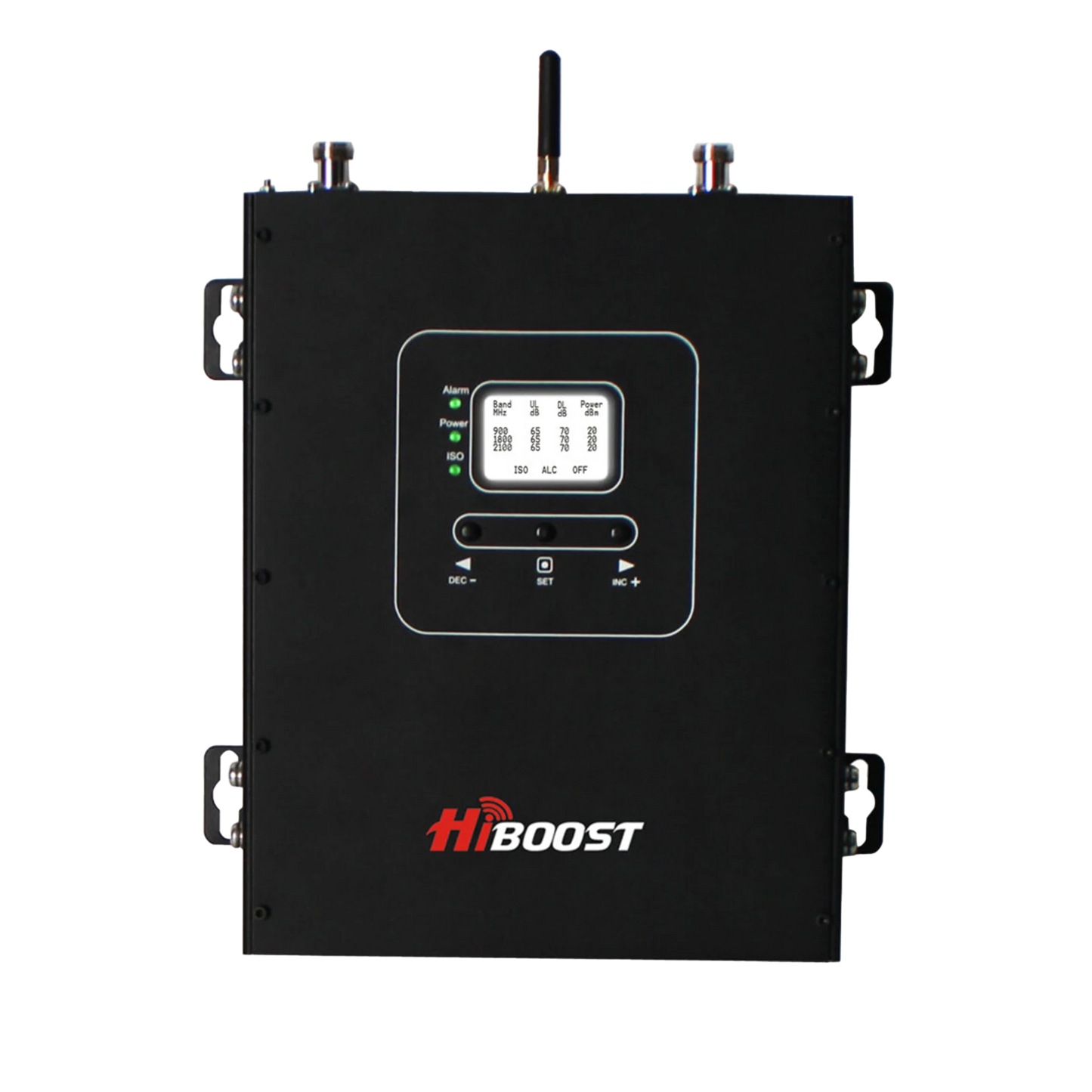

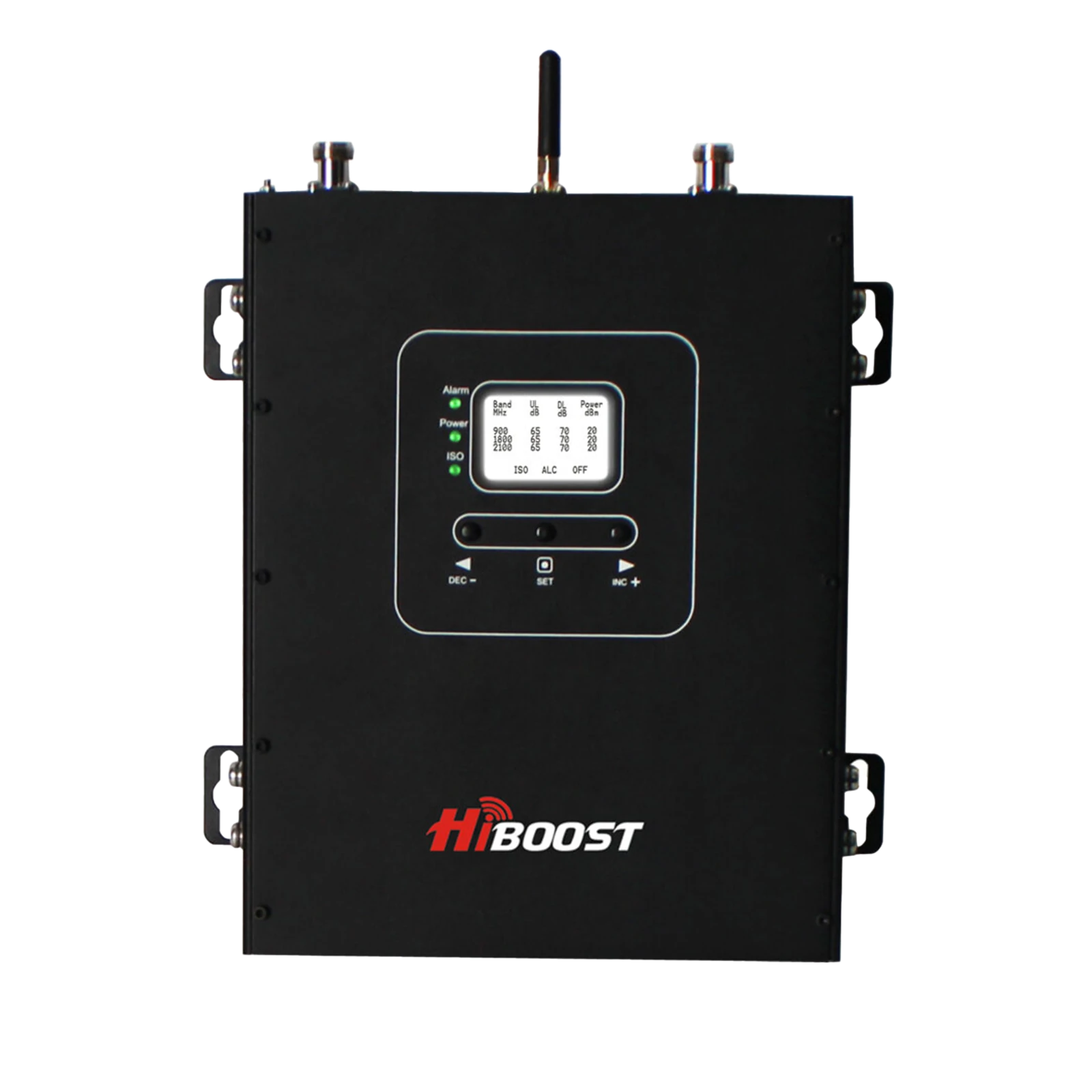

HiBoost Hi20-3S is a powerful professional mobile signal repeater designed to cover large office buildings, hotels, airports, supermarkets, restaurants, etc.

Supporting 3 frequency bands at a time, the booster guarantees faster data speeds and clearer calls in every corner.

* Mind that the level of signal inside your house/office depends on the outdoor signal reception ouside it and your building design features.

Set-Up and Monitoring via the Hiboost App

HiBoost signal booster is powered by a free cloud-based HiBoost App, Signal Supervisor. Thanks to it you can control your device directly from your phone or tablet at anytime from anywhere and benefit from much easier and more efficient installation via an online guide.

  • Go through all installation steps via an app and find the best position for the outdoor antenna easily with a professional signal meter tool
  • Keep informed on booster performance status thanks to push notifications
  • Share your device with competent tech experts and receive assistance online

Download Signal Supervisor App from Google Play and App Store.

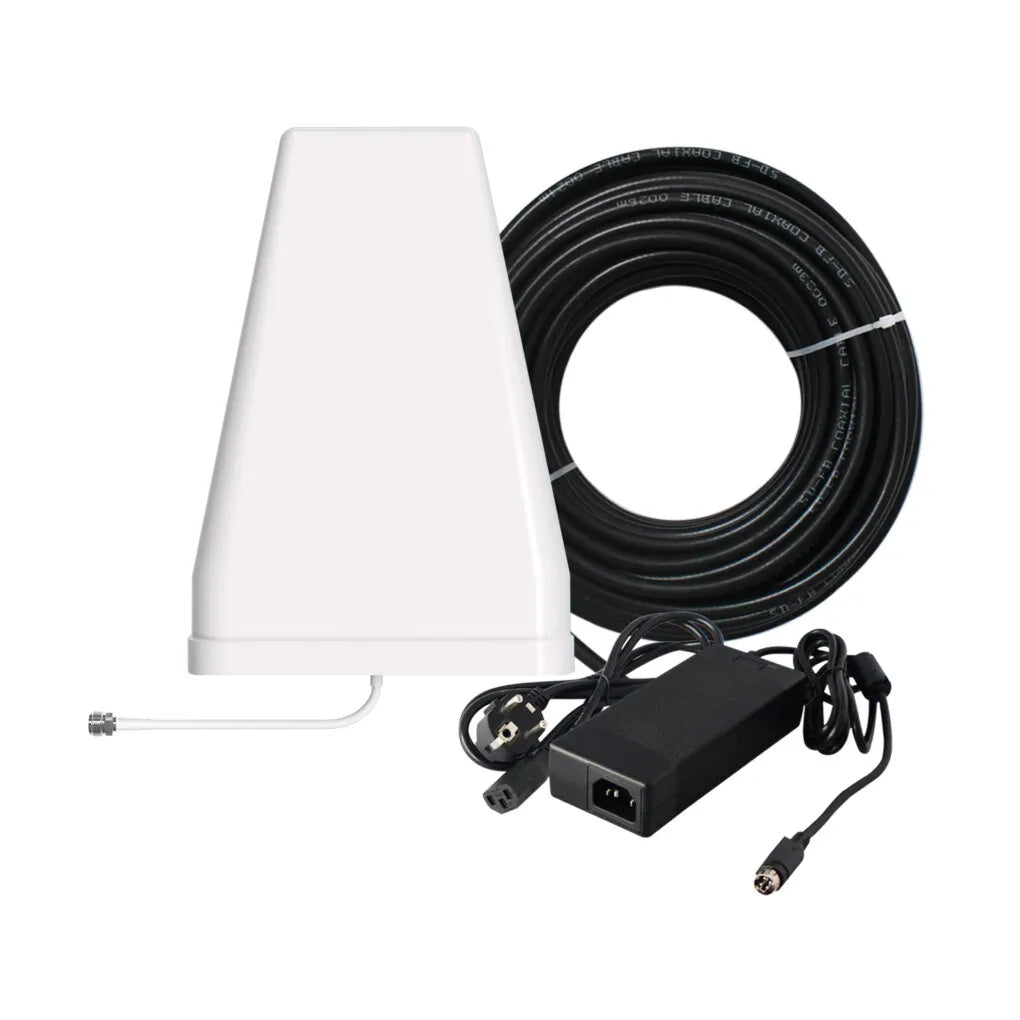

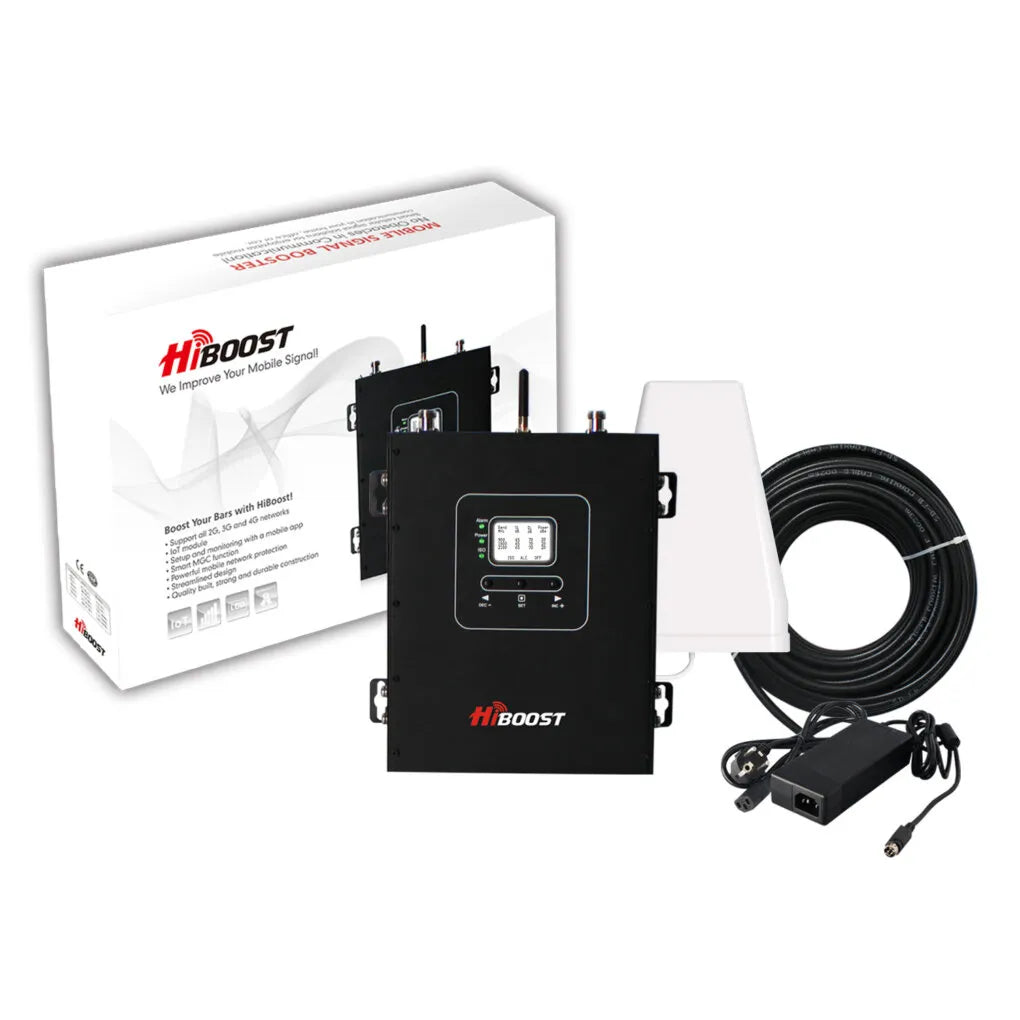

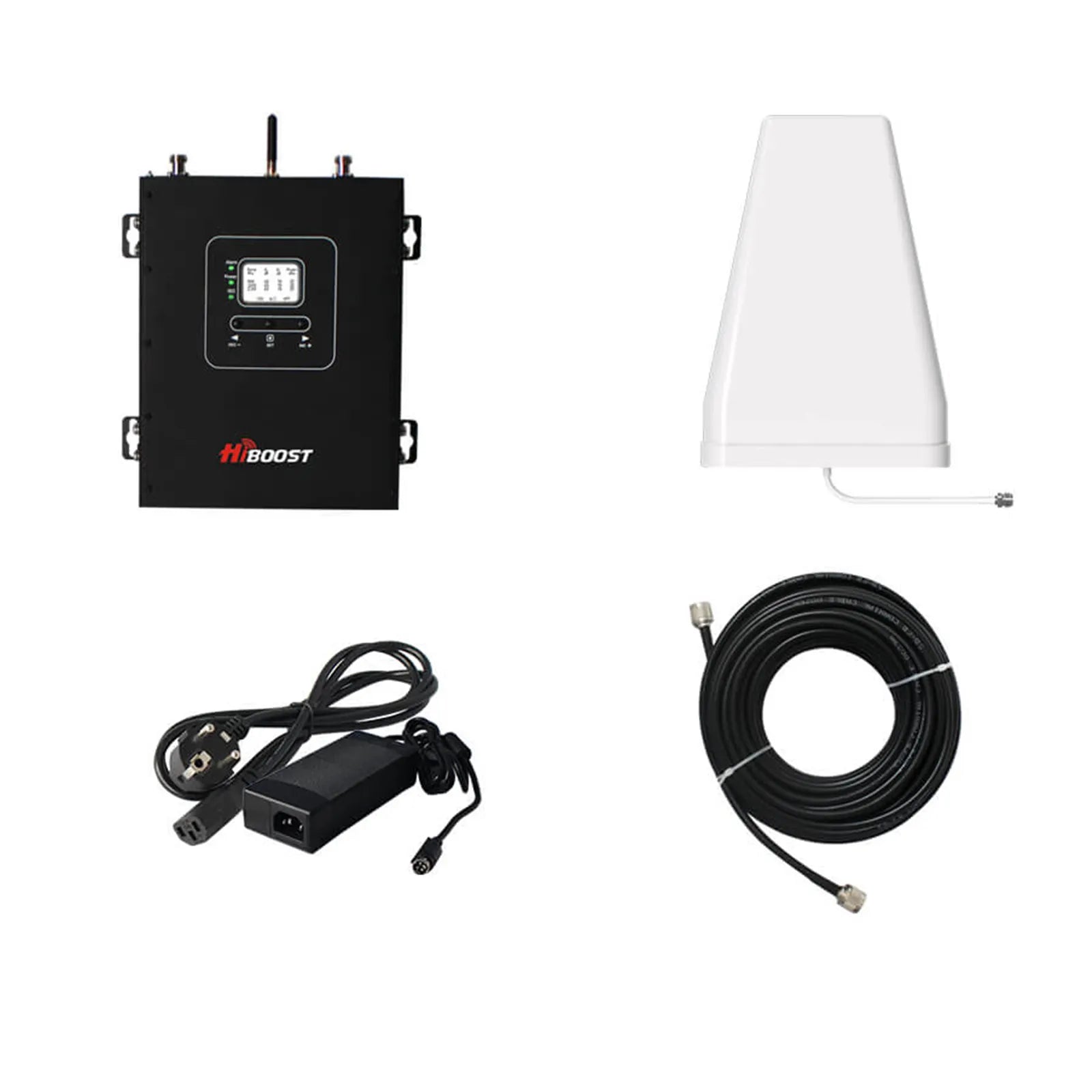

What Standard Kit Includes

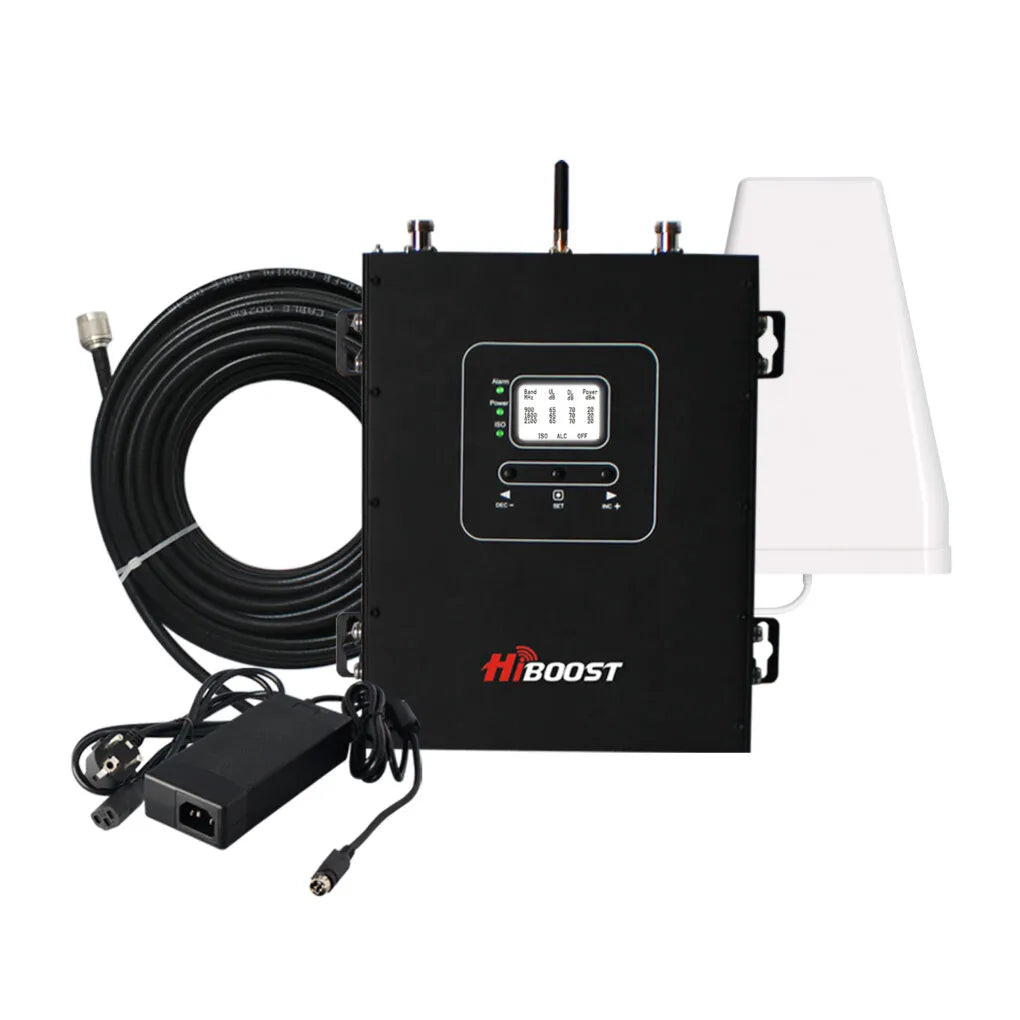

Every HiBoost solution comes in a kit with the necessary installation components. HiBoost Hi20-3S standard kit includes:

  • mobile signal booster
  • outdoor directional antenna
  • 50ft (15.2 m) HiBoost 300 cable
  • 12V/ 7A, AC/DC power supply

Powerful Network Protection

All HiBoost signal repeaters are enabled with smart functions by default. They guarantees blanket network protection even in the hardest signal reception conditions.
Automatic Gain Control (AGC)

The booster optimizes its performance according to the outdoor signal strength in your area. If the signal is too strong, the power of signal amplification automatically gets down. This completely avoids interference with your operator’s network and saves the booster from overload.

Self-Oscillation Detection

Self-oscillation can occur when the booster and antenna are installed too close to each other. The booster automatically detects the problem and reduces booster gain to fix the problem.

Fully Certified Product

HiBoost products are of high quality standard which is proved by the compliance with the international and EU health and safety regulations (CE RED 2014/53/EU, RoHS, ISO 9001:2023)

How It Works

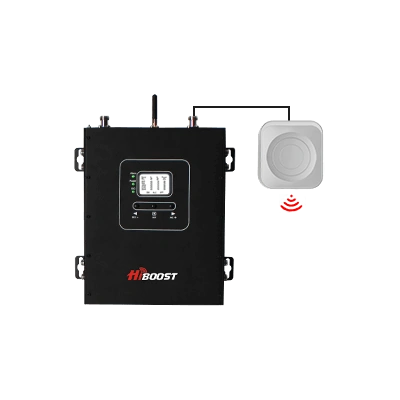

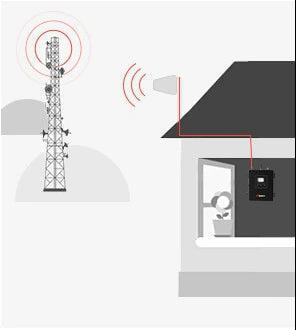

1. The outdoor antenna picks up the signal from the nearest cell tower and sends it to the booster.

2. The booster amplifies or literally repeats the signal and transmits it to the indoor antenna.

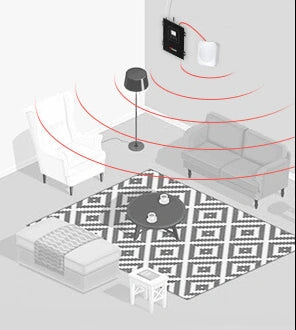

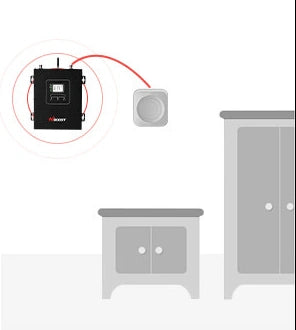

3. The indoor antenna spreads the enhanced signal throughout the desired area.

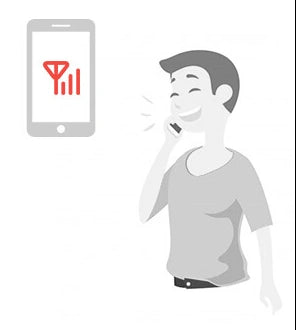

4. This is the moment! Your mobile phone receives a strong signal and you enjoy seamless calls and data!

Extend Your Coverage

It’s easy to customize a boosting solution according to your needs. You can add up to 6 extra indoor panel or omni antennas (view Optional Kits) to a PRO series repeater and greatly increase its coverage up to 4000 sq.m.

Standard Kit + 1 Panel PRO/ Omni PRO Kit

Coverage up to 1500 sq.m.

Standard Kit +  2 Panel PRO/ Omni PRO Kits

Coverage up to 2000 sq.m.

Standard Kit + up to 6 Panel PRO/ Omni PRO Kits

Coverage up to 4000 sq.m

Tech Specs

  • Working Bands 900, 1800, 2100 MHz
  • UL Frequency Range 880-915 /1710-1785 /1920-1980 MHz
  • DL Frequency Range 925-960 /1805-1880 /2110-2170 MHz
  • Supported Standards EGSM, DCS, WCDMA
  • Maximum Gain 70 db
  • Max. Output Power 20dBm
  • MGC (Step Attenuation) ≥ 31 db/ 1 db step
  • Intelligent AGC ALC ≥42dB ISO ≥42dB
  • Gain Flatness Typical≤5dB (p-p)
  • Noise Figure @ Max. System Gain Typical≤5dB
  • V.S.W.R Typical≤2
  • Group Delay ≤1μs
  • Frequency Stability ≤0.01ppm
  • Power Supply Input AC 100~264 V, 50/60 Hz, Output DC 12V/7A
  • Power Consumption ≤24W
  • Impedance 50 ohm

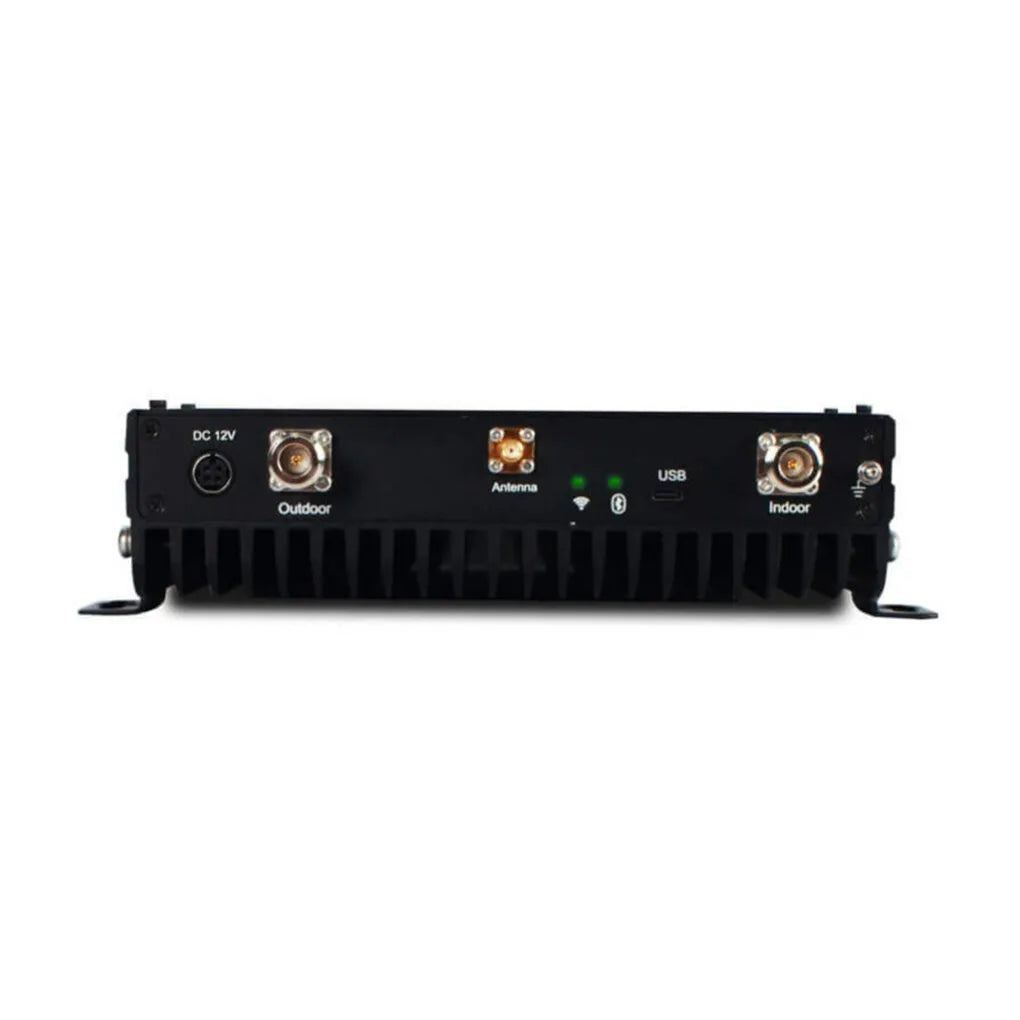

  • I/O port N-Female
  • Dimensions 220*280*55 mm/ 8.7*11*2.2 inch
  • Booster Weight 3.6 KG
  • Booster Kit Weight 5.33 kg
  • Operating Temperature -10ºC~+55ºC
  • Storage Temperature -10ºC~+80ºC
  • Relative Humidity 5% – 95%
  • Barometric Pressure 55 kPa -106 kPa
  • Environment Condition IP40

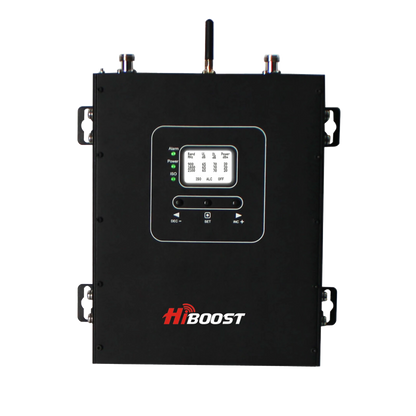

  • LCD Display Frequency, Gain, Output Power, ALC, ISO indicators
