EU-Hiboost

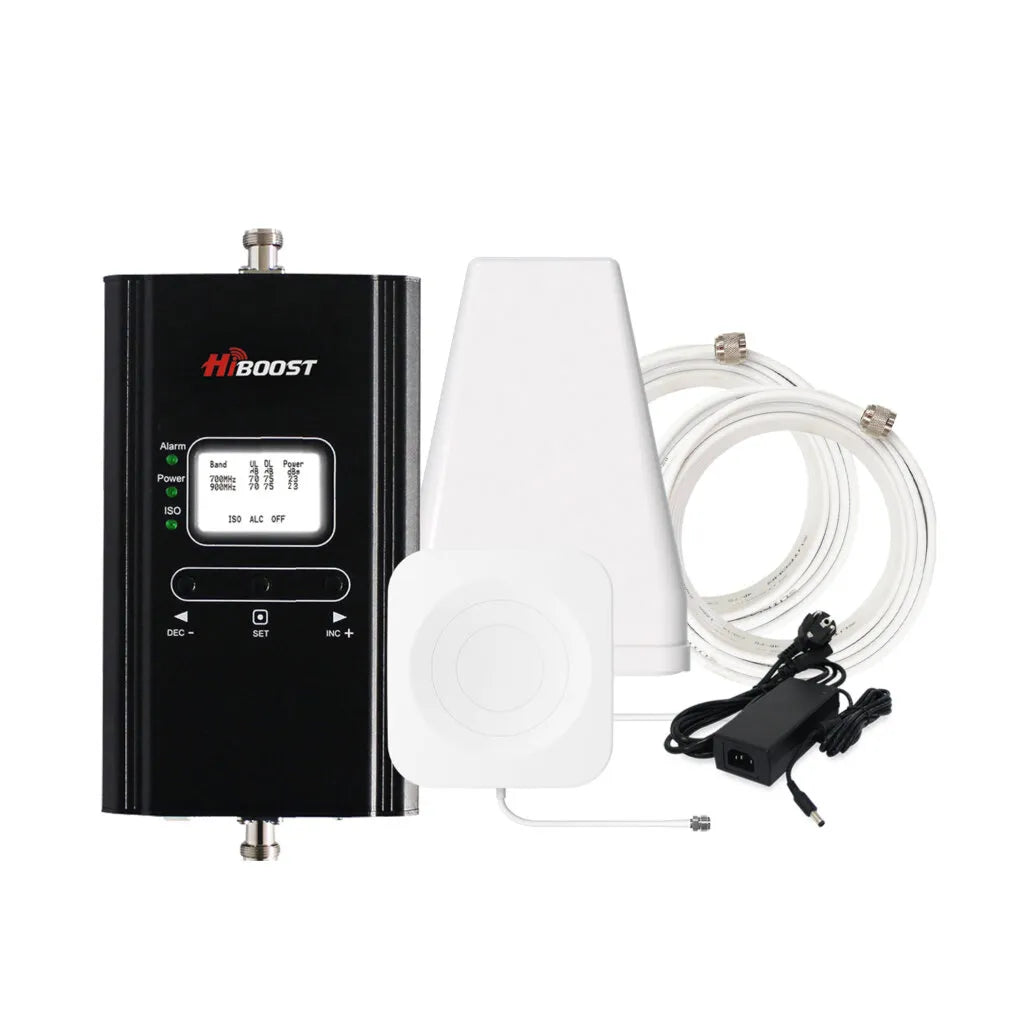

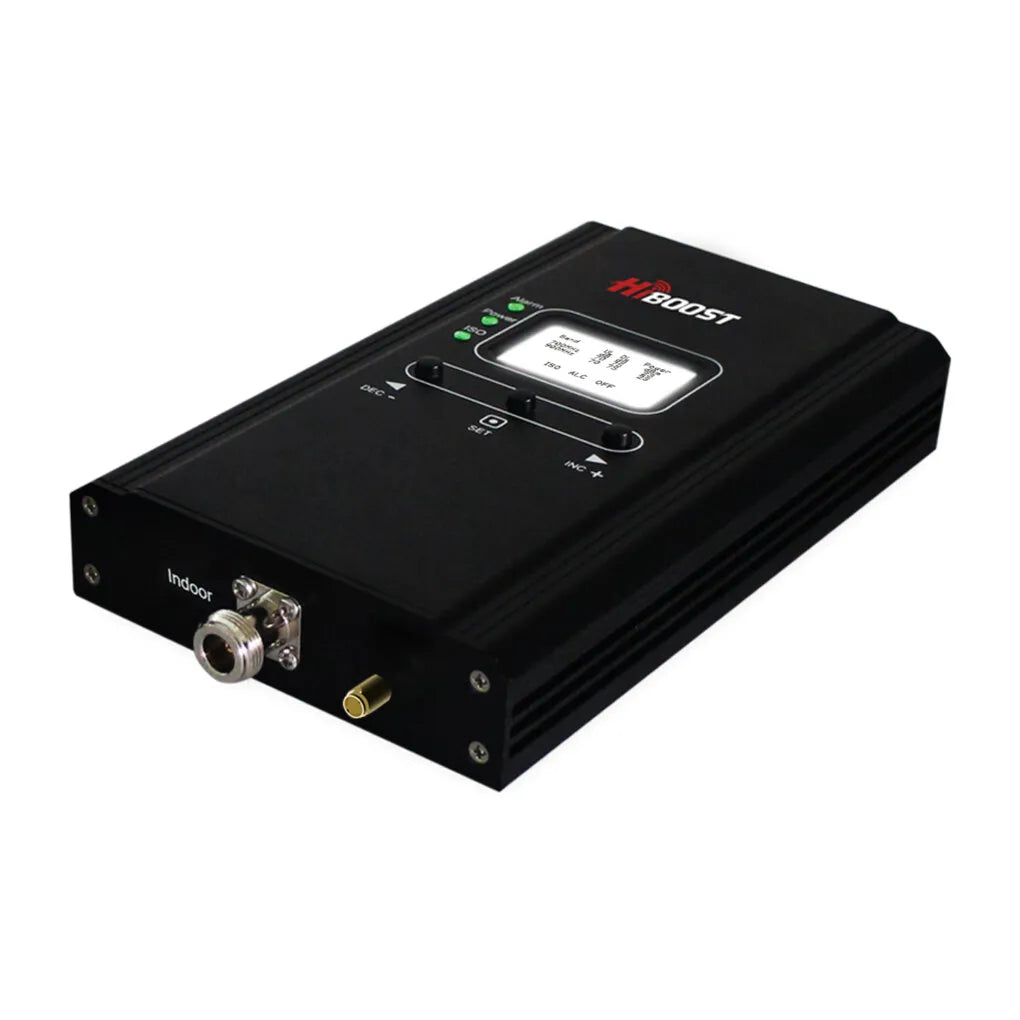

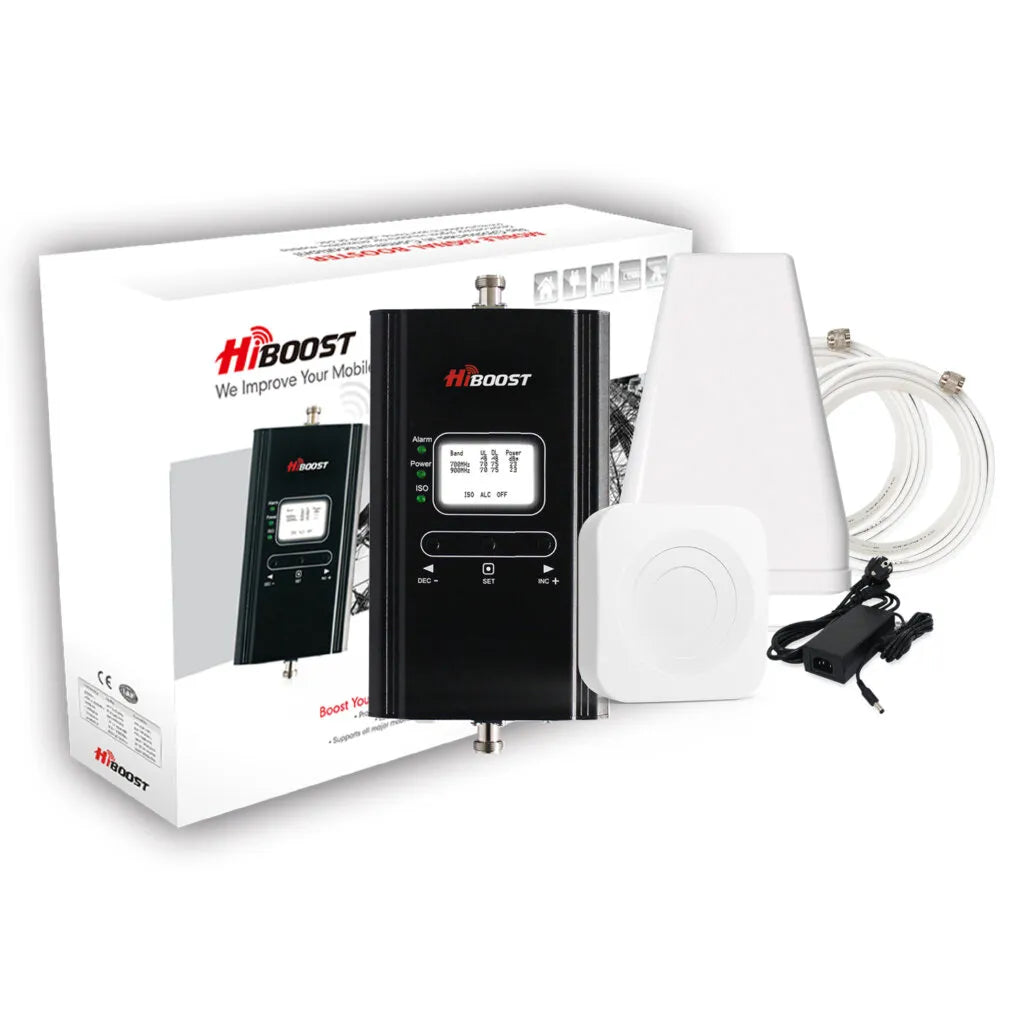

Hi23-ENR700

Hi23-ENR700

Networks : NR700(5G), EGSM900MHz
Coverage : up to 5500 square meters
Max.Gain : 75 dB

  • 5 bar guarantee
  • Smart LCD & auto set up
  • CE RED Certified

    The Hi23-ENR700 cell phone signal booster is a smart and efficient device that will get rid of poor signals once for all! Enjoy smooth calls and 5G network speed in your home or office up to 5500 square meters.
View full details

Enjoy High Quality Signal

HiBoost Hi23-ENR700 signal booster is a smart device that will improve the way you make and receive calls. Combining an innovative auto setup system with a beautiful modern design it will perfectly fit into your home or office.

Obtain mobile signal reception you deserve and stay always reachable!

*Check that you’re able to pick up at least 2-3 bars outside your home/office, so that the HiBoost system could deliver strong signal inside it. The device’s coverage area also depends on design features of your building.

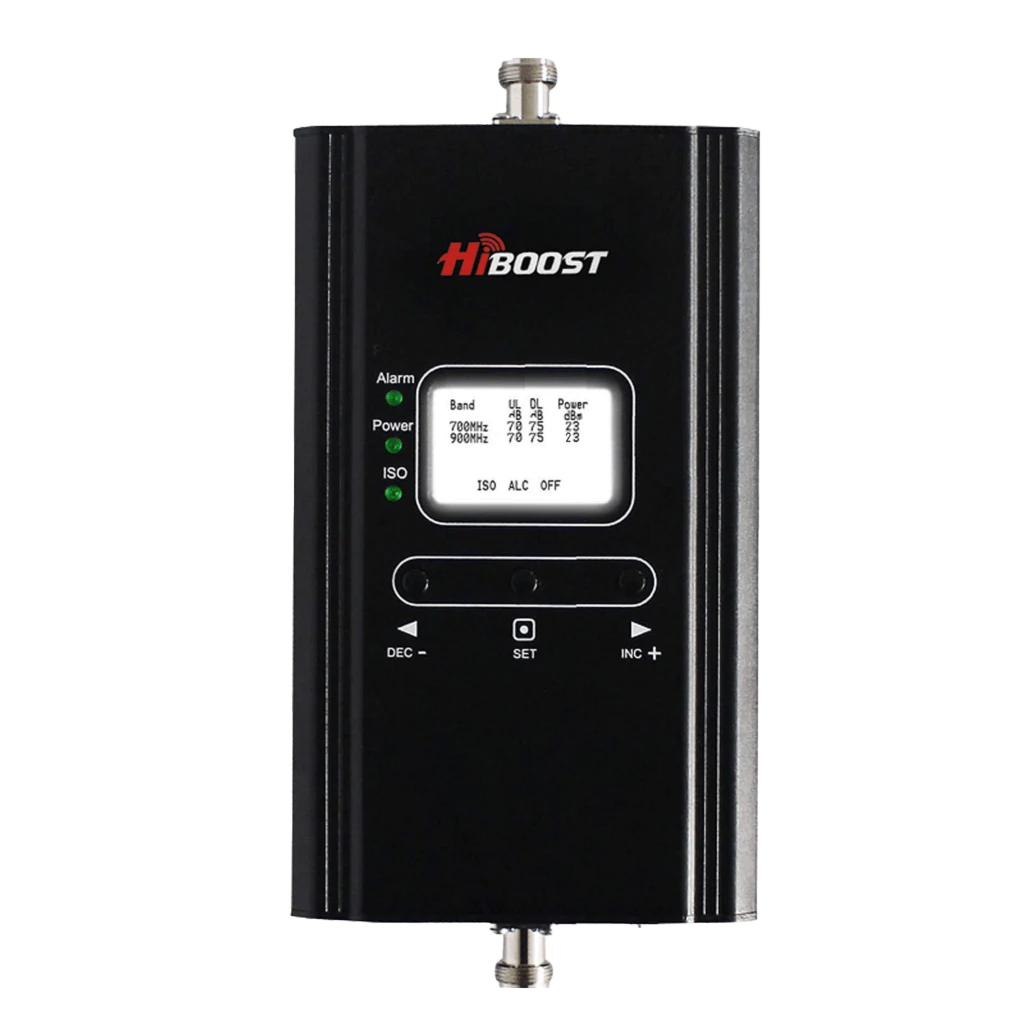

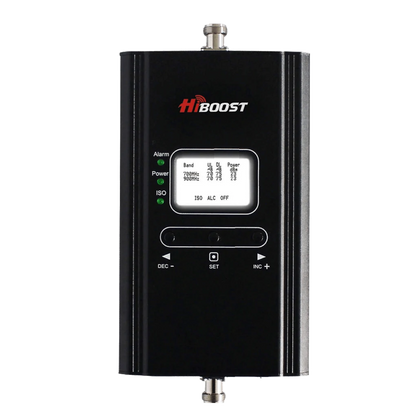

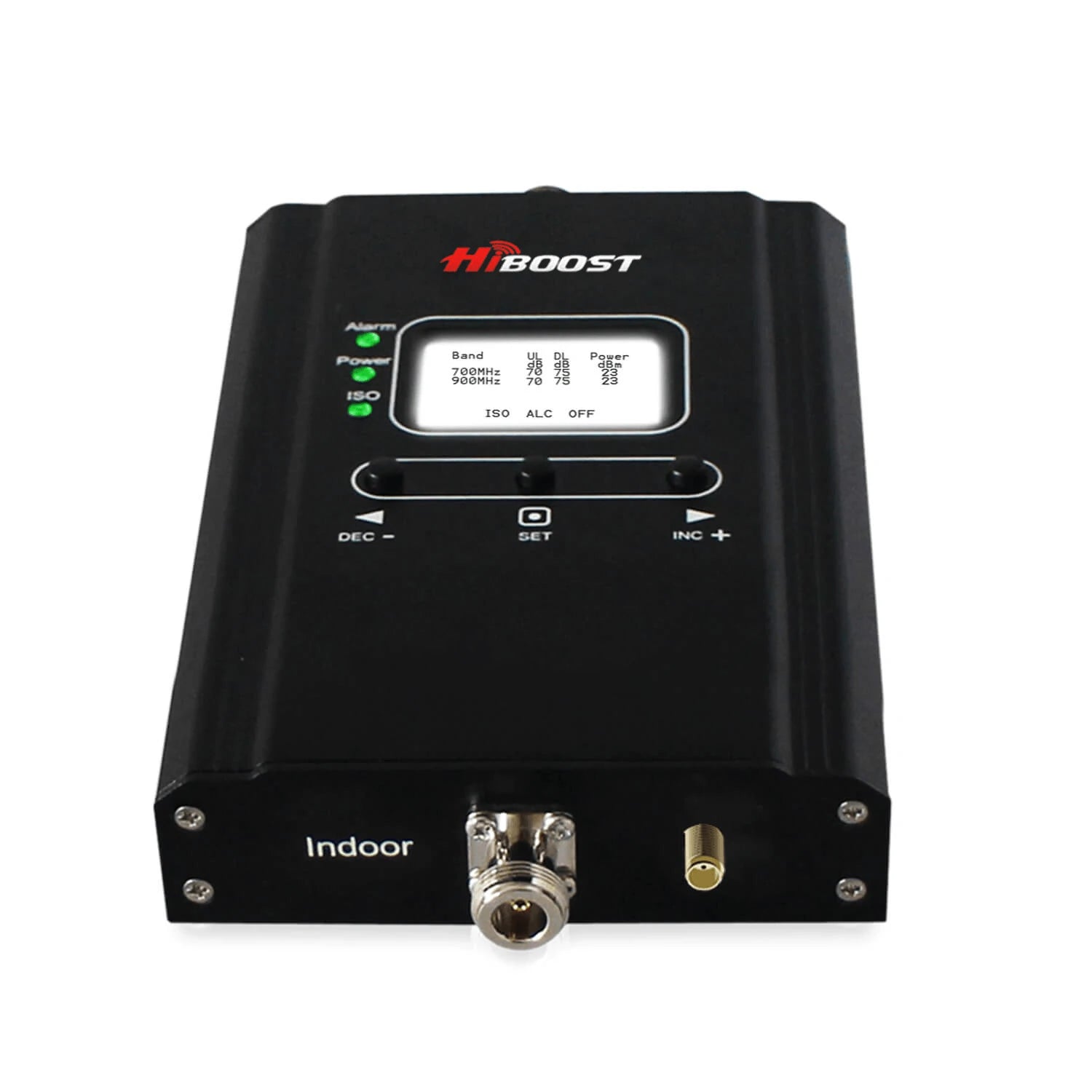

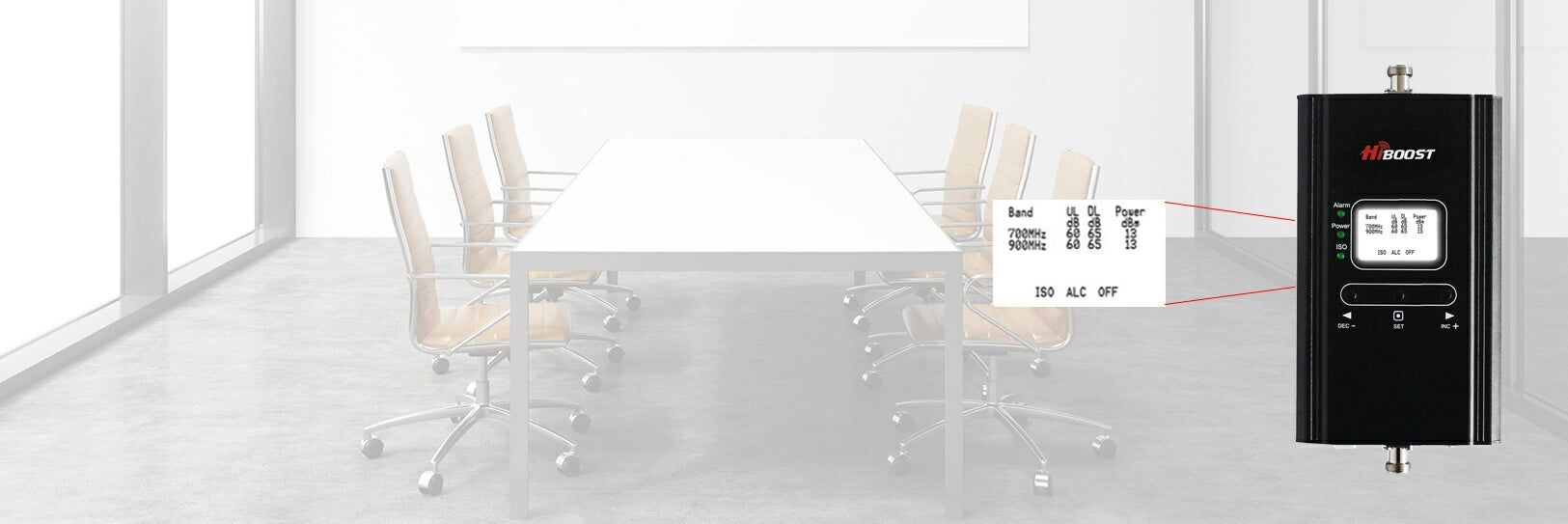

Helpful LCD Display

Real-Time Monitoring

Displays gain, frequency, and output power to let you keep control over the current working state.

Smart Troubleshooting

Detects and shows an exact kind of malfunction (ALC or ISO) giving you the cue what is necessary to fix.

Assistance in Installation

Helps to find best point for outdoor antenna mounting basing on the output power value displayed on the screen.

Hiboost Smart Functions

All HiBoost devices are enabled with smart auto set up and self-oscillation detection, so that you bars get boostered in the best way and your network stays protected.
Automatic Gain Control (AGC)

The booster optimizes its performance according to the outdoor signal strength in your area. If the signal is too strong, the power of signal amplification automatically gets down. This completely avoids the interference with your operator’s network and saves the booster from overload.

Self-Oscillation Detection

Self-oscillation can occur when the booster and antenna are installed too close to each other. The booster automatically detects the problem and reduces booster gain to fix the problem.

Officially Certified Product

HiBoost company and repeaters passed the international and EU certification for a full compliance with quality, health and safety standards (CE RED 2014/53/EU, RoHS, ISO 9001:2023)

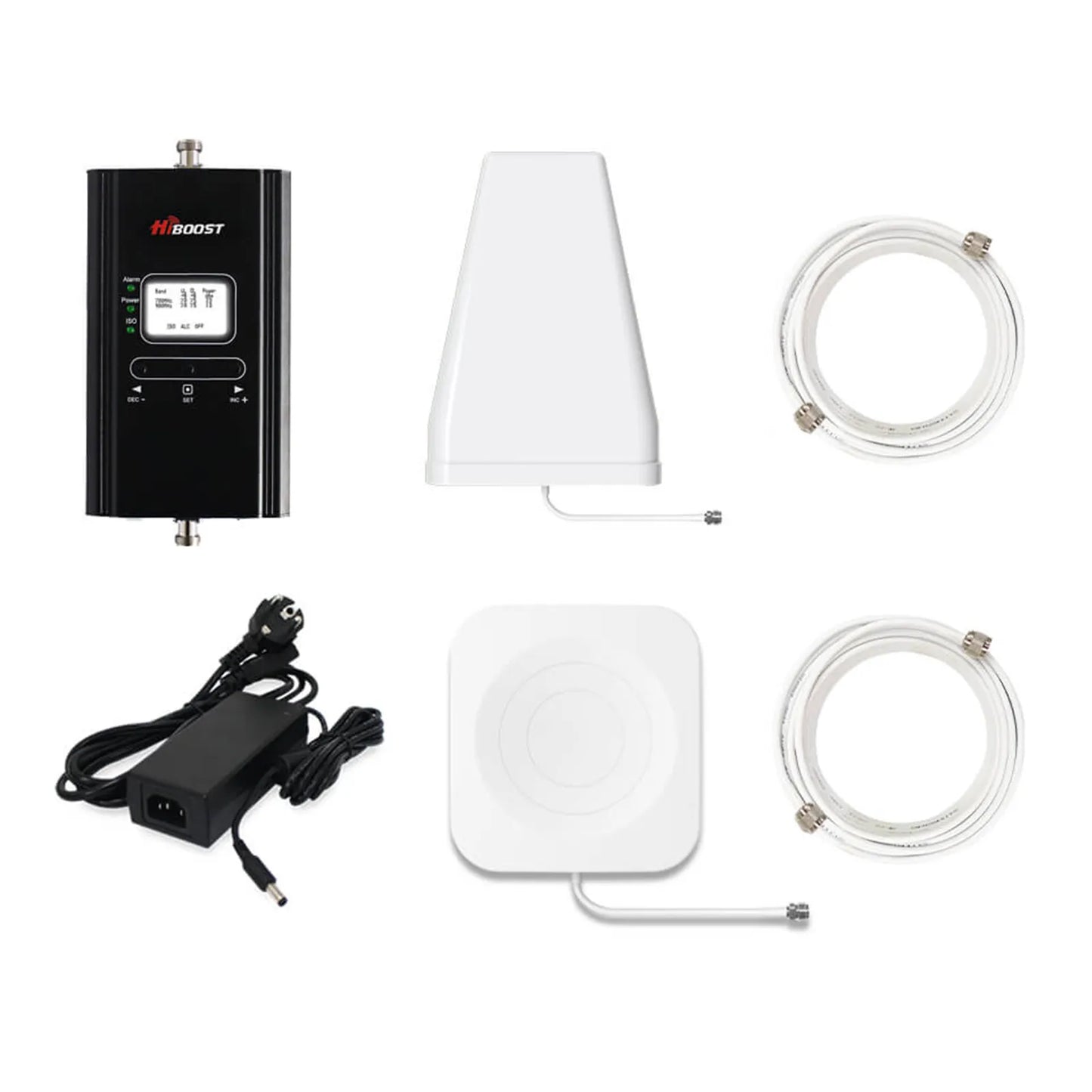

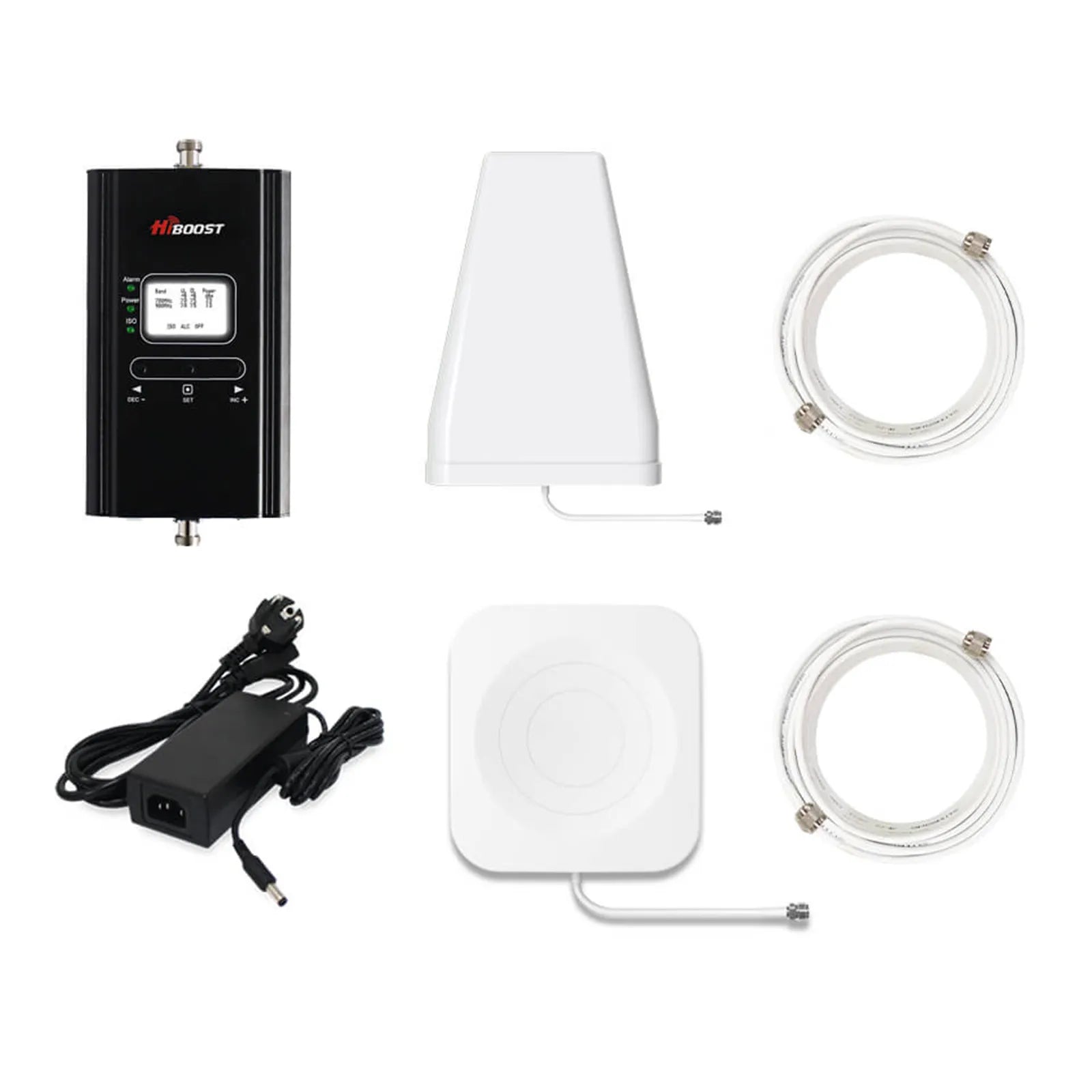

How It Works

1. The outdoor antenna picks up the signal from the nearest cell tower and sends it to the booster.

2. The booster amplifies or literally repeats the signal and transmits it to the indoor antenna.

3. The indoor antenna spreads the enhanced the signal throughout the desired area.

4. This is the moment! Your mobile phone receives a strong signal and you enjoy seamless calls and data!

Tech Specs

  • Working Bands 700,900MHz
  • UL Frequency Range 703-733/880-915
  • DL Frequency Range 758-788/925-960
  • Supported Standards NR700, EGSM
  • Maximum Gain Uplink 70 dB, Downlink: 75 dB
  • Max. Output Power Uplink 20 dBm, Downlink: 23 dBm
  • MGC (Step Attenuation) ≥ 31 db/ 1 db step
  • Intelligent AGC ALC ≥42dB ISO ≥42dB
  • Gain Flatness Typical≤5dB (p-p)
  • Noise Figure @ Max. System Gain Typical≤5dB
  • V.S.W.R Typical≤2
  • Group Delay ≤1μs
  • Frequency Stability ≤0.01ppm
  • Power Supply Input AC 100~240 V, 50/60 Hz, Output DC 12V/3A
  • Power Consumption ≤15W
  • Impedance 50 ohm
  • I/O port N-Female
  • Dimensions 4.7*7.8*1.3 inch/120*198*34mm
  • Booster Weight ≤2.2lbs/1KG
  • Booster Kit Weight 5KG
  • Operating Temperature -10ºC~+55ºC
  • Storage Temperature -10ºC~+80ºC
  • Relative Humidity 5% – 95%
  • Barometric Pressure 55 kPa -106 kPa
  • Environment Condition IP40
  • LCD Display Frequency, Gain, Output Power, ALC, ISO indicators
