EU-Hiboost

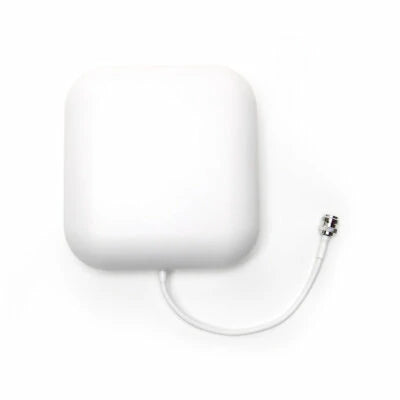

Indoor Panel Antenna

Indoor Panel Antenna

  • Carrier grade design
  • Easy to install & weatherproof
  • Designed for indoor use

    Indoor panel antenna is a directional antenna designed for indoor use and transmitting signal in one direction.
View full details

Extend Your Coverage

This directional panel antenna is designed for indoor use and transmits signal in one direction. The antenna is broadband and covers both 2G, 3G, 4G networks and WLAN systems for GSM, DCS, UMTS and LTE. Thanks to high gain the antenna is suitable for places where the signal needs to be broadcasted over a wide area.

The indoor panel antenna is compatible with all HiBoost mobile signal boosters.

Antenna Key Features

  •  Coverage 698~960/1710~2700MHz Broad band
  •  2G/3G/4G and WLAN systems
  •  Designed for indoor use
  •  5-7 dBi gain

Tech Specs

  • Frequency Range 698-806/806-960/1710-2700 MHz
  • Gain 5±0.5/6±0.5/7±0.5dBi
  • Polarization Vertical
  • Horizontal Beamwidth 80° /80° /65°
  • Vertical Beamwidth 73° /70°/60°
  • Front-To-Back Ratio > 8/> 10/> 15
  • VSWR ≤ 1.8
  • Input Impedance 50Ω
  • PIM, 3rd Order, 2 x 2 W -140dBc
  • Maximum Input Power 50 W
  • Weight 0.38 KG
  • Mounting Kit On-wall
  • Lighting Protection DC Ground
  • Connection Type N-Female
  • Dimension 180*170*60mm
  • Color White
  • Operating Temperature -10ºC~+55ºC
