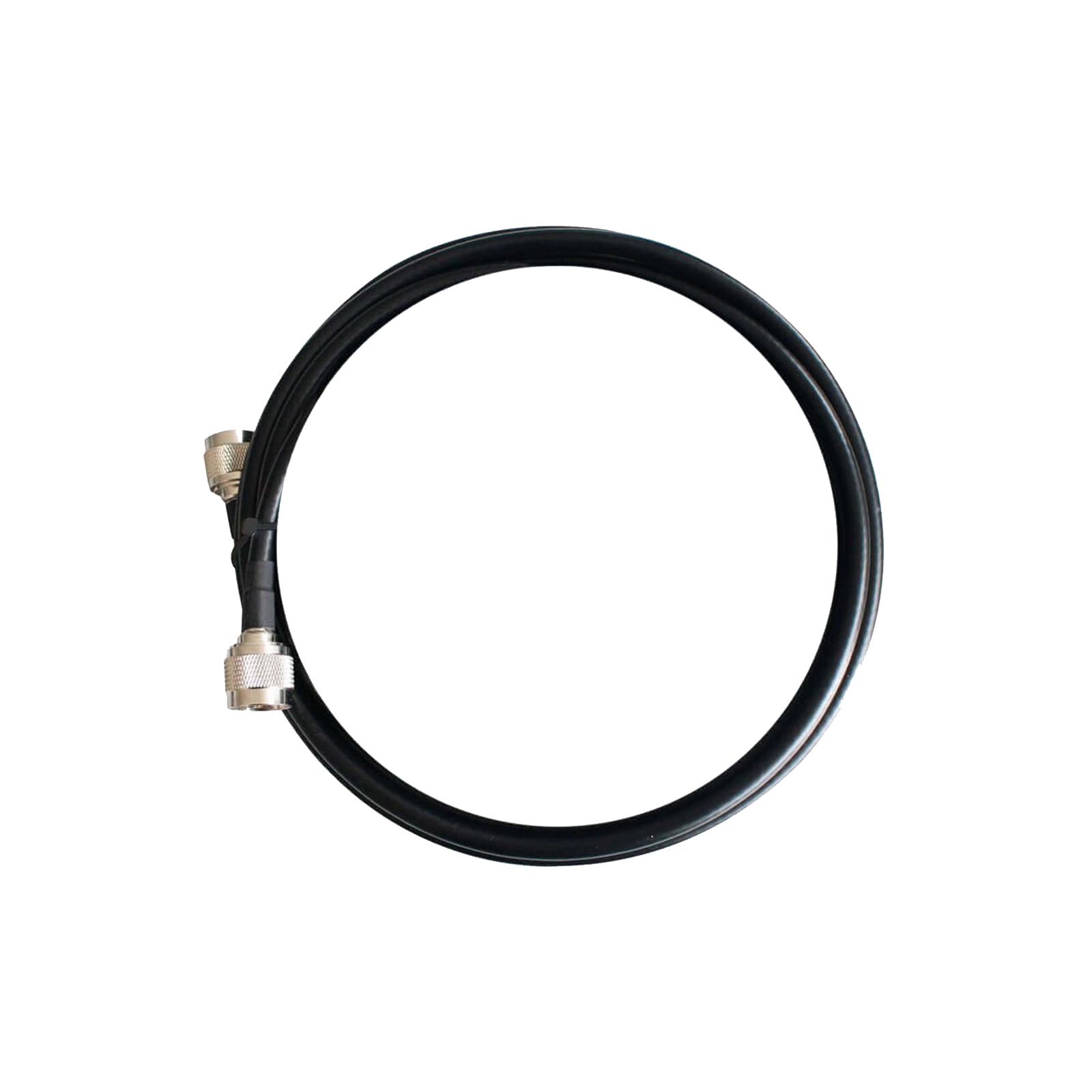

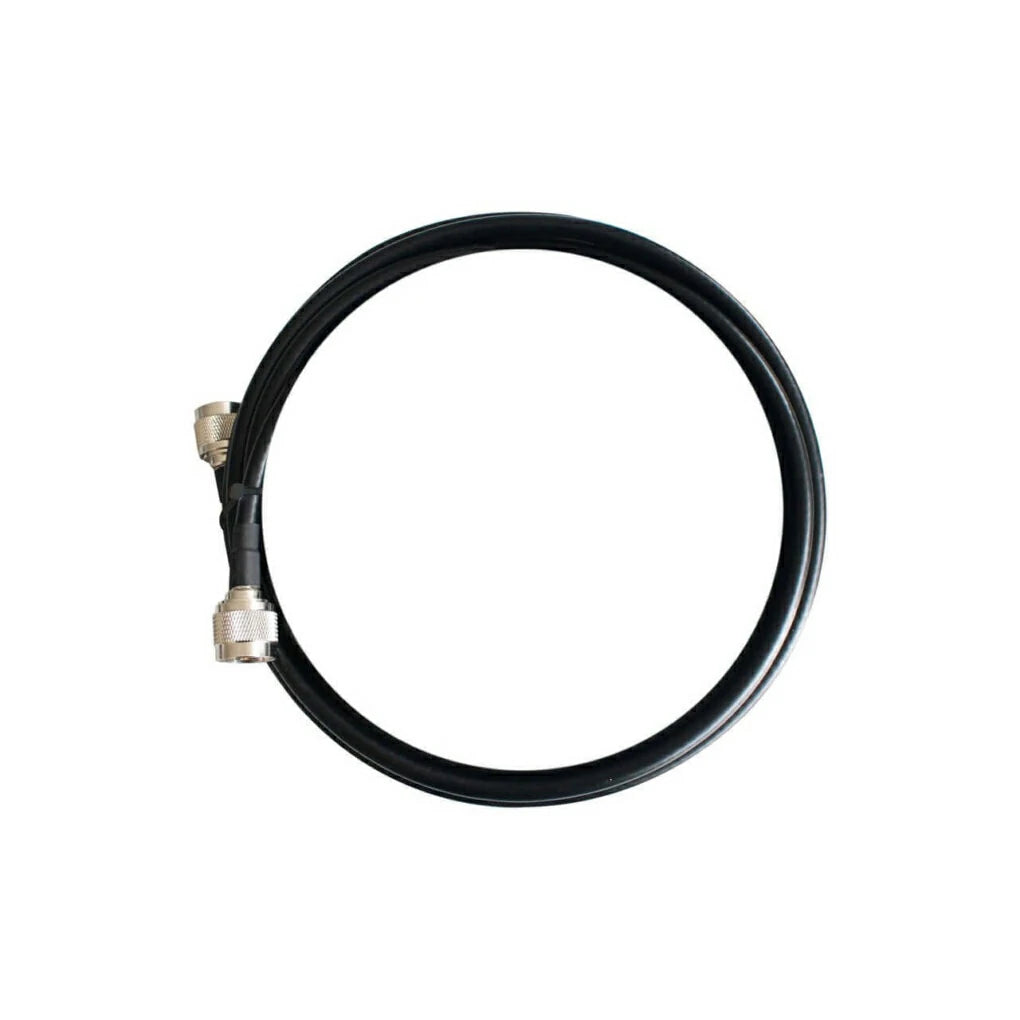

1m HiBoost 200 Coaxial Cable

1m HiBoost 200 Coaxial Cable

  • 1m length
  • N-Male connectors
  • Frequency range 0-6 GHz

    A coaxial 3D-FB cable is mainly used for radio frequency signal transmission. The length is 1 m, the working frequency range is 0-6 GHz.
View full details

Carrier Grade Design

A coaxial 3D-FB cable is mainly used for radio frequency signal transmission. The length is 1 m, working frequency range is 0-6 GHz. Maintain a reliable weatherproof system with industry standard Type-N connectors!

NOTE:: Mind, that too long cable for the booster kit will decrease signal enhancement power of the system. We highly recommend to consult our Technical experts before purchasing an additional cable.

Cable Key Features

  •  Low loss
  •  Light, flexible and weatherproof
  •  Low transmission delay
  •  Minimum attenuation

Tech Specs

  • Inner Conductor BC
  • Conduct Dia. 1.12+/-0.02mm
  • Min. Break Strength 453N
  • Insulation Foam P.E
  • Insulation Dia. 2.95+/-0.15mm
  • Color Neutral
  • Centricity ≥85%
  • Adhesion 10 to 100N@25mm
  • Shielding AL/P-Foil(Bonded)
  • Foil overlap ≥120%
  • Outer conductor TC Wire Braid
  • Coverage 90+/-3%
  • Jacket FR-PVC
  • Outer Dia. 4.95 +/-0.15mm
