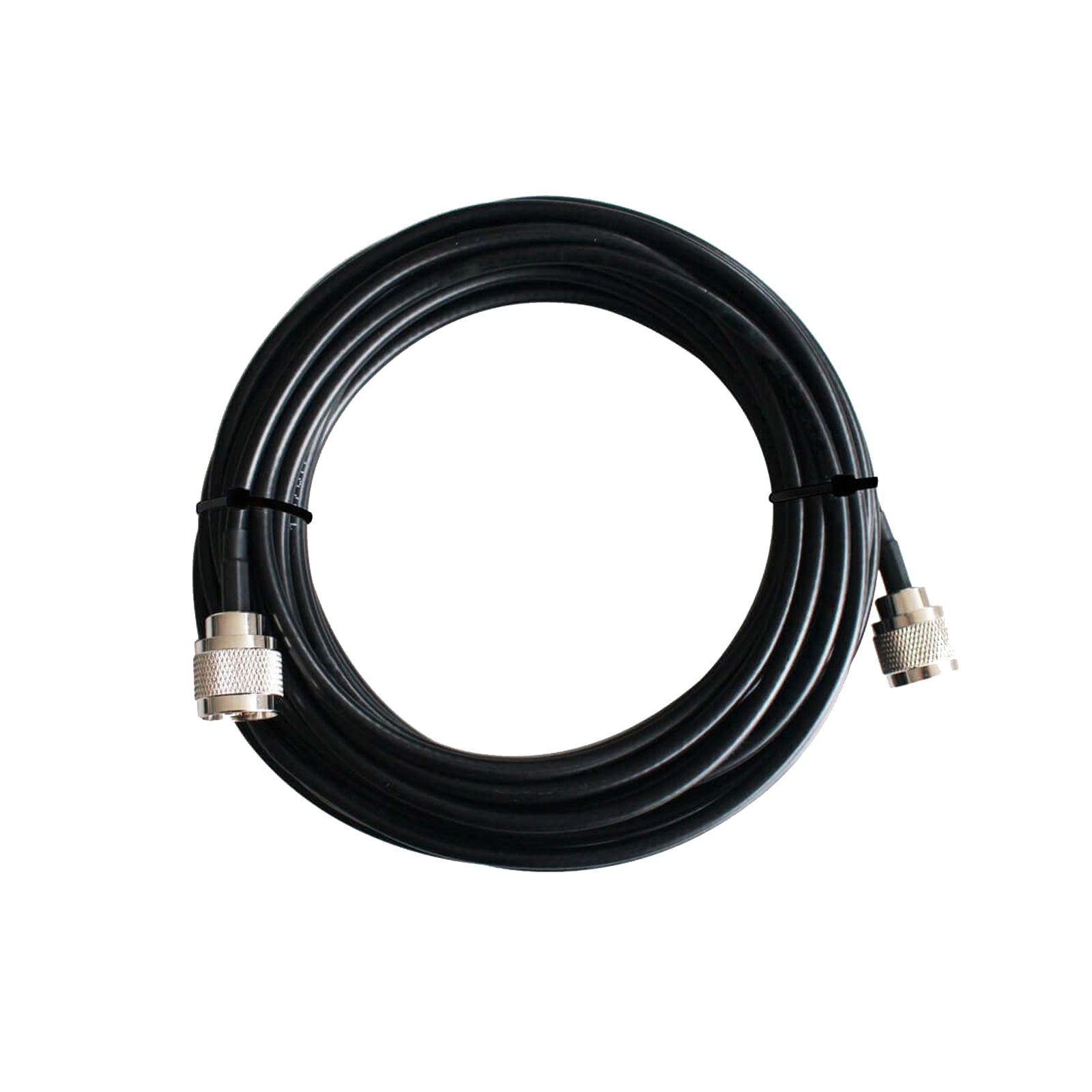

20m HiBoost 300 Coaxial Cable

20m HiBoost 300 Coaxial Cable

  • 20 m/ 66 ft length
  • N-Male connectors
  • Frequency range 0-6 GHz

    HiBoost 300 5D-FB is a high power coaxial cable of 20 m (66 ft) length, used to transmit radio frequency (RF) signal. The cable is full band and it supports a frequency range 0-6 GHz.
View full details

Maintain a Reliable System

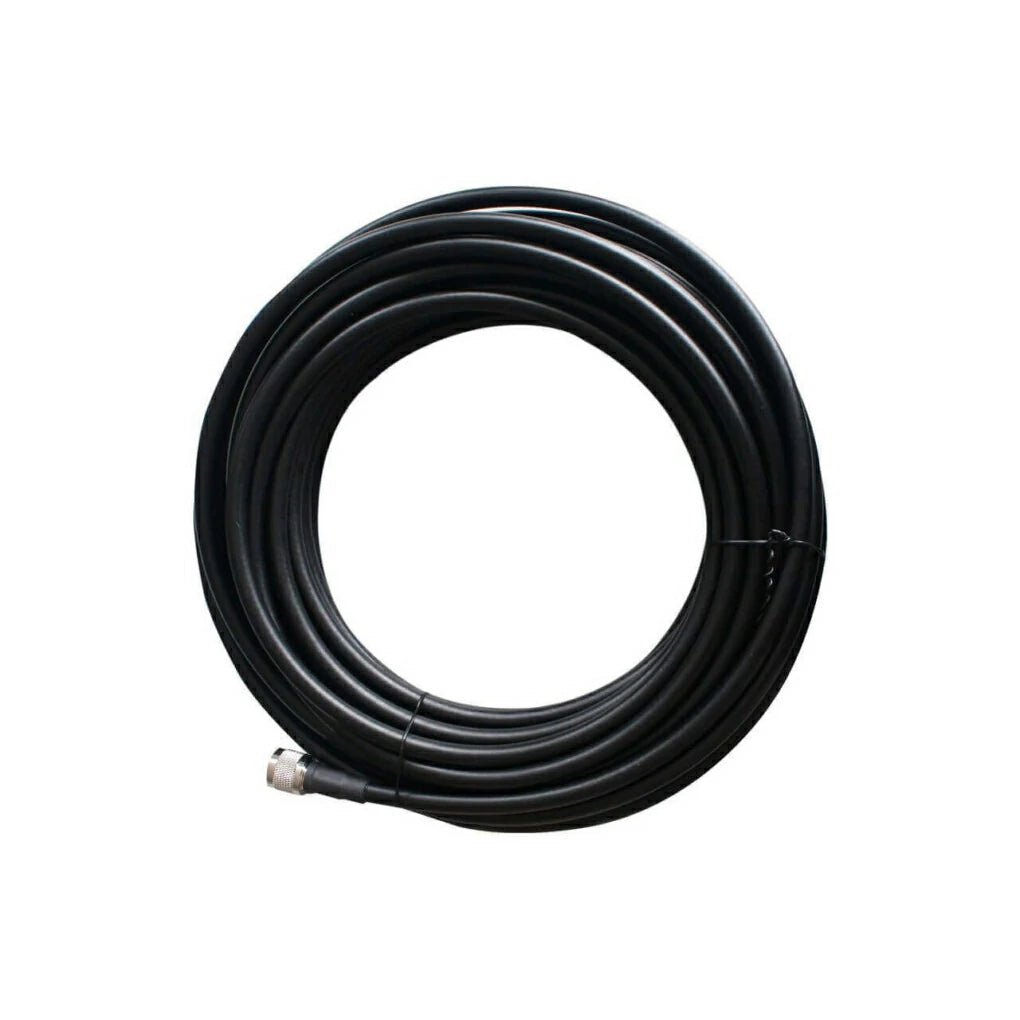

66ft/20 m HiBoost300 is 5D-FB low-loss cable with standard carrier grade N-Male connectors on both ends. It is used to transmit radio frequency (RF) signal and is preferable for high-power (PRO series) HiBoost mobile signal boosters.

PLEASE NOTE: If you use a cable, which is longer than the one from your kit, mind that your booster can lose power and provide worse mobile signal amplification. Contact our Professional Tech Team before buying an additional cable.

Cable Key Features

  •  Low loss
  •  Light, flexible and weatherproof
  •  Low transmission delay
  •  Minimum attenuation

Tech Specs

  • Inner Conductor Copper Clad Aluminum 1.80 mm
  • Insulation Layer Foam Polyethylene(FPE) 5.00 mm
  • Outer Conductor Aluminum Tape and Aluminum Magnesium Alloy Braiding 5.60 mm
  • Jacket Polyviny1 Chloride(PVC) 7.50 mm
  • Characteristic Impedance (ohm) 50
  • Rated Capacitance(pF/m) 81
  • Velocity of Propagation(%) 82
  • Operating Frequency 1~6000 MHz
  • Operating Temperature(℃) -25~+70
  • Minimum Bending Radius 75mm
  • VSWR 1~3000MHz≤1.20
  • Frequency(MHz) Attenuation(dB/100m)
  • 400 13.0
  • 900 23.7
  • 1500 26.8
  • 1800 29.7
  • 2000 31.5
  • 2500 35.8
  • 3000 40.6
  • 6000 66.5
